Leybold DIVAC 1.4 HV3C - NEW
Call for Price
| Weight | 19 lbs |
|---|---|
| Motor Power | 0.18 hp |
| Pumping Speed | 1.3 m3/h |
| Ultimate Pressure | 1.50 x 100 torr |

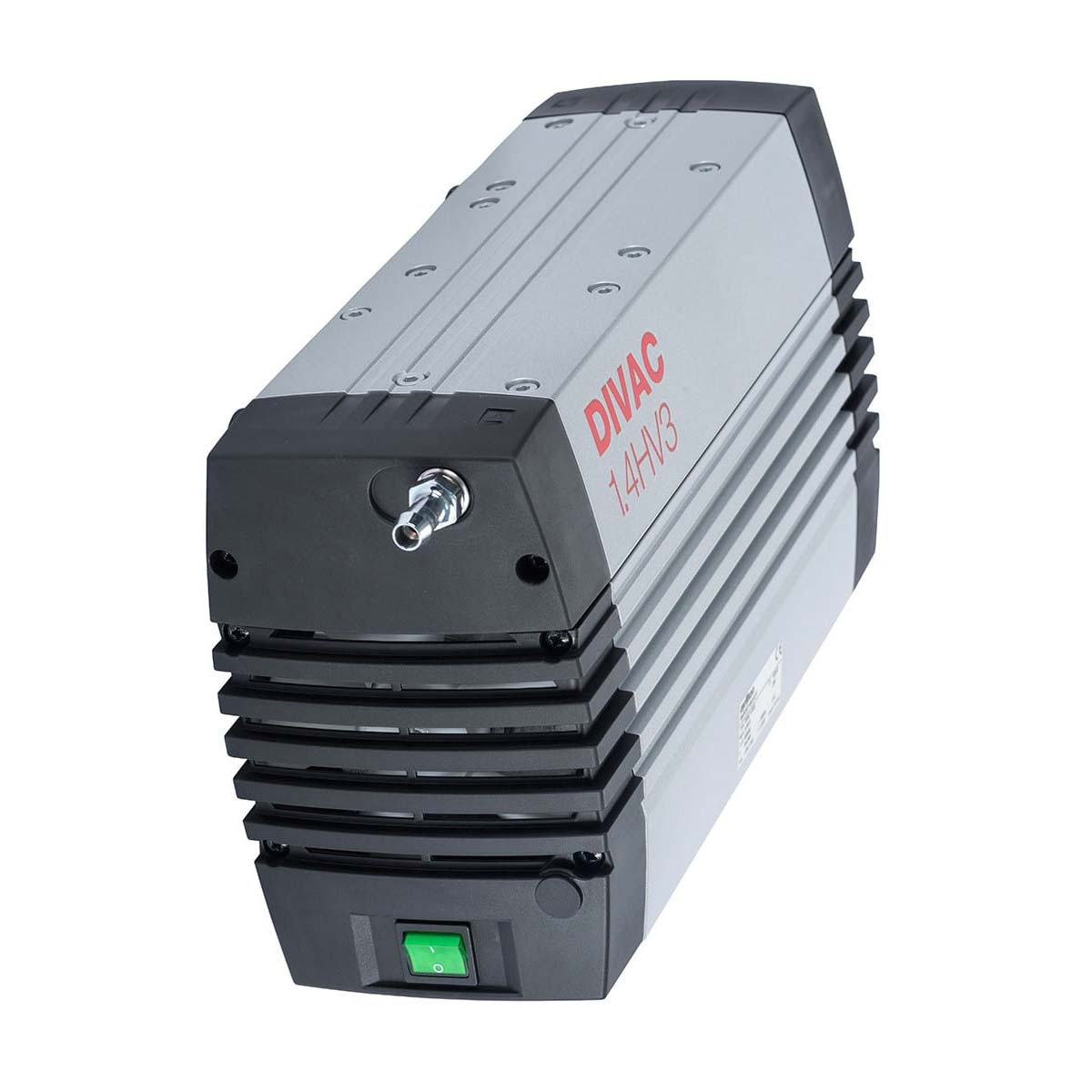

Leybold DIVAC 1.4 HV3C Dry Diaphragm Vacuum Pump - NEW
The DIVAC 1.4 HV3C is a three-stage diaphragm pump capable of resisting chemicals and offering an improved pumping performance. Its speed is infinitely variable from 700 to 1,600 rpm so that he pumping speed of the pump can be easily adapted to differing requirements. The built-in textured diaphragm is made of EPDM and has been coated with PTFE. The valves are made of KALREZ thereby ensuring excellent resistance also in connection with aggressive gases. Owing to the three-stage design, pressures of 2 mbar can be attained very easily.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet connection | Hose nozzle ID 10, G 1/8" Inside thread | |
| Outlet connection | Hose nozzle ID 10, G 1/8" Inside thread | |
| Pumping speed | 1.3 m3/h | 0.77 cfm |
| Ultimate pressure | ≤ 2.0 mbar | ≤ 1.5 Torr |
| Max. outlet back pressure | 1,500 mbar | 1,125 Torr |
| Noise level | 48 dB(A) | |
| Mains connection | 1-phase, 90-230 V, 50/60 Hz | |
| Motor rating | 135 W | |
| Motor rating at ultimate pressure | 35 W | |
| Rotation speed | 700-1,600 min-1 | 700-1,600 rpm |
| Motor protection rating | IP 20 | |
| Admissible gas inlet temperature | +5 to +40°C | +41 to +104°F |
| Admissible ambient temperature | +5 to +40°C | +41 to +104°F |
| Weight | 8.6 kg | 19.0 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Dry Compressing Vacuum Pumps - NEW | Excerpt / Catalog Part | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold DIVAC 1.4 HV3C Dry Diaphragm Vacuum Pump - NEW Part # 13520V
