Leybold DRYVAC DV 450 - NEW
Call for Price
In stock
SKU
NEW_DV450
| Weight | 1,367 lbs |
|---|---|
| Motor Power | 17.4 hp |
| Pumping Speed | 450 m3/h |
| Ultimate Pressure | 3.8 x 10-3 Torr |

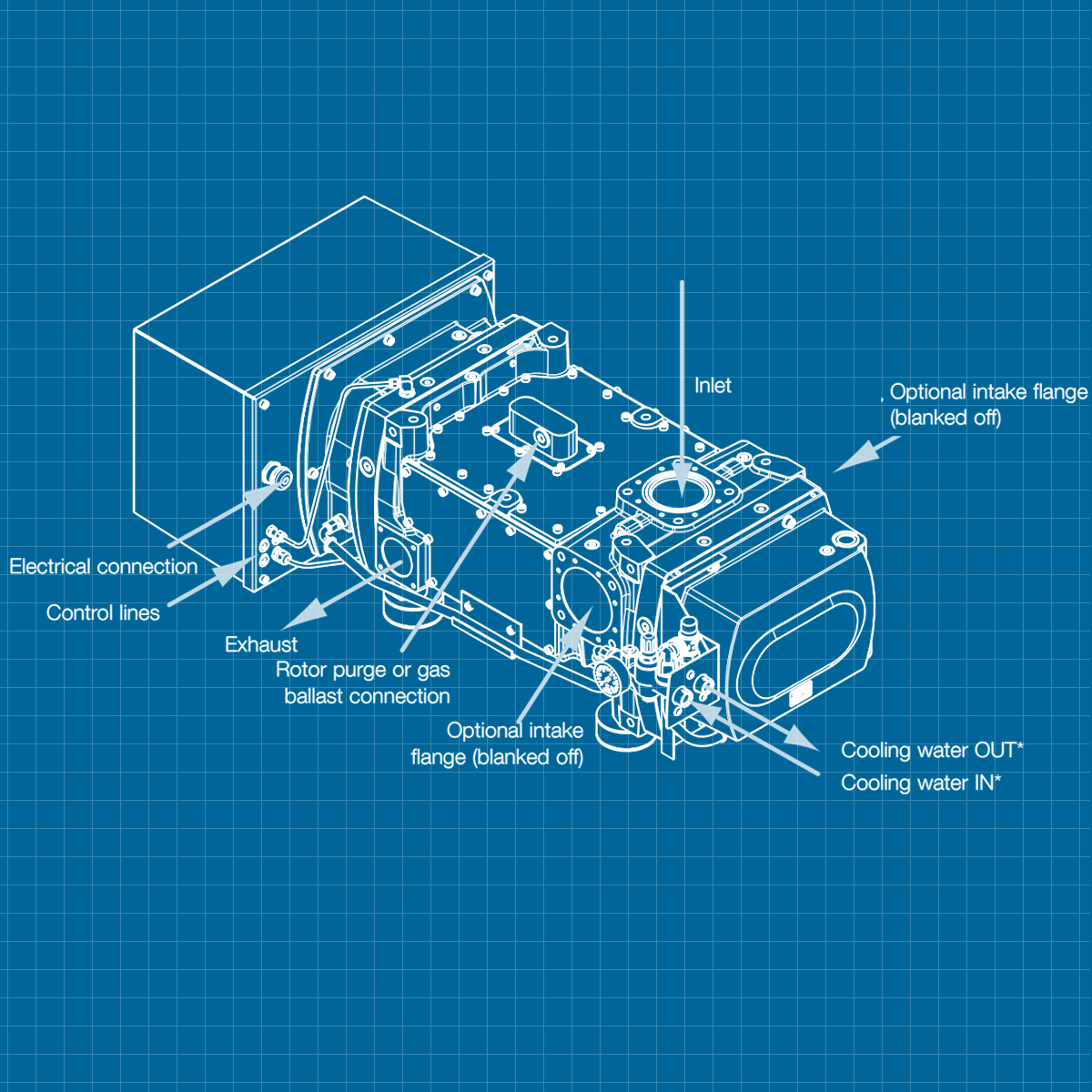

Leybold DRYVAC DV 450 Dry Vacuum Pump - NEW
The DRYVAC is a family of dry compressing vacuum pumps. Depending on the application the pumps are available with various equipment components. The DRYVAC series specially is developed for photovoltaic, display and process industry applications. All versions of the DRYVAC family are water cooled, very compact and can simply be mounted to various vacuum systems, so particularly with regard to the well-proven RUVAC WH, WS and WA series.
- Inlet connection: DN 100 ISO-K
- Outlet connection: DN 63 ISO-K
- Pumping speed: 450 m3/h
- Ultimate pressure: 5 x 10-3 mbar
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet Connection | DN 100 ISO-K |
| Outlet Connection | DN 63 ISO-K |
| Max Pumping Speed | 450 m3/h |
| Ultimate total pressure w/o gas ballast | 5.0 x 10-3 mbar / 3.8 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast | 5.0 x 10-2 mbar / 3.8 x 10-2 Torr |
| Water Vapor Tolerance | ≥ 60.0 mbar / ≥ 45.0 Torr |
| Water Vapor Capacity | 15.0 kg/h |
| Operating fluid gear box | Leybonol LVO 120 |
| Operating Fluid Capacity | 1.2 l |
| Noise Level with silencer | 67 db(A) |
| Noise Level with exhaust pipe | 65 db(A) |
| Cooling water consumption | 360 l/h |
| Permissable cooling water pressure | 3 - 7 bar |
| Permissable cooling water temperature | +5 to +35°C |
| Cooling water consumption | G 1/2", inside thread |
| Mains connection | 3-ph, 380-480V, 50/60 Hz |
| Motor Rating | 13.0 kW / 17.4 hp |
| Power consumption at ultimate pressure | ≤ 5.3 kW / ≤ 7.1 hp |
| Motor protection rating | IP 54 |
| Admissible ambient temperature | +5 to +50°C |
| Weight | 620 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Dry Compressing Vacuum Pumps - NEW | Excerpt / Catalog Part | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold DRYVAC DV 450 Dry Vacuum Pump - NEW DRYVAC DV 450 Part no. 112045V15-1 Pumping speed: 450 m3/h Ultimate pressure: ≤ 5 x 10-3 mbar Operation with int. frequency converter: 380-480 V, 50/60 Hz Operating fluid: LEYBONOL LVO 210 DRYVAC DV 450 S Part no. 112045V20-1 Pumping speed: 450 m3/h Ultimate pressure: ≤ 5 x 10-3 mbar Operation with int. frequency converter: 380-480 V, 50/60 Hz Operating fluid: LEYBONOL LVO 410 DRYVAC DV 450 C Part no. 112045V30-1 Pumping speed: 450 m3/h Ultimate pressure: ≤ 5 x 10-3 mbar Operation with int. frequency converter: 380-480 V, 50/60 Hz Operating fluid: LEYBONOL LVO 410
