Leybold DRYVAC DV 650 - REBUILT

Name: Leybold DRYVAC DV 650 - REBUILT
Brand: Leybold
SKU: REBUILT_DV650C

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_DV650C

Request For Quote

Weight	1,190 lbs
Motor Power	20 hp
Pumping Speed	650 m³/h
Ultimate Pressure	5 x 10^-3 mbar

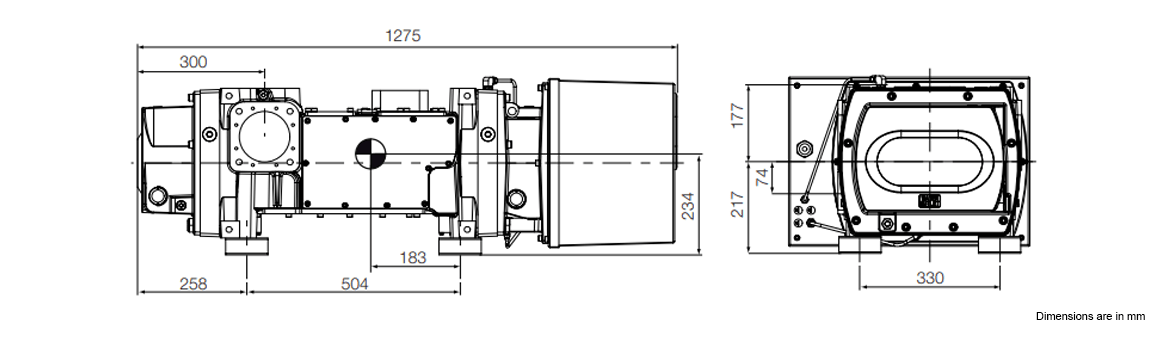

Dimensions

Description

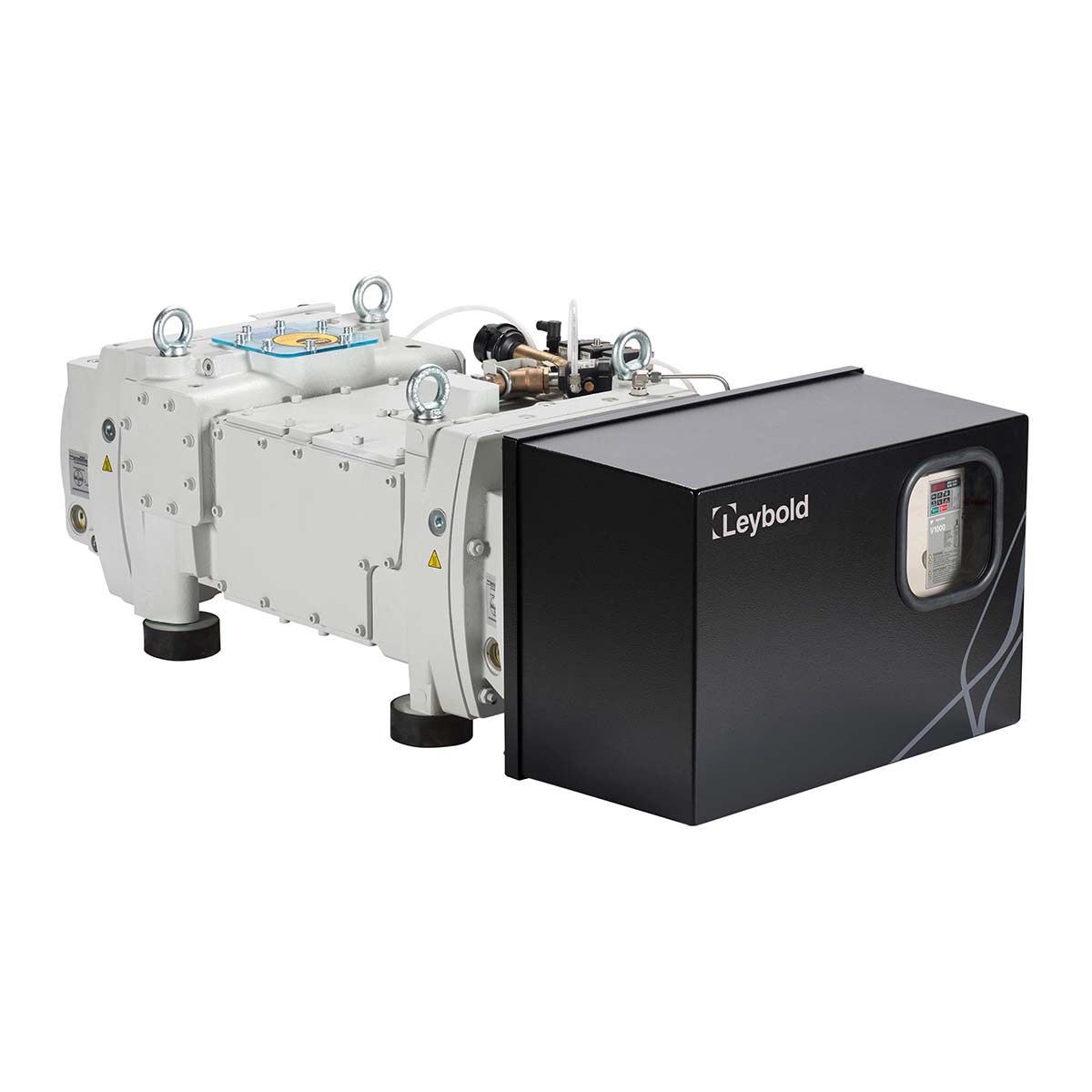

Leybold DRYVAC DV 650 C Dry Vacuum Pump - REBUILT

The DRYVAC is a new family or dry compressing vacuum pumps. Depending on the application the pumps are available with various equipment components. The DRYVAC series specially is developed for photovoltaic, display and process industry applications. All versions of the DRYVAC family are water cooled, very compact and can simply be mounted to various vacuum systems, so particularly with regard to the well-proven RUVAC WH, WS and WA series.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

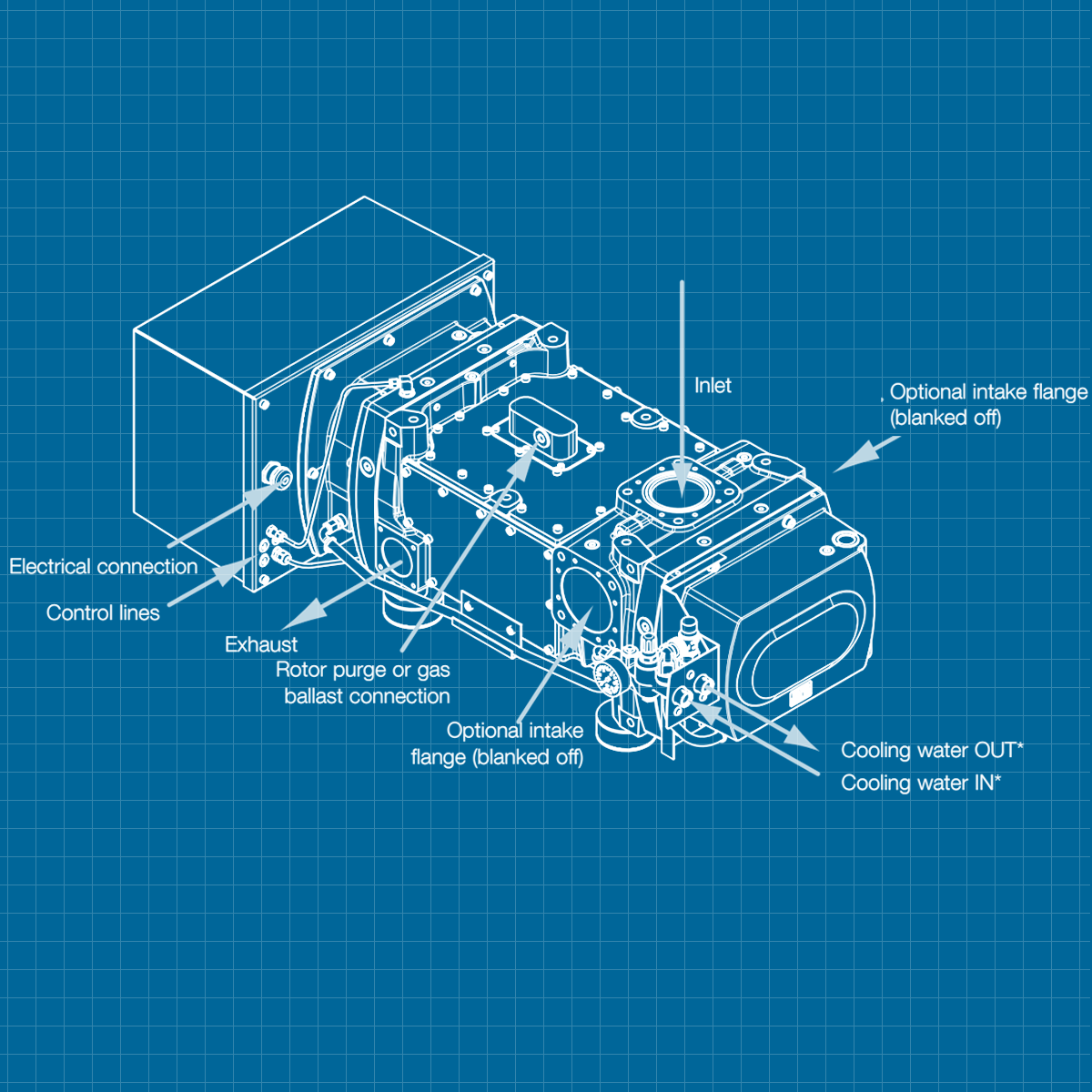

Inlet Connection	DN 100 ISO-K
Outlet Connection	DN 63 ISO-K
Max Pumping Speed	650 m³/h
Ultimate total pressure w/o gas ballast	5.0 x 10^-3 mbar / 3.8 x 10^-3 Torr
Ultimate total pressure w/ gas ballast	5.0 x 10^-2 mbar / 3.8 x 10^-2 Torr
Water Vapor Tolerance	≥ 60.0 mbar / ≥ 45.0 Torr
Water Vapor Capacity	25.0 kg/h
Operating fluid gear box	Leybonol LVO 120
Operating Fluid Capacity	1.2 l
Noise Level with silencer	67 db(A)
Noise Level with exhaust pipe	65 db(A)
Cooling water consumption	450 l/h
Permissable cooling water pressure	3 - 7 bar
Permissable cooling water temperature	+5 to +35°C
Cooling water consumption	G 1/2", inside thread
Mains connection	3-ph, 380-480V, 50/60 Hz
Motor Rating	15.0 kW / 20.0 hp
Power consumption at ultimate pressure	≤ 7.0 kW / ≤ 9.4 hp
Motor protection rating	IP 54
Admissible ambient temperature	+5 to +50°C
Weight	540 kg / 1190 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold DRYVAC DV Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold DRYVAC DV 650 Dry Vacuum Pump - REBUILT

DRYVAC DV 650 S
Part no. 112065V31
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410

DRYVAC DV 650 LVO 210 (Industrial) Double purge and air-gasballast
Part no. 112065V15-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 210

DRYVAC DV 650 LVO 210 (Industrial) Triple purge
Part no. 112065V17-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 210

DRYVAC DV 650 S
Part no. 112065V20-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410

DRYVAC DV 650 S
Part no. 112065V25-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410

DRYVAC DV 650 C
Part no. 112065V30-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410

DRYVAC DV 650 C-i
Part no. 112065V45-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410

DRYVAC DV 650 C-r 200 V
Part no. 112065V35-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with ext. frequency converter: 200 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410

DRYVAC DV 650 C-r 400 V
Part no. 112065V36-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with ext. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410

DRYVAC DV 650-r
Part no. 112065V05-1
Pumping speed: 650 m³/h
Ultimate pressure: ≤ 5 x 10^-3 mbar
Operation with ext. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 210
