Leybold NOVADRY ND65 - NEW

Name: Leybold NOVADRY ND65 - NEW
Brand: Leybold
SKU: NEW_ND65

Be the first to review this product

Call for Price

In stock

SKU

NEW_ND65

Request For Quote

Weight	187 lbs
Motor Power	1.5 kW
Pumping Speed	63 m³/h
Ultimate Pressure	< 0.01 mbar

Description

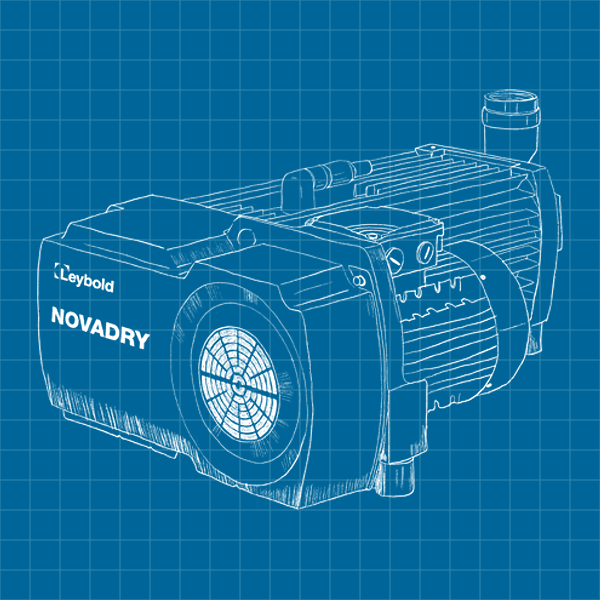

Leybold NOVADRY ND65 Industrial Dry Vacuum Pump - NEW

Leybold's NOVADRY ND65 screw vacuum pump offers maximum robustness with a longer service life. The NOVADRY ND65 works 100% without oil and is therefore absolutely harmless for food production.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

NOVADRY	ND65	ND100	ND160	ND200
Max. pumping speed	63 m³h	96 m³h	138 m³h	175 m³h
Ultimate pressure w/out gas ballast w/ gas ballast	< 0.01 mbar < 0.1 mbar
Max. permissible inlet pressure	1,050 mbar
Max. permissible outlet pressure (rel. to ambient)	200 mbar
Water vapor tolerance w/ gas ballast	60 mbar
Water vapor capacity w/ gas ballast	1.9 kg/h	2.9 kg/h	5.2 kg/h	6.9 kg/h
Noise level (w/ built-in silencer) at ultimate pressure (50/60 Hz)**	67/70 dB(A)		70/73 dB(A)
Permissible ambient temperature	0 to +40°C
Rated motor power	1.5 kW	2.2 kW	3.0 kW	4.0 kW
Protection class	IP55
Inlet / outlet connection	G 2" (In) / G 1 1/2" (Out)
Weight, approx.	85 kg	95 kg	105 kg	115 kg

**According to DIN EN ISO 2151

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold NOVADRY ND65 Industrial Dry Vacuum Pump - NEW

111065N10  50Hz, 200/400V, +/- 10%, 3-phase
111065N11  60Hz, 230/460V, +/- 10%, 3-phase
111065N21  60Hz, 200/380V, +/- 10%, 3-phase
