Leybold RUTA W 1001 / D 65 B - NEW
| Weight |
1014 lbs |
| Motor Power |
8.4 hp |
| Pumping Speed |
620 m3/h |
| Ultimate Pressure |
< 1.5x 10-5 Torr |

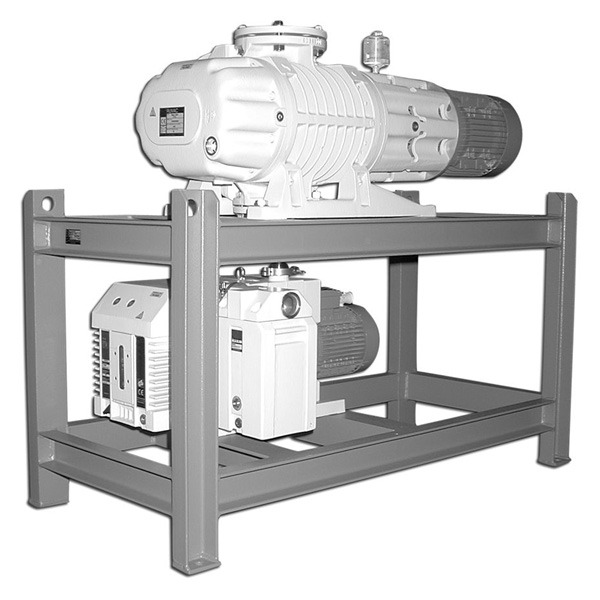

Leybold RUTA WAU 1001 / D 65 B Roots Vacuum Pump System - NEW
TRIVAC 3-Stage Frame Version
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TRIVAC 3-Stage |
Frame Version |
| Inlet connection |
DN 100 ISO-K |
| Outlet connection |
DN 40 ISO-KF |
| Pumping speed at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
620 m3/h / 365 cfm |
| Ultimate partial pressure w/out gas ballast |
< 2.0 x 10-5 mbar / < 1.5 x 10-5 Torr |
| Ultimate total pressure w/ gas ballast |
< 8.0 x 10-4 mbar / < 6.0 x 10-4 Torr |
| Operating fluid |
Leybonol LVO 100 |
| Total operating fluid capacity |
5.3 l / 5.6 qt |
| Noise level to DIN 45 635 |
max: 77 dB(A) / w/o gas ballast at 1.0 mbar / 0.75 Torr: 70 dB(A) |
| Mains connection |
3-phase, 400 V, 50 Hz |
| Installed motor rating |
6.2 kW / 8.4 hp |
| Power consumption at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
3.0 kW / 4.1 hp |
| Admissible ambient temperature |
+12 to +40°C / +54 to +104°F |
| Weight |
460 kg / 1,014 lbs |
Specs - Frame Version
| Type |
Label |
Description |
Download |
|
|
Leybold RUTA Series - NEW |
Instruction & Operating Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUTA WAU 1001 / D 65 B Roots Vacuum Pump System - NEW
TRIVAC 3-Stage Frame Version
Part no. 02319 / 023 19
Pumping speed: 620 m3/h
Ultimate pressure: < 8 x 10-4 mbar
Operating fluid: LEYBONOL LVO 100
