Leybold RUTA W 2001 / SV 300 - NEW
Call for Price
In stock
SKU
NEW_W2001/SV300
| Weight | 1632 lbs |
|---|---|
| Motor Power | 17.7 hp |
| Pumping Speed | 1,445 m3/h |
| Ultimate Pressure | < 6 x 10-3 Torr |
Leybold RUTA WAU 2001 / SV 300 B / G Roots Vacuum Pump System - NEW
SOGEVAC 2-Stage Frame Version
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| SOGEVAC 2-Stage | Frame Version |
|---|---|
| Inlet connection | DN 160 ISO-K |
| Outlet connection | G 2" Inside thread |
| Pumping speed at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr | 1,445 m3/h / 850 cfm |
| Ultimate partial pressure w/out gas ballast | < 8.0 x 10-3 mbar / < 6.0 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast | < 4.0 x 10-2 mbar / < 3.0 x 10-2 Torr |
| Operating fluid | N 62 |
| Total operating fluid capacity | 13.0 l / 13.7 qt |
| Noise level to DIN 45 635 w/o gas ballast at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
79 dB(A) |
| Mains connection | 3-phase, 400 V, 50 Hz |
| Installed motor rating | 13.0 kW / 17.7 hp |
| Power consumption at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
4.5 kW / 6.1 hp |
| Admissible ambient temperature | +12 to +40°C / +54 to +104°F |
| Weight | 740 kg / 1,632 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold SOGEVAC SV 200 & 300 - REBUILT | Instruction Manual | Download |
|
Leybold RUTA Series - NEW | Instruction & Operating Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUTA WAU 2001 / SV 300 B / G Roots Vacuum Pump System - NEW SOGEVAC 2-Stage Frame Version Part no. 502453V001 Pumping speed: 1,445 m3/h Ultimate pressure: < 4 x 10-2 mbar
Related Products
-

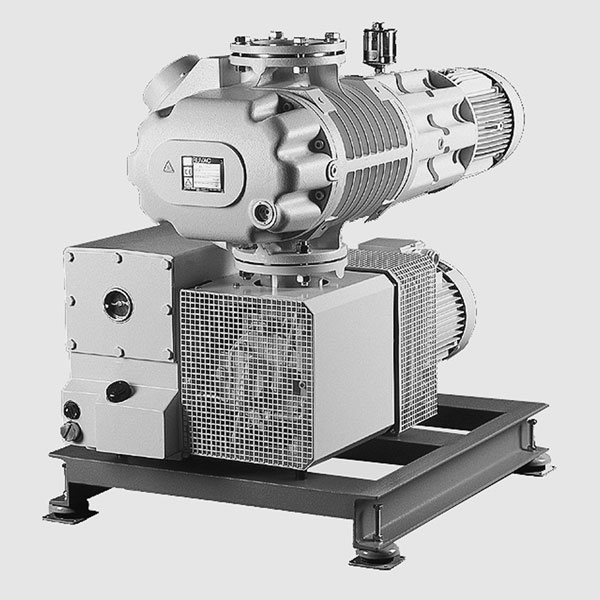

Leybold RUTA W 2001 / SV 630 - NEWCall for Price
