Leybold RUTA W 2001 / SV 630 - NEW
| Weight |
2514 lbs |
| Motor Power |
30.6 hp |
| Pumping Speed |
1,690 m3/h |
| Ultimate Pressure |
< 6 x 10-3 Torr |

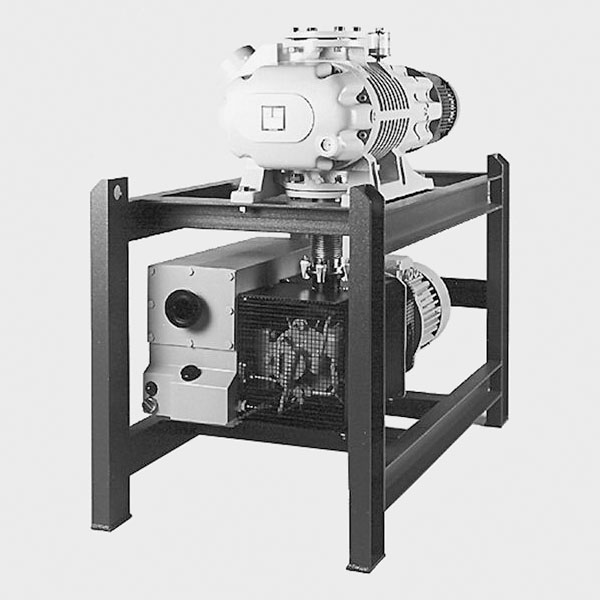

Leybold RUTA WAU 2001 / SV 630 BF / A Roots Vacuum Pump System - NEW
SOGEVAC 2-Stage Adaptor Version
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| SOGEVAC 2-Stage |
Adaptor Version |
| Inlet connection |
DN 160 ISO-K |
| Outlet connection |
DN 100 ISO-K |
| Pumping speed at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
1,690 m3/h / 995 cfm |
| Ultimate partial pressure w/out gas ballast |
< 8.0 x 10-3 mbar / < 6.0 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast |
< 4.0 x 10-2 mbar / < 3.0 x 10-2 Torr |
| Operating fluid |
N 62 |
| Total operating fluid capacity |
26.0 l / 27.5 qt |
Noise level to DIN 45 635 w/o gas ballast
at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
80 dB(A) |
| Mains connection |
3-ph, 400 V, 50 Hz |
| Installed motor rating |
22.5 kW / 30.6 hp |
Power consumption
at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
16.5 kW / 22.4 hp |
| Admissible ambient temperature |
+12 to +40°C / +54 to +104°F |
| Weight |
1,140 kg / 2,514 lbs |
Specs - Adaptor Version
| Type |
Label |
Description |
Download |
|
|
Leybold RUTA Series - NEW |
Instruction & Operating Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUTA WAU 2001 / SV 630 BF / A Roots Vacuum Pump System - NEW
SOGEVAC 2-Stage
Adaptor Version
Part no. 502463V001
Pumping speed: 1,690 m3/h
Ultimate pressure: < 4 x 10-2 mbar
