Leybold RUTA W 251 / D40B - REBUILT
Call for Price
In stock
SKU
REBUILT_W251/D40B
| Weight | 540 lbs |
|---|---|
| Motor Power | 3.5 hp |
| Pumping Speed | 118 cfm |
| Ultimate Pressure | 1.5 x 10-5 Torr |

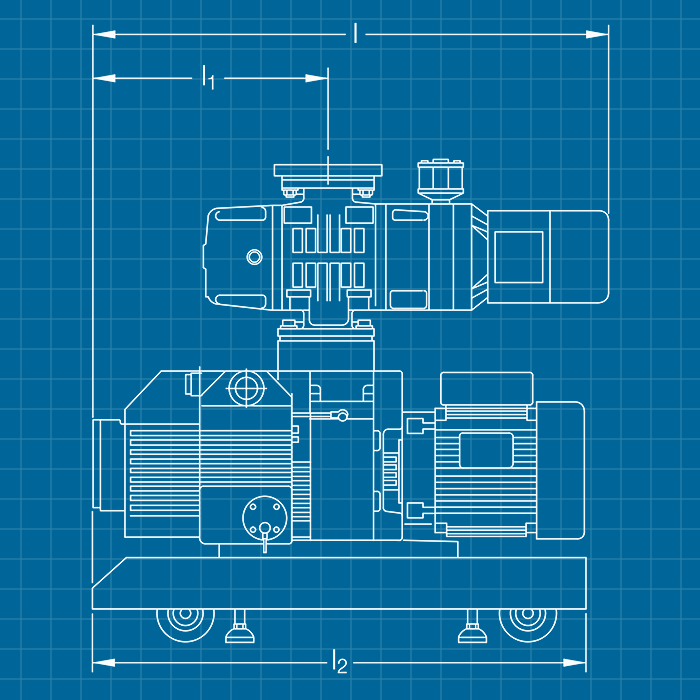

Leybold RUTA W 251 / D40B Roots Vacuum Pump System - REBUILT
These packages can be configured into different combinations depending on need. We have many Leybold blower packages in stock, call to request your desired combination. Each package is sold rebuilt with a one year warranty.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| RUTA | W 251 / D40B | W 251 / D65B | W 501 / D65B | W 1001 / D65B |
|---|---|---|---|---|
| Pump speed @ 10-1 mbar (cfm) | 117.8 | 123.7 | 223.8 | 365.2 |
| Ultimate partial pressure (Torr) | < 1.5 x 10-5 | |||
| Ultimate partial pressure w/ gas ballast (Torr) | < 6 x 10-4 | |||
| Motor power kW (hp) | 2.6 (3.5) | 3.3 (4.5) | 4.4 (6.0) | 6.2 (8.4) |
| Power consumption @ 10-1 mbar kW (hp) | 2.0 (2.7) | 2.5 (3.4) | 2.7 (3.7) | 3.0 (4.1) |
| Oil filling total approx. l (qt) | 3.3 (3.49) | 4 (4.23) | 4.3 (4.55) | 5.3 (5.6) |
| Weight (lb) | 540 | 573 | 628 | 1,014 |

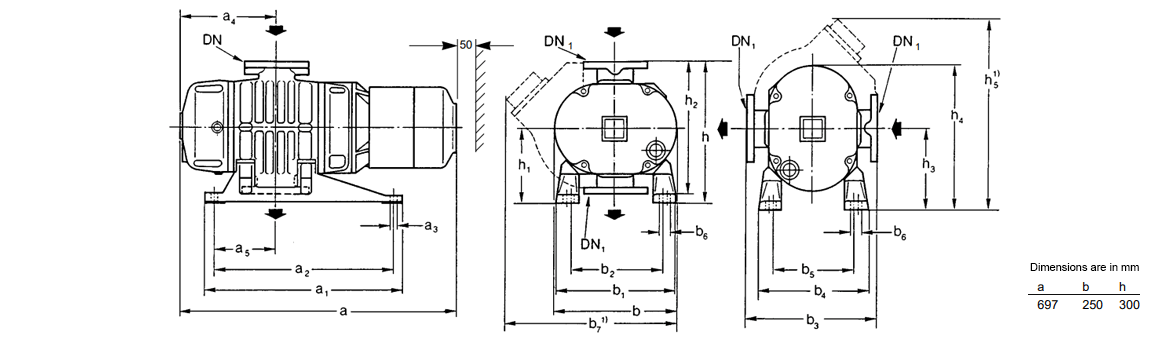

| Connecting flanges | ||||
| Inlet port DN1 | 63 ISO-K | |||
| Outlet port DN2 | 40 KF | |||
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TRIVAC B Series - REBUILT | Instruction Manual | Download |
|
|
Leybold RUVAC WS / WSU Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUTA W 251 / D40B Roots Vacuum Pump System - REBUILT TRIVAC 3-Stage Adaptor Version Part no. 02306 / 023 06 Pumping speed: 200 m3/h Ultimate pressure: < 8 x 10-4 mbar Frame Version Part no. 02316 / 023 16 Pumping speed: 185 m3/h Ultimate pressure: < 8 x 10-4 mbar Operating fluid: LEYBONOL LVO 100
