Leybold RUTA W 501 / SV200 - REBUILT
Call for Price
In stock
SKU
REBUILT_W501/SV200
| Weight | 739 lbs |
|---|---|
| Motor Power | 8.4 hp |
| Pumping Speed | 365 m3/h |
| Ultimate Pressure | < 6 x 10-3 Torr |
Leybold RUTA W 501 / SV200 Roots Vacuum Pump System - REBUILT
SOGEVAC 2-Stage Adaptor Version
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| SOGEVAC 2-Stage | Adaptor Version |
|---|---|
| Inlet connection | DN 63 ISO-K |
| Outlet connection | G 2" Inside thread |
| Pumping speed at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr | 365 m3/h / 215 cfm |
| Ultimate partial pressure w/out gas ballast | < 8.0 x 10-3 mbar / < 6.0 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast | < 4.0 x 10-2 mbar / < 3.0 x 10-2 Torr |
| Operating fluid | N 62 |
| Total operating fluid capacity | 6.0 l / 6.3 qt |
| Noise level to DIN 45 635 w/o gas ballast at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
70 dB(A) |
| Mains connection | 3-phase, 400 V, 50 Hz |
| Installed motor rating | 6.2 kW / 8.4 hp |
| Power consumption at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
3.0 kW / 4.1 hp |
| Admissible ambient temperature | +12 to +40°C / +54 to +104°F |
| Weight | 335 kg / 739 lbs |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUTA W 501 / SV 200 / A Roots Vacuum Pump System - REBUILT SOGEVAC 2-Stage Adaptor Version Part no. 02206 / 022 06 Pumping speed: 365 m3/h Ultimate pressure: < 4 x 10-2 mbar
Related Products
-

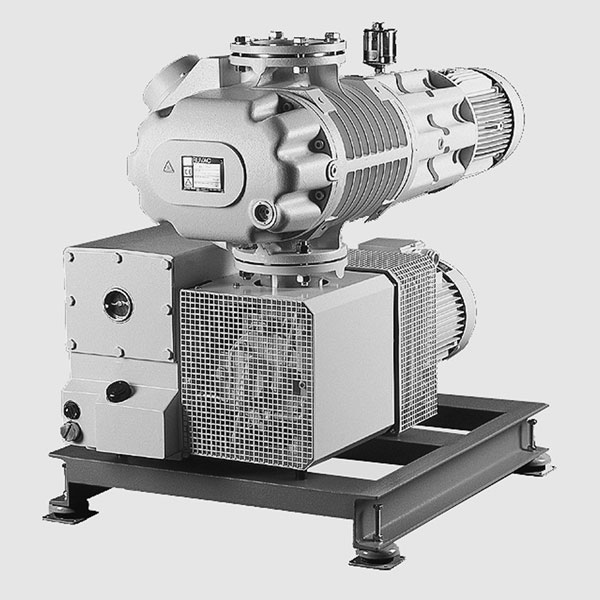

Leybold RUTA W 501 / SV 200 - NEWCall for Price
-

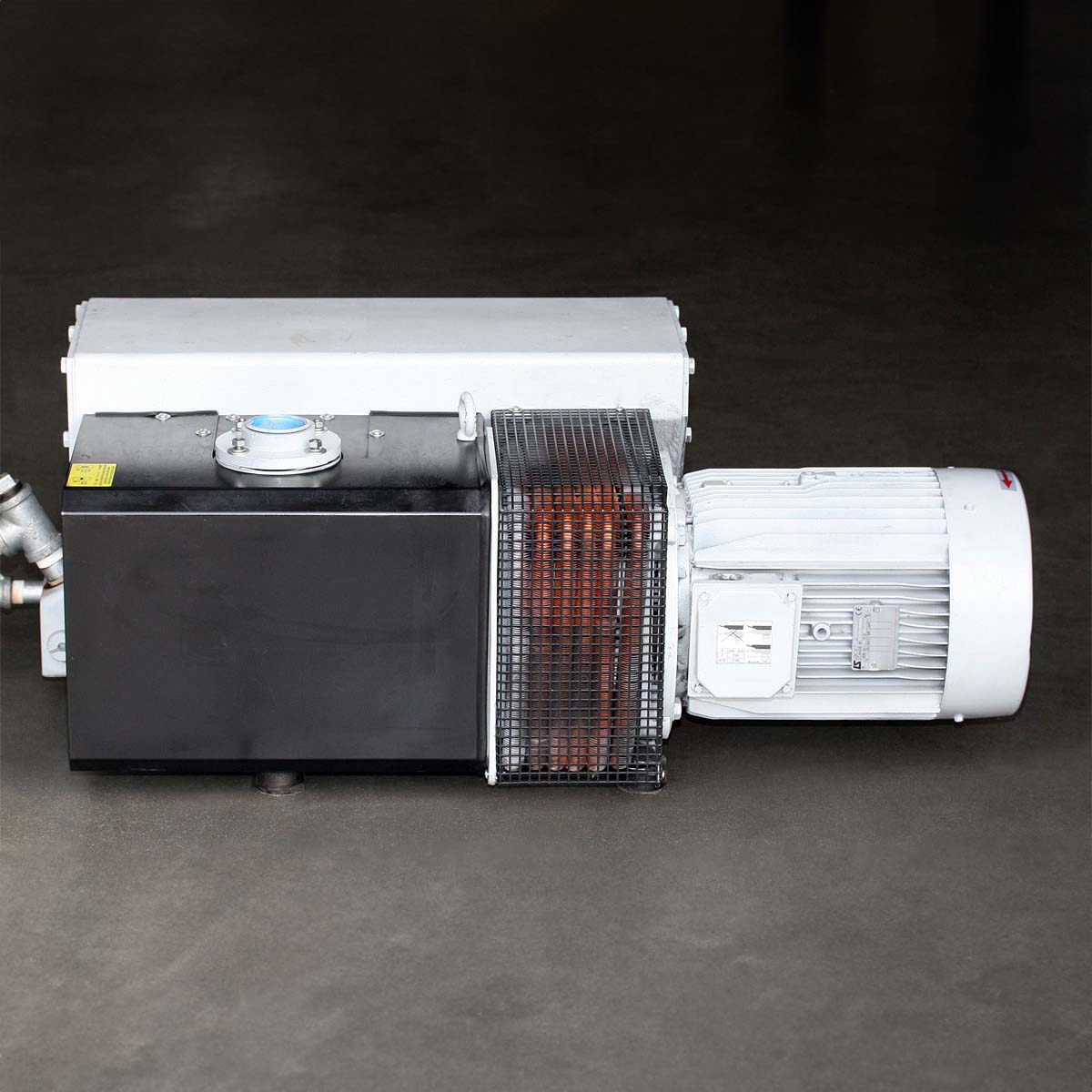

Leybold SOGEVAC SV200 - REBUILTCall for Price
-

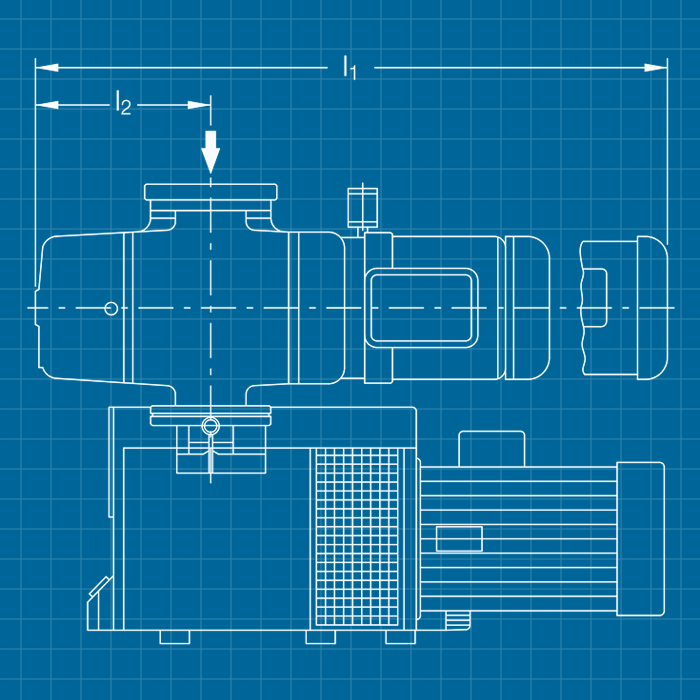

Leybold W 501 / SV200 - SERVICECall for Price
