Leybold RA 3001 - REBUILT
Call for Price
In stock
SKU
REBUILT_RA3001
| Weight | 1,367 lbs |
|---|---|
| Motor Power | 14.75 hp |
| Pumping Speed | 3,900 m3/h |
| Ultimate Pressure | 5.3 x 101 mbar |

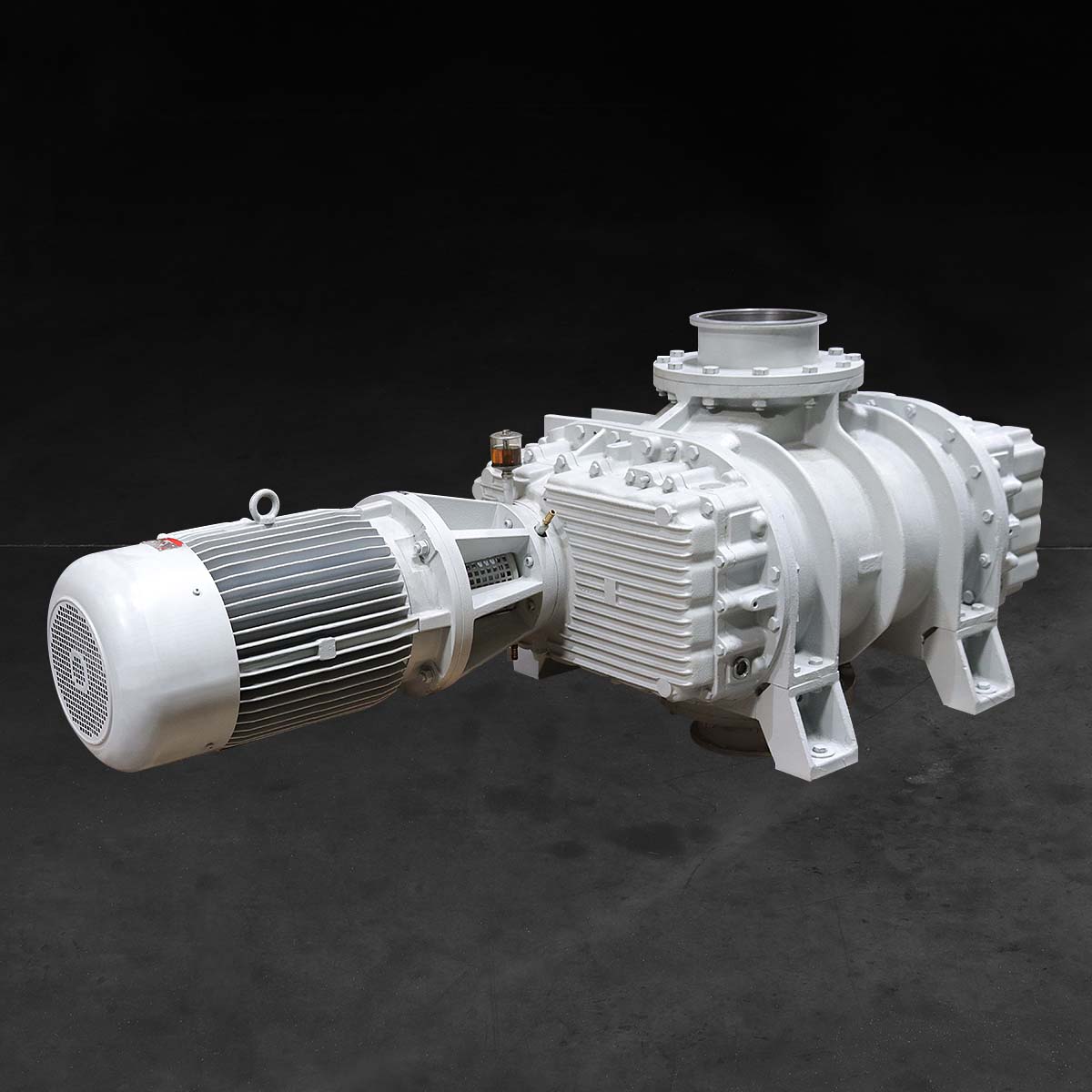

Leybold RUVAC RA 3001 Roots Vacuum Blower - REBUILT
The RUVAC RA 3001 to 9001 are Roots pumps driven directly by a canned motor. The RUVAC RA 13000 is driven via a V-belt. The number in the designation indicates the pumping speed of the pump in m3 x h-1. Standard RUVAC pumps are not suitable for pumping oxygen at concentrations which exceed that of the atmosphere.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| RUVAC RA | 3001 | 5001 | 7001 | 9001 | 13000 | |
|---|---|---|---|---|---|---|
| Nominal pumping speed | m3 x h-1 | 3,900 | 5,550 | 7,470 | 9,720 | 13,000 |
| Maximum pumping speed - at pumping speed for the backing pump |
m3 x h-1 m3 x h-1 |
3,300 630 |
5,000 1,260 |
6,800 1,850 |
8,800 1,850 |
12,000 2,600 |
| Maximum allowable pressure differential - in continuous operation - for less than 3 minutes |
mbar mbar |
53 93 |
66 133 |
53 93 |
||
| Mains voltage at the motor, 50 Hz | 380 - 420 V / 660 - 725 Y | |||||
| Mains voltage at the motor, 60 Hz | 440 - 480 V Æ | |||||
| Motor power, 50 Hz | 11 kW | 15 kW | 18.5 kW | 22 kW | 30 kW | |
| Protection | IP 54 | |||||
| Trigger temperature for the PTC resistors | 130°C | |||||
| Nominal speed at 50 Hz | min-1 | 3,000 | 1,500 | 2,000 | ||
| Max. permissible speed | min-1 | 3,600 | 3,000 | 1,800 | 2,000 | |
| Oil filling, approx. - vertical flow - horizontal flow |
liters | 7 3.5 |
12 5.4 |
11 7.6 |
||
| Noise level | dB (A) | 77 | 78 | 79 | 69 | 72 |
| Weight, complete, approx. | kg | 620 | 770 | 870 | 1,500 | - |

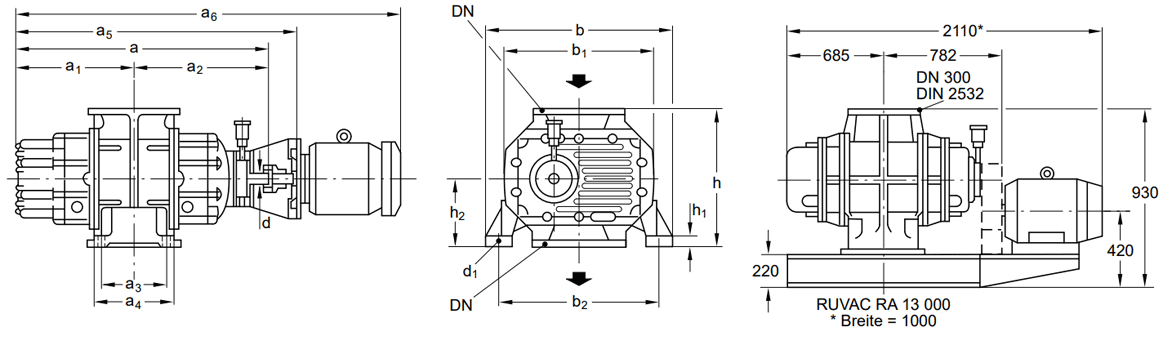

| Intake / discharge flange | DN | 200 | 250 | 300 | ||
| Permissible ambient temperatures | °C | 12 - 40 | ||||
| RUVAC RA w/ motor coupling & lantern | Part # | 119 50 | 119 53 | 119 60 | 119 63 | Custom |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold RUVAC RA Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUVAC RA 3001 Roots Vacuum Blower - REBUILT 11950 RUVAC RA 3001 HC, DN200, MOTO 11971 RUVAC RA 3001 170143 RUVAC RA 3001 BARE SHAFT, PAINT, SEALIN 180034 RUVAC RA 3001 HOR, HC, FLAN EPACT MTR 180035 RUVAC RA 9001 HOR, HC, FLAN EPACT MTR 180050 RUVAC RA 3001S HOR, MARATHON C-FACE MO 180056 RUVAC RA 3001 BARE SHAFT, HORIZONTAL 180094 RUVAC RA 3001S VERT, 15HP, HC, N2, 4 899141 RUVAC RA 3001 BARE SHAFT w/ ADPTR FLG 992363500 RUVAC RA 3001S / RA 7001 GMB15.11 RP BL
