Leybold RUTA RA 3001 / SV 630 - NEW
Weight
3859 lbs
Motor Power
35.4 hp
Pumping Speed
3,090 m3 /h
Ultimate Pressure
< 6 x 10-3 Torr
Leybold RUTA RA 3001 / SV 630 BF / G Roots Vacuum Pump System - NEW
SOGEVAC 2-Stage Frame Version
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
SOGEVAC 2-Stage
Frame Version
Inlet connection
DN 250 ISO-K
Outlet connection
DN 100 ISO-K
Pumping speed at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr
3,090 m3 /h / 1,818 cfm
Ultimate partial pressure w/out gas ballast
< 8.0 x 10-3 mbar / < 6.0 x 10-3 Torr
Ultimate total pressure w/ gas ballast
< 4.0 x 10-2 mbar / < 3.0 x 10-2 Torr
Operating fluid
N 62
Total operating fluid capacity
29.0 l / 30.7 qt
Noise level to DIN 45 635 w/o gas ballast at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr
82 dB(A)
Mains connection
3-phase, 400 V, 50 Hz
Installed motor rating
26.0 kW / 35.4 hp
Power consumption at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr
17.0 kW / 23.1 hp
Admissible ambient temperature
+12 to +40°C / +54 to +104°F
Weight
1,750 kg / 3,859 lbs

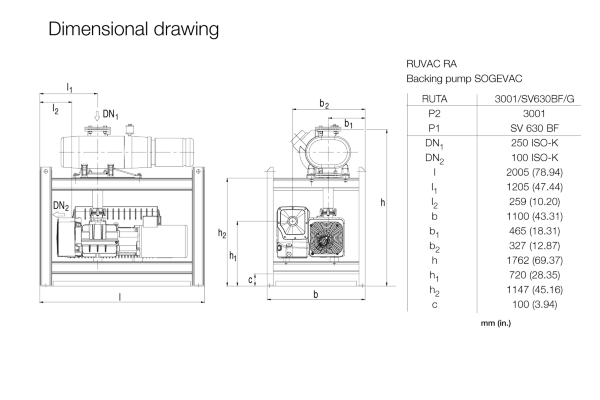

Specs - Frame Version
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUTA RA 3001 / SV 630 BF / G Roots Vacuum Pump System - NEW
SOGEVAC 2-Stage
Frame Version
Part no. 502455V001
Pumping speed: 3,090 m3 /h
Ultimate pressure: < 4 x 10-2 mbar
