Leybold SOGEVAC SV630B - REBUILT
Call for Price
In stock
SKU
REBUILT_SV630B
| Weight | 1,610 lbs |
|---|---|
| Motor Power | 20 hp |
| Pumping Speed | 640 m3/h |
| Ultimate Pressure | ≤ 8 x 10-2 mbar |

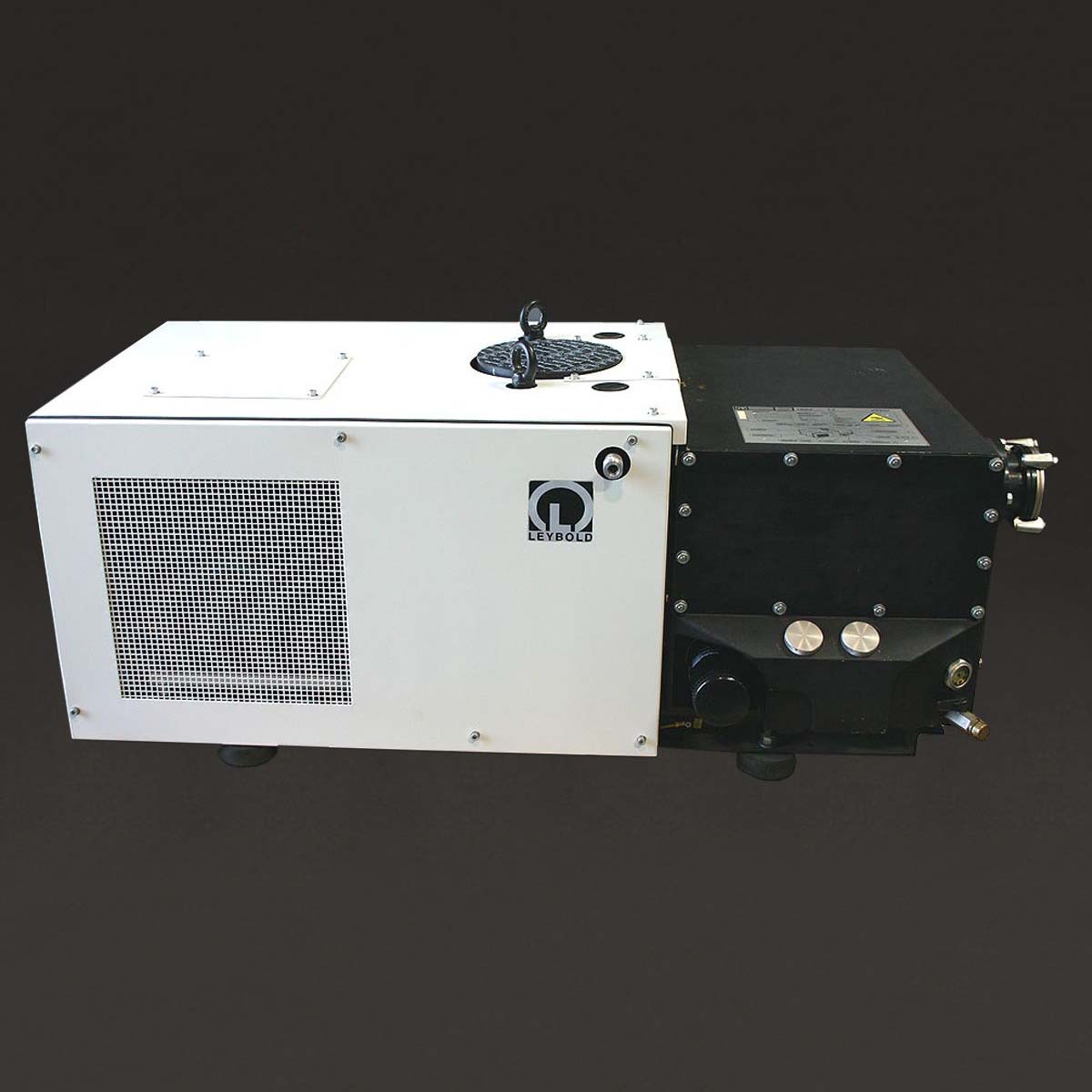

Leybold SOGEVAC SV630B Rotary Vane Vacuum Pump - REBUILT
These SOGEVAC rotary vane vacuum pumps are configured as air-cooled, PN: 960865.
- Operating fluid: LEYBONOL LVO 130
- Pumping speed (50 Hz): 640 m³/h
- Pumping speed (60 Hz): 755 m³/h
- Ultimate pressure: 0.08 mbar
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- No motor coupling up to SV65 B
- Variant concept / specific customer configurations
- ATEX versions for categories 2 and 3, from SV40 B to SV100 B
- Simplified maintenance
All this without any concession to the high technical performance of the SOGEVAC pumps such as ultimate pressure, pump-down time, water vapor tolerance…
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold SOGEVAC SV630B - SV750B - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV630B Rotary Vane Vacuum Pump - REBUILT Part no. 960865 / 960 865 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar Three-phase motor: 400V, 50Hz (NEMA) // 230/460V, 60Hz air-cooled Part no. 960863 / 960 863 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 380/400/415/690V, 50Hz // 440/460V, 60Hz air-cooled Part no. 960862 / 960 862 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 200V, 50Hz (JIS) // 200V, 60Hz air-cooled BF Part no. 960869 / 960 869 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 400V, 50Hz (NEMA) // 230/460V, 60Hz water-cooled BF Part no. 960867 / 960 867 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 380/400/415/690V, 50Hz // 440/460V, 60Hz water-cooled BF Part no. 960866 / 960 866 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 200V, 50Hz (JIS) // 200V, 60Hz water-cooled ATEX Part no. DU0002 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: upon request Marking: II (i) 2G b IIB+H2 T3 / (o) 2G IIC T3 (10°C w/ gas ballast valve BF ATEX Part no. DU0003 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: upon request Marking: II (i) 2G b IIB+H2 T3 / (o) 2G IIC T3 (10°C w/ gas ballast valve ATEX Part no. 960863A33 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 230/400 V, 50 Hz // 460 V, 60 Hz Marking: Ex II (i) 3 G IIC T3 / (o) 3 GD IIC T3 (T150°C)(10 w/ gas ballast valve BF ATEX Part no. 960867A33 Pumping speed: 640 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 400 V, 50 Hz // 460 V, 60 Hz Marking: Ex II (i) 3 G IIC T3 / (o) 3 GD IIC T3 (T150°C)(10 w/ gas ballast valve Operating fluid: LEYBONOL LVO 210 Atlas Copco GVS 630A 3-phase 230/380/460V 50/60Hz
