Leybold RUVAC WA 2001 - REBUILT
Call for Price
In stock
SKU
REBUILT_WA/WAU2001
| Weight | 882 lbs |
|---|---|
| Motor Power | 10 hp |
| Pumping Speed | 2,050 m3/h |
| Ultimate Pressure | < 4 x 10-2 mbar |

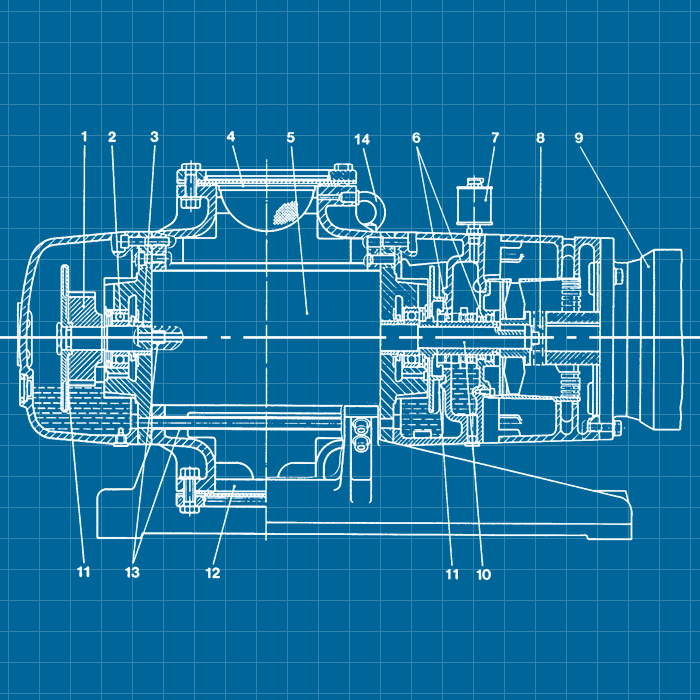

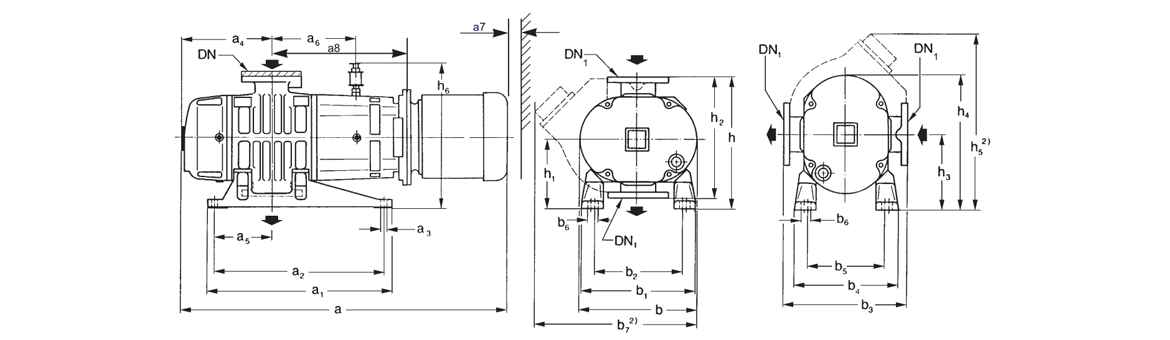

Leybold RUVAC WA / WAU 2001 Roots Vacuum Blower - REBUILT
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping speed | 2,050 m3 · h-1 |
| Max. pumping speed | 1,850 / 630 m3 · h-1 |
| Possible cut-in pressure | 22 mbar / 630 m3 · h-1 |
| Max. permissible pressure differential in continuous operation | 50 mbar |
| Leak tightness | 1 x 10-4 mbar x l/s |
| Permissable ambient temperatures | 12 - 40°C |
| Permissable voltages at the motor's fan | 230 V / 50/60 Hz and 265 V / 60 Hz AC |
| Mains voltage at the motor, 50 Hz | 200 V (-5 %) - 230 V (+10 %) / 400 V (±10 %) |
| Mains voltage at the motor, 60 Hz | 200 V (-5 %) - 265 V (+10 %) / 460 V (±10 %) |
| Motor power, 50 Hz | 7.5 kW, 10 hp |
| Nominal speed, 50 Hz | 3,000 min-1 |
| Max. permissible speed | 4,200 min-1 |
| Motor protection category | 20 IP |
| Weight WA / WAU | 882 / 895 lbs |
| Collar flanges | 160 ISO · K |
| Noise level | < 72 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold RUVAC WA / WAU Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUVAC WA / WAU 2001 Roots Vacuum Blower - REBUILT 91750 / 917 50 WA 2001 60Hz 91751 / 917 51 WAU 2001 60Hz 11750 / 117 50 WA 2001 50/60Hz 11751 / 117 51 WAU 2001 50/60Hz
