Leybold RUVAC WA / WAU 501 - NEW
Call for Price
In stock
SKU
NEW_WAWAU501
| Weight | 293 lbs |
|---|---|
| Motor Power | 3 hp |
| Pumping Speed | 505 m3/h |
| Ultimate Pressure | < 3 x 10-2 Torr |
Leybold RUVAC WA / WAU 501 Roots Vacuum Blower - NEW
- Connection flange: DN 63 PN6
- Max. permissible pressure difference: 80 mbar
- Nom. pumping speed (50 Hz): 505 m3 · h-1
- Rotational speed (50/60 Hz): 3,000 / 3,600 min-1
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping speed (50 Hz) | 505.0 m3 x h-1 / 297.4 cfm |
| Nominal pumping speed (60 Hz) | 606.0 m3 x h-1 / 357.0 cfm |
| Max. effective pumping speed (50 Hz) | 410.0 m3 x h-1 / 241.0 cfm |
| Max. effective pumping speed (60 Hz) | 530 m3/h / 312 cfm |
| Ultimate total pressure | < 4 x 10-2 mbar / < 3 x 10-2 Torr |
| Max. permissable pressure difference during continous operation | 80.0 mbar / 60.0 Torr |
| Leak rate | < 5 x 10-4 mbar x l x s-1 |
| Cut in pressure at 60 Hz | 60.0 mbar / 45.0 Torr |
| Max. permissible pressure differnce | 80.0 mbar / 60.0 Torr |
| Leak rate | ≤ 5.0 x 10-4 mbar l/s |
| Thermal class | F |
| Permissable ambient temperatures | +5 to +40ºC / +41 to +104ºF |
| Motor Power | 2.2 kW / 3.0 hp |
| Energy Efficiency class | IE 2 |
| Nominal speed, approx | 3,000 rpm |
| Max. permissable speed | 3,600 rpm |
| Type of protection | IP 55 |
| Weight | 133.0 kg /293 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold RUVAC Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUVAC WA / WAU 501 Roots Vacuum Blower - NEW Part no. 11730 / 117 30 Pumping speed: 505 m3/h Ultimate pressure: < 4 x 10-2 mbar Three-phase motor: 220-240/380-420V, 50Hz / 220-277/380-480V, 60Hz Part no. 11734 / 117 34 Pumping speed: 505 m3/h Ultimate pressure: < 4 x 10-2 mbar w/out motor Part no. 11731 / 117 31 Pumping speed: 505 m3/h Ultimate pressure: < 4 x 10-2 mbar 3-phase motor: 220-240/380-420V, 50Hz / 250-277/380-480V, 60Hz Part no. 11831 / 118 31 Pumping speed: 505 m3/h Ultimate pressure: < 4 x 10-2 mbar 3-phase motor: 220-240/380-420V, 50Hz / 250-277/400-480V, 60Hz Part no. 155008 / 155 008 Pumping speed: 505 m3/h Ultimate pressure: < 4 x 10-2 mbar w/out motor Operating fluid: LEYBONOL LVO 100 Replaced Part #: 91732
Related Products
-
Leybold RUVAC WS / WSU 501 - NEWCall for Price
-
Leybold RUVAC WA / WAU 501 - REBUILTCall for Price
-

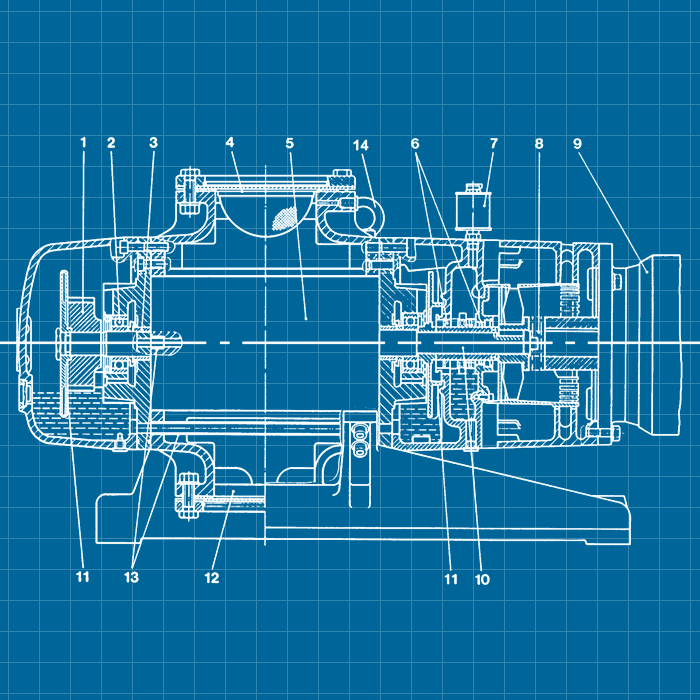

Leybold WA / WAU 501 - SERVICECall for Price
