Leybold RUVAC WS / WSU 501 - NEW

Name: Leybold RUVAC WS / WSU 501 - NEW
Brand: Leybold
SKU: NEW_WSWSU501

Be the first to review this product

Call for Price

In stock

SKU

NEW_WSWSU501

Request For Quote

Weight	293 lbs
Motor Power	3 hp
Pumping Speed	505 m³/h
Ultimate Pressure	< 3 x 10^-2 Torr

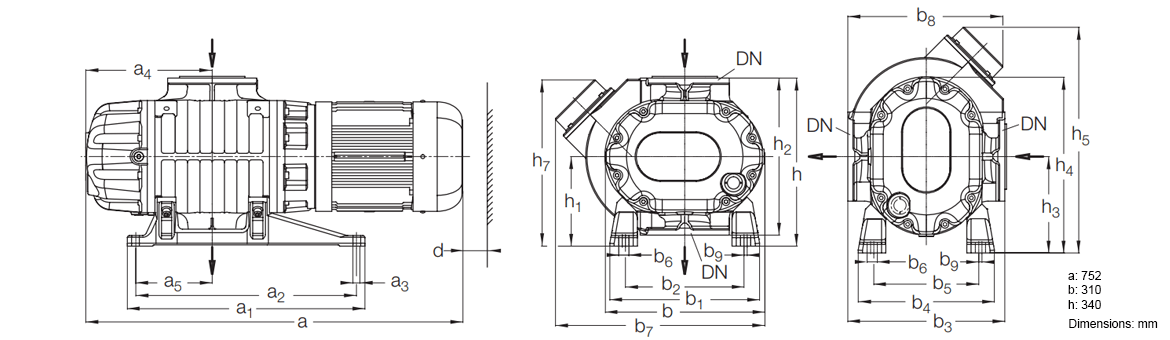

Dimensions

Description

Leybold RUVAC WS / WSU 501 Roots Vacuum Blower - NEW

Connection flange: DN 63 PN6
Max. permissible pressure difference: 80 mbar
Nom. pumping speed (50 Hz): 505 m³ · h^-1
Rotational speed (50/60 Hz): 3,000 / 3,600 min^-1

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal pumping speed	505.0 m³ x h^-1
Max. pumping speed	450.0 m³ x h^-1
Leak tightness	1 x 10^-4 mbar x l/s
Permissable ambient temperature	12 - 40ºC
Permissible voltages at the motor’s fan	230 V / 50/60 Hz and 265 V / 60 Hz
Mains voltage at the motor, 50 Hz	200 V (-5 %) - 230 V (+10 %) / 400 V (±10 %)4)
Mains voltage at the motor, 60 Hz	200 V (-5 %) - 265 V (+10 %) / 460 V (±10 %)4)
Motor power, 50 Hz	2.2 kW
Nominal speed, 50 Hz	3,000 min^-1
Max. permissable speed	6,000 min^-1
Permissable ambient temperatures	+5 to +40ºC / +41 to +104ºF
Motor Power	2.2 kW / 3.0 hp
Energy Efficiency class	IE 2
Nominal speed, approx	3,000 rpm
Max. permissable speed	3,600 rpm
Type of protection	IP 20
Weight	135 kg

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold RUVAC WS / WSU Series - REBUILT	Instruction Manual	Download
	Leybold RUVAC Series - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold RUVAC WS / WSU 501 Vacuum Blower - NEW

Part no. 11732 / 117 32
Pumping speed: 505 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
Three-phase motor: 220-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 100

Part no. 11737 / 117 37
Pumping speed: 505 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 220-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 400

Part no. 11733 / 117 33
Pumping speed: 505 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 200-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 100

Part no. 11738 / 117 38
Pumping speed: 505 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 200-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 400

Part no. 11833 / 118 33
Pumping speed: 505 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 200-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 100

Replaced Part #: 91732
