Leybold RUVAC WS / WSU 501 - REBUILT
Call for Price
In stock
SKU
REBUILT_WS/WSU501
| Weight | 298 lbs |
|---|---|
| Motor Power | 3.3 hp |
| Pumping Speed | 505 m3/h |
| Ultimate Pressure | 4 x 10-2 mbar |

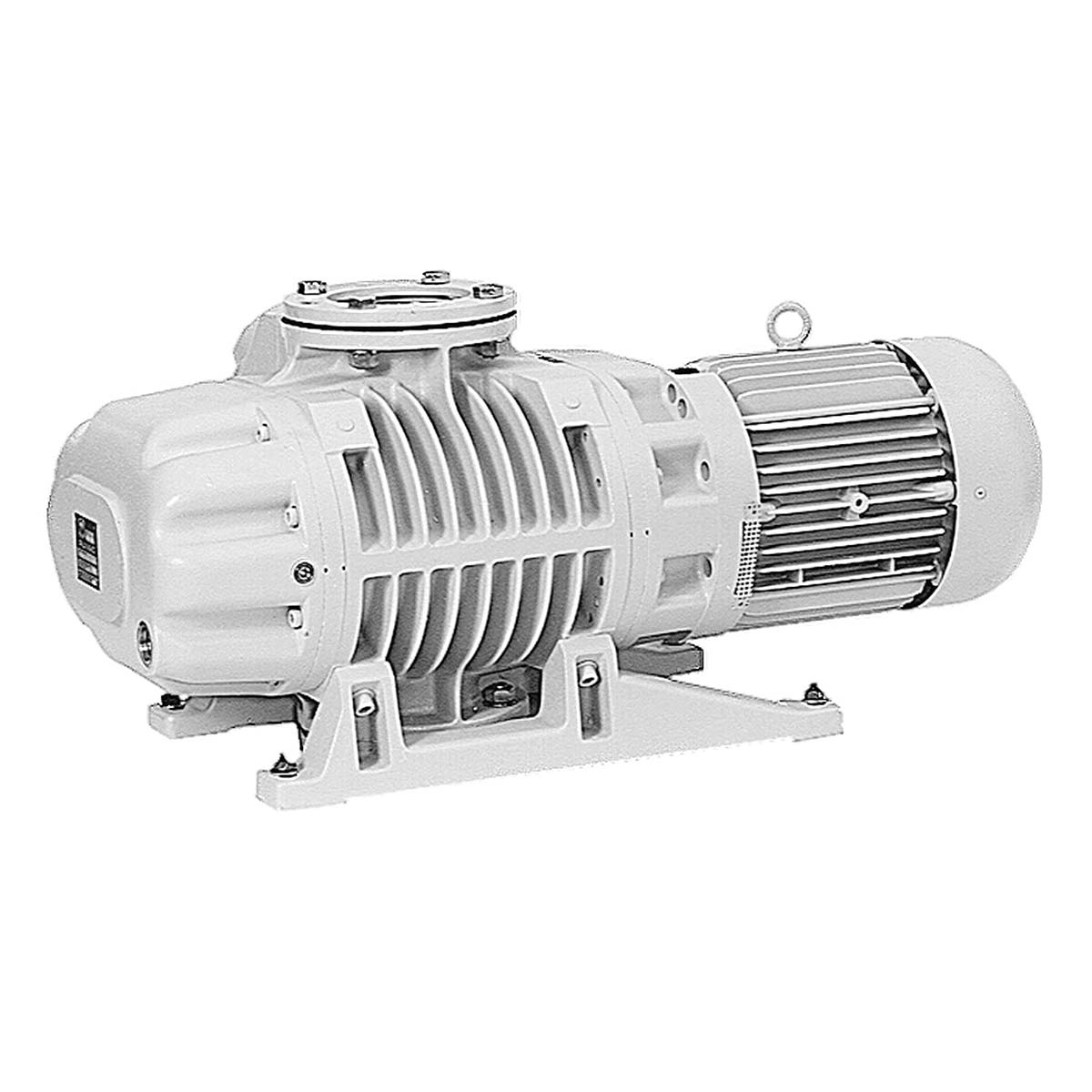

Leybold RUVAC WS / WSU 501 Roots Vacuum Blower - REBUILT
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping speed | 505 m3 x h-1 |
| Max. pumping speed | 450 m3 x h-1 |
| Leak tightness | 1 x 10-4 mbar x l/s |
| Permissable ambient temperature | 12 - 40ºC |
| Permissible voltages at the motor’s fan | 230 V / 50/60 Hz and 265 V / 60 Hz |
| Mains voltage at the motor, 50 Hz | 200 V (-5 %) - 230 V (+10 %) / 400 V (±10 %)4) |
| Mains voltage at the motor, 60 Hz | 200 V (-5 %) - 265 V (+10 %) / 460 V (±10 %)4) |
| Motor power, 50 Hz | 2.2 kW |
| Nominal speed, 50 Hz/td> | 3,000 min-1 |
| Max. permissable speed | 6,000 min-1 |
| Permissable ambient temperatures | +5 to +40ºC / +41 to +104ºF |
| Motor Power | 2.2 kW / 3.0 hp |
| Energy Efficiency class | IE 2 |
| Nominal speed, approx | 3,000 rpm |
| Max. permissable speed | 3,600 rpm |
| Type of protection | IP 20 |
| Weight | 135 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold RUVAC WS / WSU Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUVAC WS / WSU 501 Roots Vacuum Blower - REBUILT 91732 / 917 32 WS 501 91737 / 917 37 WS 501 PFPE 91733 / 917 33 WSU 501 91738 / 917 38 WSU 501 PFPE 91833 / 918 33 WSU 501 H 11732 / 117 32 WS 501 11737 / 117 37 WS 501 PFPE 11733 / 117 33 WSU 501 11738 / 117 38 WSU 501 PFPE 11833 / 118 33 WSU 501 H
