Leybold SCROLLVAC SC 15 D - REBUILT

Call for Price

In stock
SKU
REBUILT_SC15D
Weight 55.2 lbs
Motor Power 0.54 hp
Pumping Speed 7.7 cfm
Ultimate Pressure ≤ 1.2 x 10-2 Torr

Leybold SCROLLVAC SC 15 D Dry Scroll Vacuum Pump - REBUILT

Rebuilt Leybold SCROLLVAC scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Nominal pumping speed    m3/h (cfm) 50 Hz: 15.0 (8.8)
60 Hz: 18.0 (10.6)
Pumping speed    m3/h (cfm) 50 Hz: 13.0 (7.7)
60 Hz: 15.5 (9.1)
Attainable ultimate pressure     mbar (Torr) ≤ 0.016 (≤ 0.012)
Leak rate    mbar l/s  1 x 10-6
Maximum inlet pressure Atmosphere
Permissable ambient temperature +5 to +40°C
+41 to +104°F
Connections Inlet: DN 25
Exhaust: DN 16
Cooling Air
Water vapor capacity
    with purge, max.
1.04 g/h
10 l/min
Protection class IP 20
Motor power 400 W (0.54 hp)
Motor speed 50 Hz: 1,450 min-1 (1,450 rpm)
60 Hz: 1,730 min-1 (1,730 rpm)
Motor voltage 1-phase / 50 Hz: 100 V
60 Hz: 100 - 115 V
50/60 Hz: 200 - 230 V
3-phase / 50 Hz: 200 V, 380 - 415 V
60 Hz: 200 - 380 V, 460 V
Noise level at 1 m (3.5 ft), free field measurement     ≤ 58 dB(A)

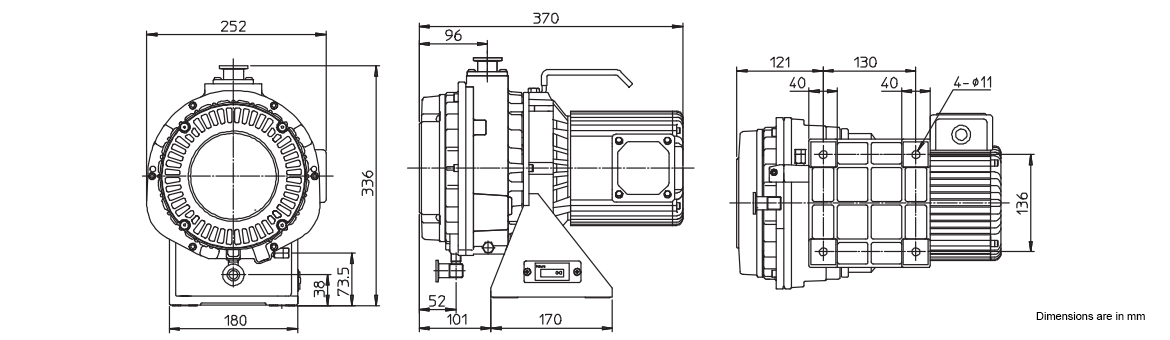

Dimensions 400 x 252 x 336 mm
(15.75 x 9.92 x 13.23 in)
Weight 1-phase: 25 kg (55.2 lbs)
3-phase: 23 kg (50.8 lbs)

Specifications

Type Label Description Download
Oerlikon Leybold SCROLLVAC SC Series - REBUILT Operating Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Oerlikon Leybold SCROLLVAC SC 15 D Dry Scroll Vacuum Pump - REBUILT

Part no. 133001 / 133 001
Pumping speed (50 Hz): 13 m3/h
Pumping speed (60 Hz): 15.5 m3/h
Ultimate pressure: 0.016 mbar
Single-phase motor: 230 V, 50/60 Hz

Part no. 133101 / 133 101
Pumping speed (50 Hz): 13 m3/h
Pumping speed (60 Hz): 15.5 m3/h
Ultimate pressure: 0.016 mbar
1-phase motor: 115 V, 50/60 Hz

Part no. 133003 / 133 003
Pumping speed (50 Hz): 13 m3/h
Pumping speed (60 Hz): 15.5 m3/h
Ultimate pressure: 0.016 mbar
3-phase motor: 200/400 V, 50/60 Hz
