Leybold SCROLLVAC SC 60 D - REBUILT

Name: Leybold SCROLLVAC SC 60 D - REBUILT
Brand: Leybold
SKU: REBUILT_SC60D

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_SC60D

Request For Quote

Weight	132.5 lbs
Motor Power	1.9 hp
Pumping Speed	31 cfm
Ultimate Pressure	≤ 7.5 x 10^-3 Torr

Dimensions

Description

Leybold SCROLLVAC SC 60 D Dry Scroll Vacuum Pump - REBUILT

Rebuilt Leybold SCROLLVAC scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal pumping speed m³/h (cfm)	50 Hz: 60.0 (35.4) 60 Hz: 72.0 (42.4)
Pumping speed m³/h (cfm)	50 Hz: 52.0 (31.0) 60 Hz: 62.0 (36.5)
Attainable ultimate pressure mbar (Torr)	≤ 0.01 (≤ 0.0075)
Leak rate mbar l/s	1 x 10^-6
Maximum inlet pressure	Atmosphere
Permissable ambient temperature	+5 to +40°C +41 to +104°F
Connections	Inlet/Exhaust: DN 40
Cooling	Air
Water vapor capacity with purge, max.	1.04 g/h 10 l/min
Protection class	IP 20
Motor power	1,400 W (1.90 hp)
Motor speed	50 Hz: 1,460 min^-1 (1,460 rpm) 60 Hz: 1,760 min^-1 (1,760 rpm)
Motor voltage (3-phase)	50 Hz: 200 V, 380 - 400 - 415 V 60 Hz: 200 - 220 - 230 V, 460 V
Noise level at 1 m (3.5 ft), free field measurement	≤ 67 dB(A)

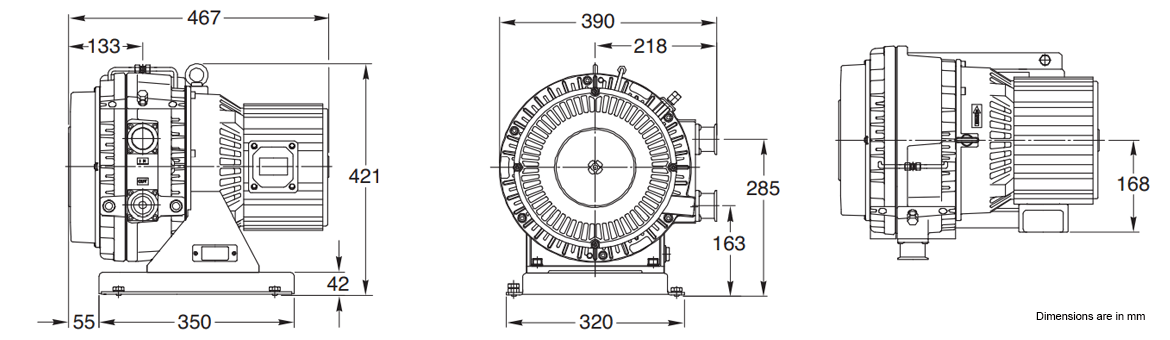

Dimensions	467 x 390 x 421 mm (18.39 x 15.35 x 16.57 in)
Weight (3-phase motor)	60 kg (132.5 lbs)

Specifications

Digital Manuals

Type	Label	Description	Download
	Oerlikon Leybold SCROLLVAC SC Series - REBUILT	Operating Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Oerlikon Leybold SCROLLVAC SC 60 D Dry Scroll Vacuum Pump - REBUILT

Part no. 133008 / 133 008
Pumping speed (50 Hz): 52 m³/h
Pumping speed (60 Hz): 62 m³/h
Ultimate pressure: 0.01 mbar
3-phase motor: 200/400 V, 50/60 Hz
