Leybold SOGEVAC SV 120 B - NEW
Call for Price
In stock
SKU
NEW_SV120B
| Weight | 207 lbs |
|---|---|
| Motor Power | 3.3 hp |
| Pumping Speed | 110 m3/h |
| Ultimate Pressure | ≤ 5 x 10-1 mbar |

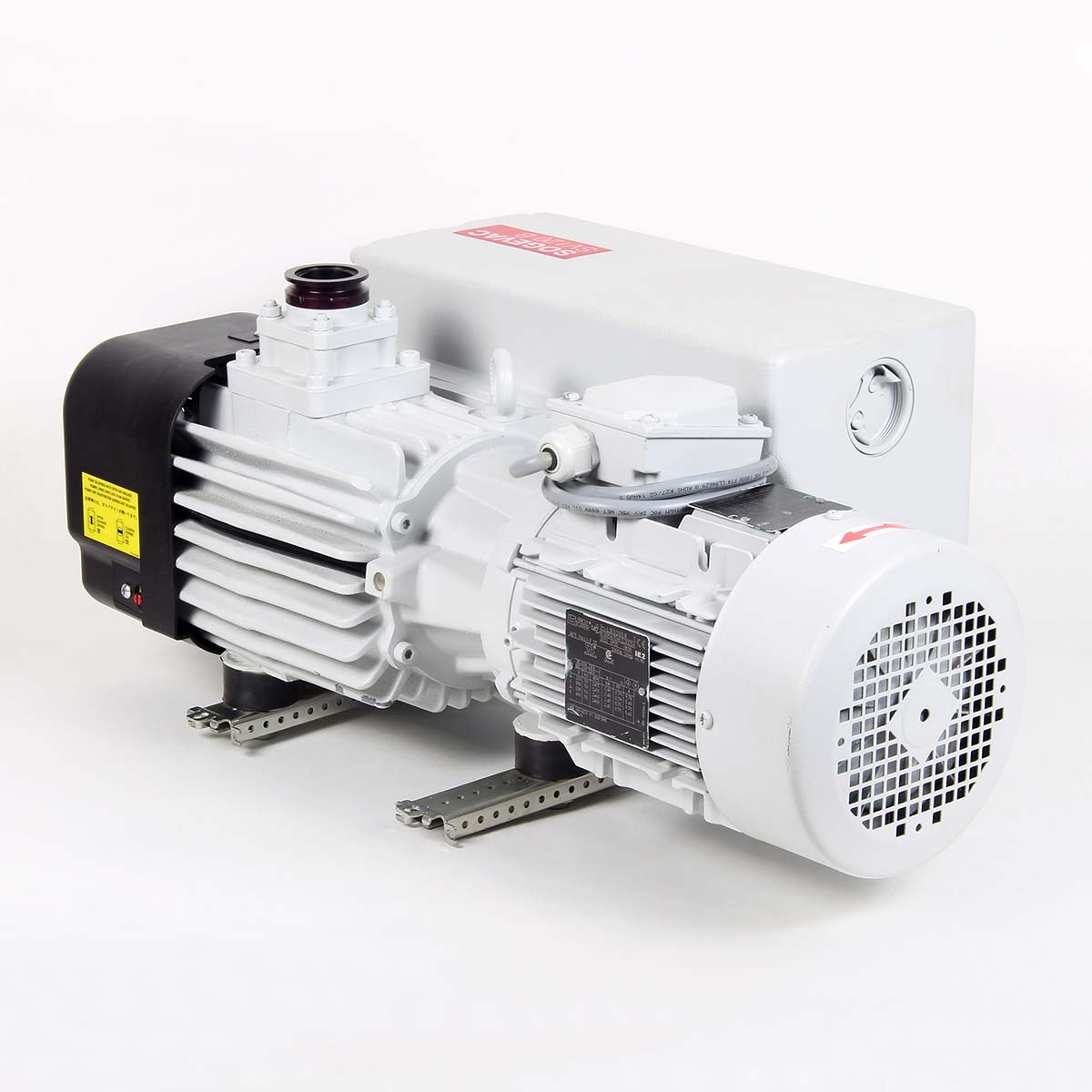

Leybold SOGEVAC SV 120 B Rotary Vane Vacuum Pump - NEW
The new SOGEVAC range of rotary vane vacuum pumps is setting new standards and offers following major characteristics:
- Operating fluid: LEYBONOL LVO 130
- Pumping speed (50 Hz): 110 m³/h
- Pumping speed (60 Hz): 120 m³/h
- Ultimate pressure: 0.5 mbar
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- No motor coupling up to SV 65 B
- Variant concept / specific customer configurations
- ATEX versions for categories 2 and 3, from SV 40 B to SV 100 B
- Simplified maintenance
All this without any concession to the high technical perf
| Nominal Speed | 130 m3 x h-1 |
| Pumping speed | 110 m3 x h-1 |
| Ultimate partial pressure w/o gas ballast | ≤ 0.5 mbar |
| Ultimate total pressure with standard gas ballast | ≤ 1.5 mbar |
| Water vapor tolerance w/ standard gas ballast | 30 mbar |
| Permissible water vapor load | 1.6 kg x h-1 |
| Motor power | 2.4 kW |
| Rated rotational speed | 1,500 min-1 |
| Noise level | 61 dBA |
| Oil capacity | 2 l |
| Weight | 94 kg / 207 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Oil Sealed - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV 120 B Rotary Vane Vacuum Pump - NEW Part no. 960551 / 960 551 Pumping speed: 110 m3/h Ultimate pressure: < 0.5 mbar Three-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz w/ small gas ballast valve - w/out oil filter Part no. 960553 / 960 553 Pumping speed: 110 m3/h Ultimate pressure: < 0.5 mbar 3-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz w/ small gas ballast valve - w/ oil filter Part no. 960572 / 960 572 Pumping speed: 110 m3/h Ultimate pressure: < 0.5 mbar 3-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz w/ standard gas ballast valve - w/out oil filter Part no. 960557 / 960 557 Pumping speed: 110 m3/h Ultimate pressure: < 0.5 mbar 3-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz w/ standard gas ballast valve - w/ oil filter Operating fluid: LEYBONOL LVO 130 Atlas Copco GVS 150 3-phase 230/380/460V 50/60Hz
