Leybold SOGEVAC SV 16 D - NEW

Name: Leybold SOGEVAC SV 16 D - NEW
Brand: Leybold
SKU: NEW_SV16D

Be the first to review this product

Call for Price

In stock

Only %1 left

SKU

NEW_SV16D

Request For Quote

Weight	55.1 lbs
Motor Power	1 hp
Pumping Speed	14.5 m³/h
Ultimate Pressure	≤ 5 x 10^-1 mbar

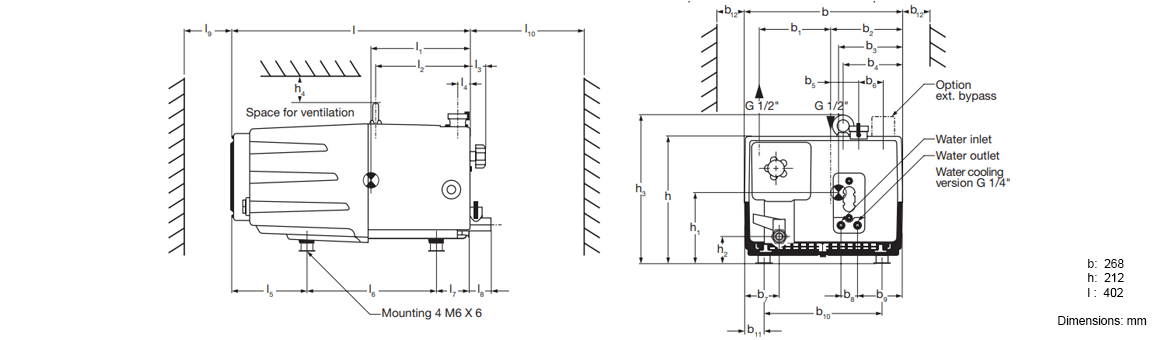

Dimensions

Description

Leybold SOGEVAC SV 16 D Rotary Vane Vacuum Pump - NEW

The standard version of the SOGEVAC rotary vane pump series is suitable for rough industrial applications which can be customized to fit individual customer needs. A wide range of monitoring accessories and options are available. Different motor versions, inlet or exhaust ports, food-grade oil, food-grade paint, larger gas ballast are some examples of possible customizing.

Operating fluid: LEYBONOL LVO 120
Pumping speed (50 Hz): 14.5 m³/h
Pumping speed (60 Hz): 17 m³/h
Ultimate pressure: 0.5 mbar

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal pumping speed	50 Hz: 16 m³h^-1	60 Hz: 18.7 m³h^-1
Pumping speed	50 Hz: 14.5 m³h^-1	60 Hz: 17 m³h^-1
Ultimate partial pressure w/ gas ballast	50 Hz: ≤ 1.5 mbar	60 Hz: ≤ 1.5 mbar
Ultimate partial pressure w/out gas ballast	50 Hz: ≤ 0.5 mbar	60 Hz: ≤ 0.5 mbar
Water vapor tolerance	15 mbar	11.3 Torr
Oil filling	2 l
Nominal speed	50 Hz: 1,440 rpm	60 Hz: 1,750 rpm
Motor power	0.75 kW
Noise level	59 dB(A)
Weight	25 kg
Connections	G 1/2"

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold Oil Sealed - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SOGEVAC SV 16 D Rotary Vane Vacuum Pump - NEW

Part no. 960181V
Pumping speed: 14.5 m³/h
Ultimate pressure: < 0.5 mbar
Three-phase motor: 200 - 240V // 380 - 415V, 50Hz // 200 - 240V // 380 - 460V, 60Hz
w/ gas ballast valve and anti suck back valve

Part no. 960180V
Pumping speed: 14.5 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 208-230/460V, 60Hz
w/ gas ballast valve and anti suck back valve

Part no. 960186V
Pumping speed: 14.5 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 110 - 115V // 220 - 230V, 50/60Hz
w/ gas ballast valve and anti suck back valve

Part no. 960185V
Pumping speed: 14.5 m³/h
Ultimate pressure: < 0.5 mbar
Single-phase motor: 200 - 240V, 50/60Hz
w/ gas ballast valve and anti suck back valve

Operating fluid: LEYBONOL LVO 120
