Leybold SOGEVAC SV 25 B - NEW

Name: Leybold SOGEVAC SV 25 B - NEW
Brand: Leybold
SKU: NEW_SV25B

Be the first to review this product

Starting at $2,281

In stock

Only %1 left

SKU

NEW_SV25B

Request For Quote

Weight	57 lbs
Motor Power	1.5 hp
Pumping Speed	22.5 m³/h
Ultimate Pressure	≤ 5 x 10^-1 mbar

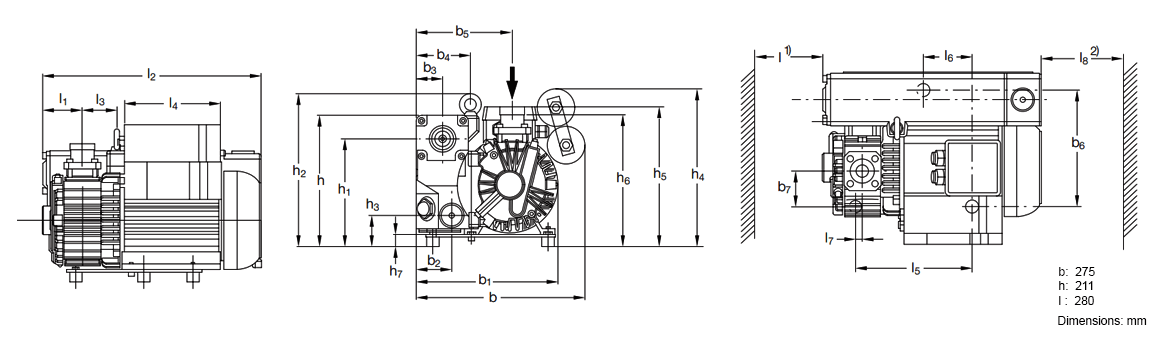

Dimensions

Description

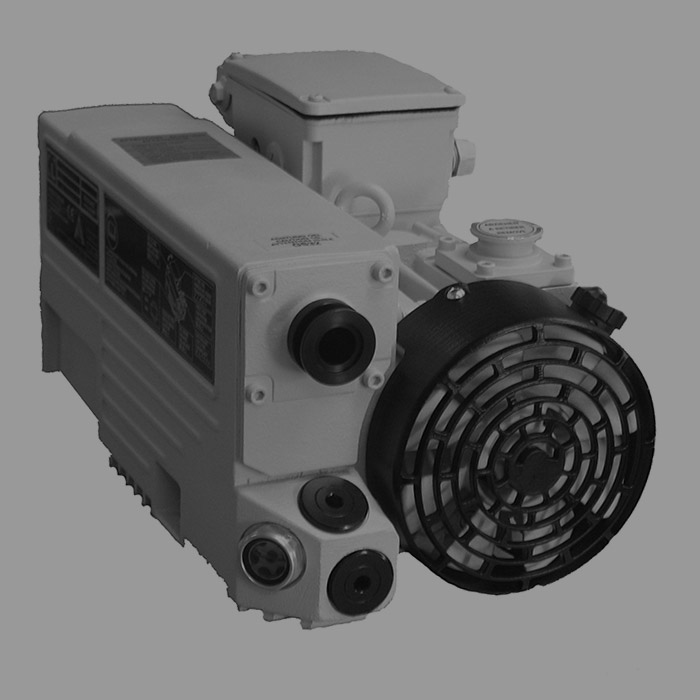

Leybold SOGEVAC SV 25 B Rotary Vane Vacuum Pump - NEW

The new SOGEVAC range of rotary vane vacuum pumps is setting new standards and offers following major characteristics:

Operating fluid: LEYBONOL LVO 120
Pumping speed (50 Hz): 22.5 m³/h
Pumping speed (60 Hz): 31 m³/h
Ultimate pressure: 0.5 mbar
Compact design and small footprint
Very low and constant noise level in any working condition
Integrated functions, no external pipe
No motor coupling up to SV 65 B
Variant concept / specific customer configurations
ATEX versions for categories 2 and 3, from SV 40 B to SV 100 B
Simplified maintenance

All this without any concession to the high technical performance of the SOGEVAC pumps such as ultimate pressure, pump-down time, water vapor tolerance…

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal pumping speed at 50 Hz	26 m³/h, 15.3 cfm
Nominal pumping speed at 60 Hz	31 m³/h, 18.3 cfm
Pumping speed at 50 Hz	22.5 m³/h, 13.3 cfm
Pumping speed at 60 Hz	25 m³/h, 14.7 cfm
Ultimate total pressure without gas ballast	≤ 5 x 10^-1 mbar, ≤ 0.4 Torr
Ultimate total pressure with gas ballast	<8 x 10^-1 mbar, < 0.6 Torr
Water vapor tolerance at 50/60 Hz	10.0 mbar, 7.5 Torr
Water vapor capacity at 50/60 Hz	85 g/h
Operating fluid capacity	0.5 L
Noise level to DIN 45 635	64 dB(A)
Motor rating	1.1 kW, 1.5 hp
Motor protection rating	IP 55
Weight	26 kg (57 lbs)

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold Oil Sealed - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SOGEVAC SV 25 B Rotary Vane Vacuum Pump - NEW

Part no. 960250 / 960 250
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
Three-phase motor: 200-240/346-415V, 50Hz // 200-277/346-480V, 60Hz
w/out gas ballast valve

Part no. 960252 / 960 252
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 200-240/346-415V, 50Hz // 200-277/346-480V, 60Hz
w/out gas ballast valve - with NPT- flanges

Part no. 960251 / 960 251
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 200-240/346-415V, 50Hz // 200-277/346-480V, 60Hz
w/ gas ballast valve

Part no. 960253 / 960 253
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 200-240/346-415V, 50Hz // 200-277/346-480V, 60Hz
w/ gas ballast valve - with NPT- flanges

Part no. 960255 / 960 255
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
Single-phase motor: 230V, 50/60Hz
w/out gas ballast valve

Part no. 960256 / 960 256
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
1-phase motor: 230V, 50/60Hz
w/ gas ballast valve

Operating fluid: LEYBONOL LVO 120

Part no. 960257 / 960 257
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
1-phase motor: 230V, 50/60Hz
w/ gas ballast valve - with NPT flanges

Part no. 960261 / 960 261
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
1-phase motor: 110-120V, 60Hz
w/ gas ballast valve

Part no. 960266 / 960 266
Pumping speed: 22.5 m³/h
Ultimate pressure: < 0.5 mbar
1-phase motor: 100V,50/60Hz
w/ gas ballast valve

Operating fluid: GS 32
