Leybold SOGEVAC SV 28 BI - NEW
Call for Price
In stock
SKU
NEW_SV28BI
| Weight | 82 lbs |
|---|---|
| Motor Power | 1.2 hp |
| Pumping Speed | 23 m3/h |
| Ultimate Pressure | ≤ 5 x 10-2 mbar |
Leybold SOGEVAC SV 28 BI Rotary Vane Vacuum Pump - NEW
The SOGEVAC BI pumps offers beside the well proven advantages of the SOGEVAC B series additionally a one decade better ultimate pressure compared to the B pumps and a high pumping speed stability at low pressure. Thus these pumps can be used as backing pump for some high vacuum pump systems.
- Pumping speed (50 Hz): 23 m³/h
- Pumping speed (60 Hz): 27 m³/h
- Ultimate pressure: 0.05 mbar
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping Speed | |
| 50 Hz | 25 m3 x h-1 |
| 60 Hz | 30 m3 x h-1 |

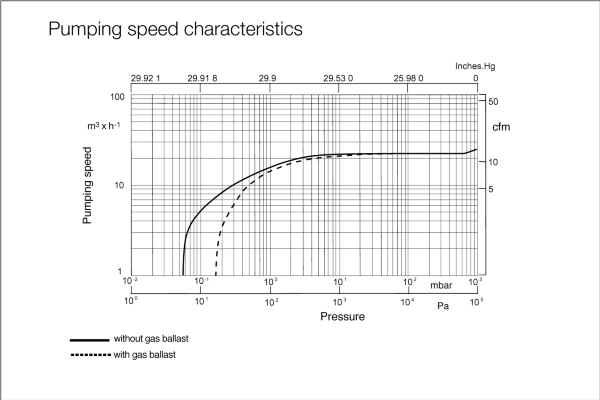

| Pumping speed | |
| 50 Hz | 23 m3 x h-1 |
| 60 Hz | 27 m3 x h-1 |
| Ultimate partial pressure w/o gas ballast | ≤ 0.05 mbar |
| Ultimate total pressure w/ small gas ballast | ≤ 0.5 mbar |
| Water vapor tolerance w/ small gass ballast | 10 mbar |
| Water vapour tolerable load with small gas ballast | 0.07 kg x h-1 |
| Noise level | 54 dBA |
| Main voltage | 230/400 V |
| Motor power | 0.75 kW |
| Protection | IP-55-F |
| Leak rate | 1 x 103 mbar x l/s |
| Oil type / Capacity | GS32 / 0. 5 l or 1.8 l |
| Intake connection | 25 KF |
| Exhaust connection | 25 KF |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Oil Sealed - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV 28 BI Rotary Vane Vacuum Pump - NEW SOGEVAC SV 28 BI Part no. 960271 Pumping speed: 23 m3/h Ultimate pressure: < 5 x 10-2 mbar Three-phase motor: 170-253 / 294-440V, 50Hz // 170-292 / 294-506V, 60Hz w/ gas ballast valve, w/ 0.5 l oil casing SOGEVAC SV 28 BI Part no. 960273 Pumping speed: 23 m3/h Ultimate pressure: < 5 x 10-2 mbar 3-phase motor: 170-253 / 294-440V, 50Hz // 170-292 / 294-506V, 60Hz w/ gas ballast valve, w/ 1.5 l oil casing SOGEVAC SV 28 BI Part no. 960276 Pumping speed: 23 m3/h Ultimate pressure: < 5 x 10-2 mbar Single-phase Motor: 180-264V, 50/60Hz w/ gas ballast valve, w/ 0.5 l oil casing SOGEVAC SV 28 BI Part no. 960277 Pumping speed: 23 m3/h Ultimate pressure: < 5 x 10-2 mbar 1-phase Motor: 180-264V, 50/60Hz w/ gas ballast valve, w/ 1.5 l oil casing SOGEVAC SV 28 BI Part no. 960278 Pumping speed: 23 m3/h Ultimate pressure: < 5 x 10-2 mbar 1-phase Motor: 100V, +10%, -15%, 50/60Hz // 115V, +10%, -15%, 60Hz w/ gas ballast valve, w/ 1.5 l oil casing Operating fluid: LEYBONOL LVO 120
Related Products
-
Leybold SOGEVAC SV 40 BI - NEWCall for Price
-

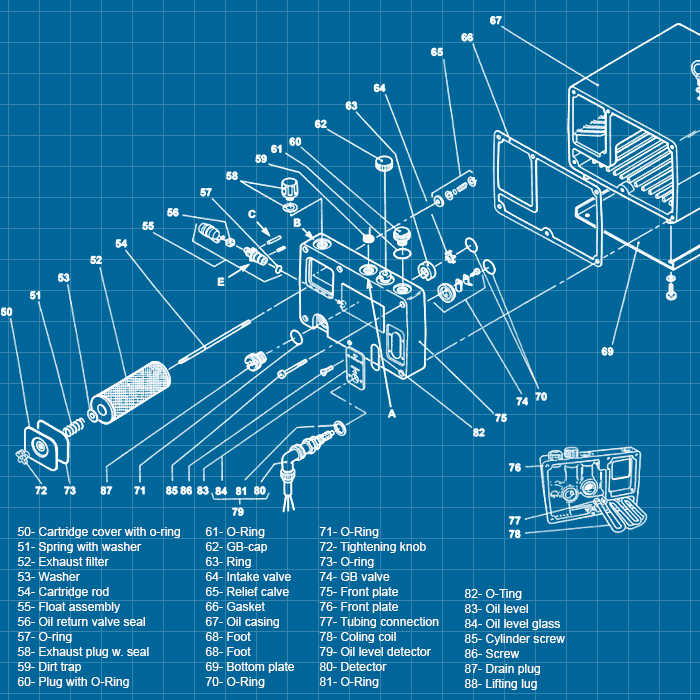

Leybold SV25B - SERVICECall for Price
