Leybold SOGEVAC SV40BI - REBUILT
Weight
95 lbs
Motor Power
1.75 hp
Pumping Speed
30 cfm /h
Ultimate Pressure
≤ 5 x 10-1 mbar

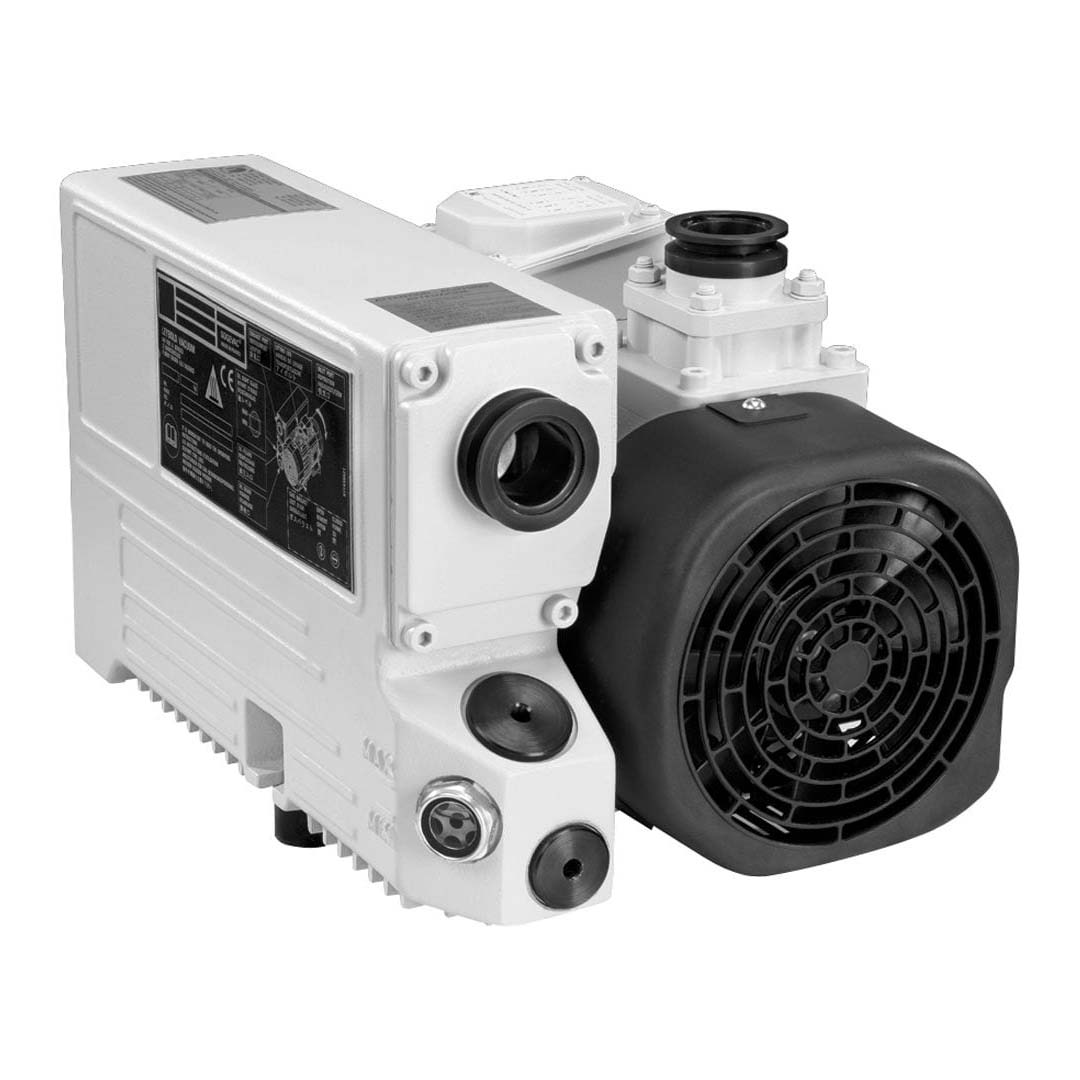

Leybold SOGEVAC SV40BI Rotary Vane Vacuum Pump - REBUILT
PTB Sales' technicians rebuild pumps to OEM specifications led by a Leybold Vacuum factory-trained mechanic. We also offer repair service for your used vacuum pumps. View the other SOGEVAC B models.
Questions? send an email to our sales team!
Inlet connection
DN 40 ISO-KF
Outlet connection
DN 40 ISO-KF
Nominal pumping speed
50 m3 /h
Pumping speed
30 cfm
Ultimate partial pressure w/out gas ballast
< 5 x 10-1 mbar
Ultimate total pressure w/ gas ballast
< 5.0 x 10-3 mbar
Operating fluid capacity
min.
1.0 l
max.
1.0 l
Motor rating
1.3 kW
Rotation speed
1,800 min-1
Motor protection rating
IP55-F
Shipping weight
43 kg (95m lbs)
Specifications
Type
Label
Description
Download
Leybold SOGEVAC SV40 BI - REBUILT
Operating Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV40BI Rotary Vane Vacuum Pump - REBUILT
Part no. 960330 / 960 330
Pumping speed: 40 m3 /h
Ultimate pressure: < 5 x 10-2 mbar
Three-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/out gas ballast valve
Part no. 960331 / 960 331
Pumping speed: 40 m3 /h
Ultimate pressure: < 5 x 10-2 mbar
3-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/ small gas ballast valve
960331V3005 1-phase gas analysis version
960331V3009 1-phase OEM variant
960362V01 PFPE LVO420 PTFE OEM
Operating fluid: LEYBONOL LVO 120
