Leybold SOGEVAC SV65BIFC - REBUILT
Weight
108 lbs
Motor Power
2 hp
Pumping Speed
≤ 50 m3 /h
Ultimate Pressure
≤ 0.2 mbar

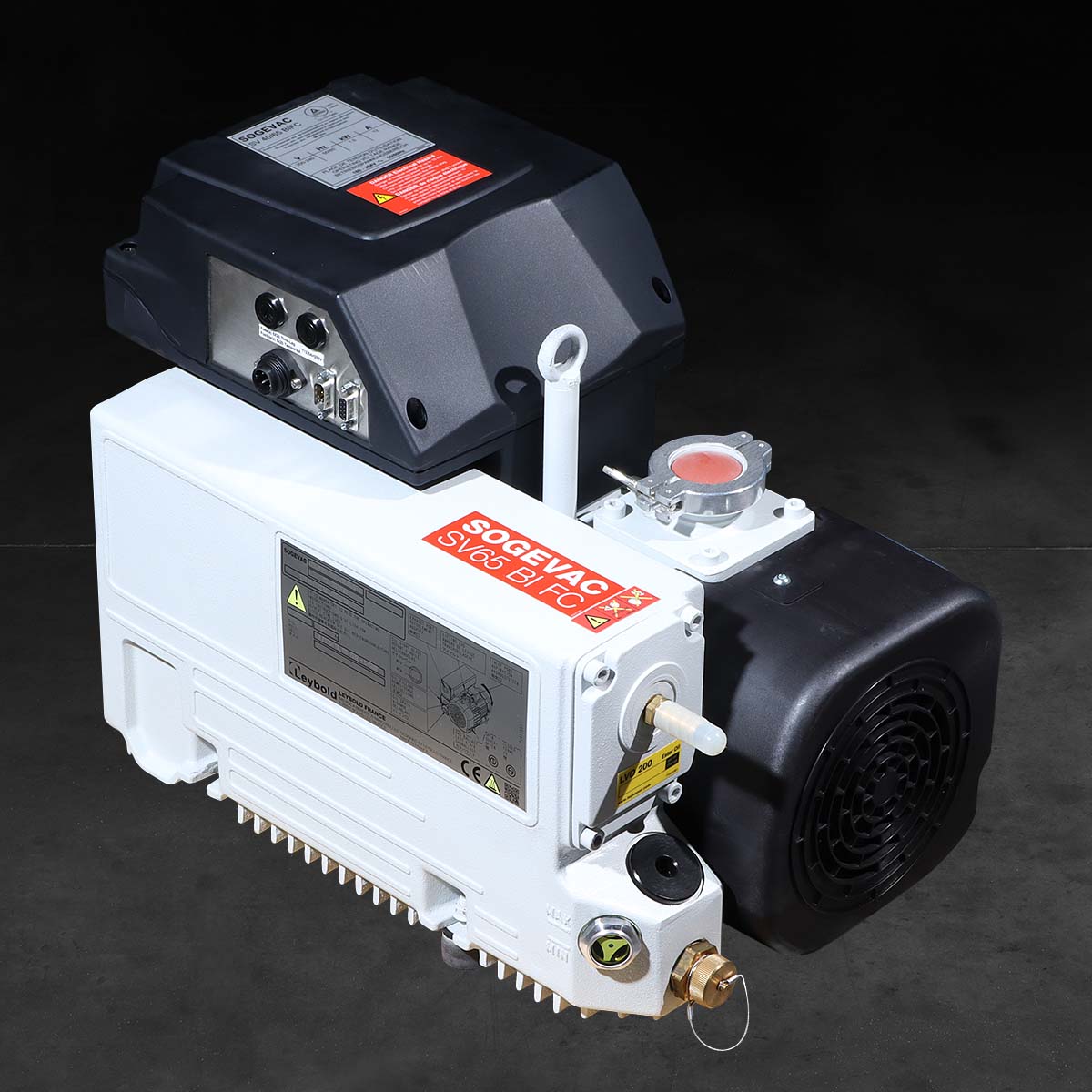

Leybold SOGEVAC SV65BIFC Rotary Vane Vacuum Pump - REBUILT
PTB Sales' technicians rebuild pumps to OEM specifications led by a Leybold Vacuum factory-trained mechanic. We also offer repair service for your used vacuum pumps. View the other SOGEVAC B models.
Pumping speed (50 Hz): 54 m³/h
Pumping speed (60 Hz): 64 m³/h
Ultimate pressure: 0.5 mbar
Questions? send an email to our sales team!
Nominal Speed
50 Hz
59 m3 x h-1
60 Hz
71 m3 x h-1
Pumping speed
50 Hz
≥ 50 m3 x h
60 Hz
≥ 64 m3 x h
Ultimate partial pressure w/out gas ballast
≤ 0.2 mbar
Ultimate total pressure w/ small gas ballast
≤ 0.1 mbar
Ultimate total pressure w/ standard gas ballast
≤ 1.5 mbar
Water vapor tolerance
w/ small gas ballast
10 mbar
w/ standard gas ballast
30 mbar
Water vapor capacity
w/ small gas ballast
0.36 kg x h-1
w/ standard gas ballast
1 kg x h-1
Noise level
60 dBA
Motor power
1.5 kW
Mains voltage
230/400 V
Protection
IP 55-F
Leak rate
1 x 10-3 mbar x l/s
Oil type / Capacity
GS77 / 2 l
Intake connection
11/4
Exhaust connection
11/4
Specifications
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV65BIFC Rotary Vane Vacuum Pump - REBUILT
960465V3001
