Leybold TRIVAC D 65 BCS - NEW

Call for Price

In stock
SKU
NEW_D65BCS
Weight 180 lbs
Motor Power 3 hp
Pumping Speed 65 m3/h
Ultimate Pressure 1 x 10-4 mbar

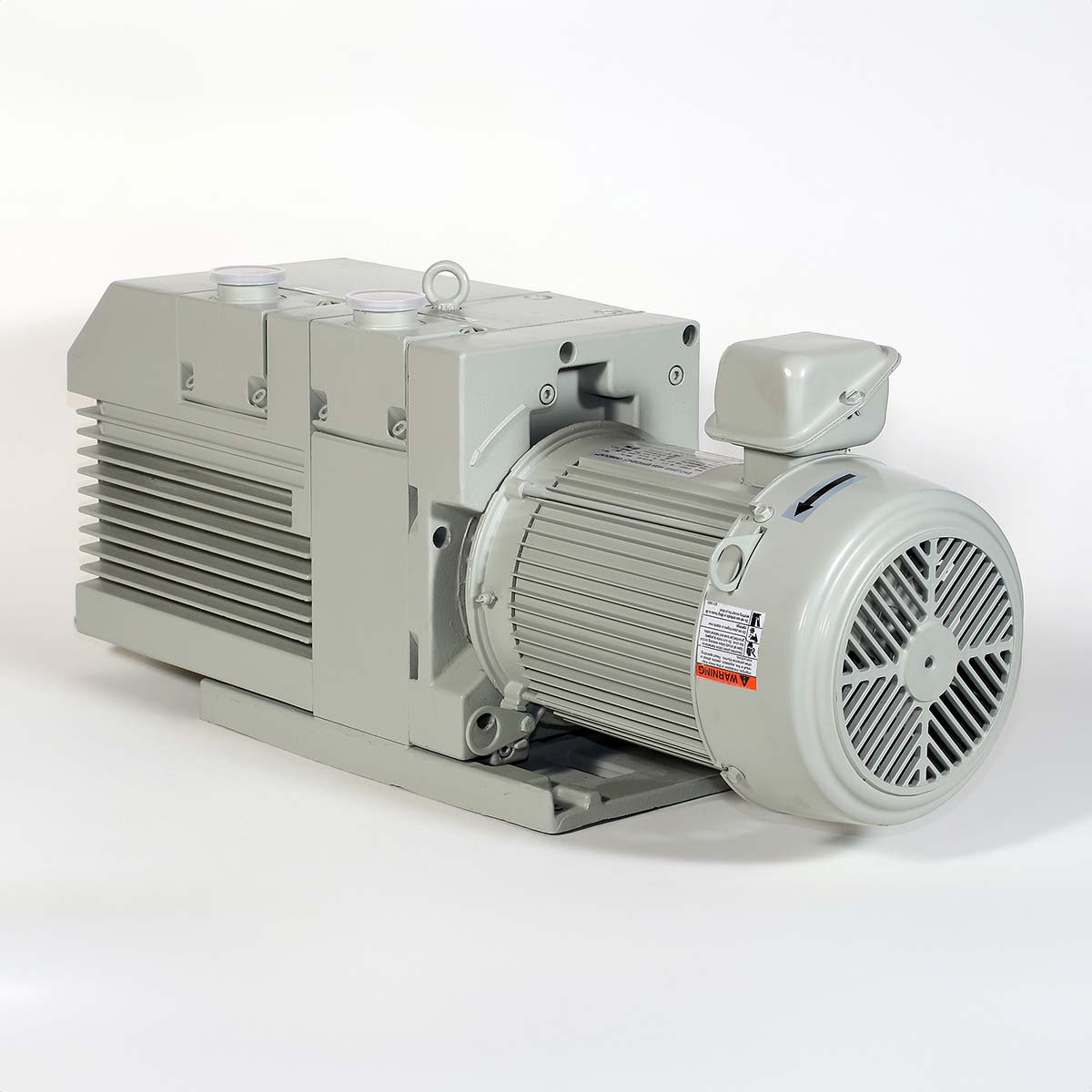

Leybold TRIVAC D 65 BCS Rotary Vane Vacuum Pump - NEW

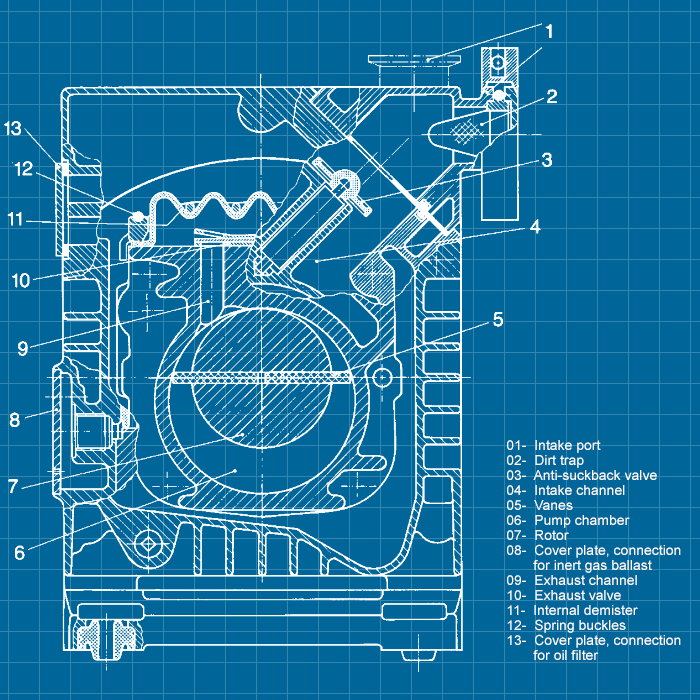

TRIVAC B series pumps are oil sealed vacuum pumps based on the rotary vane principle. The oil injected into the pump chamber is used for sealing, lubrication and cooling purposes. The body of the pump is made of separate components with no additional sealing elements. The components are fitted with dowels to ensure easy disassembly and re-assembly.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Inlet connection DN 40 ISO-KF
Outlet connection DN 40 ISO-KF
Nominal pumping speed at 50 Hz 75.0 m3/h, 44.0 cfm
Nominal pumping speed at 60 Hz 90.0 m3/h, 53.0 cfm
Pumping speed at 50 Hz 65.0 m3/h, 38.0 cfm
Pumping speed at 60 Hz 78.0 m3/h, 46.0 cfm
Ultimate partial pressure w/out gas ballast     < 8.0 x 10-4 mbar, < 6.0 x 10-4 Torr
Ultimate total pressure w/out gas ballast < 1 x 10-4 mbar, < 1.5 x 10-3 Torr
Ultimate total pressure w/ gas ballast < 5.0 x 10-3 mbar, < 3.8 x 10-3 Torr
Water vapor tolerance at 50/60 Hz 40.0 mbar, 30.0 Torr
Water vapor capacity at 50/60 Hz 1.925 g/h
Operating fluid LEYBONOL LVO 100
Operating fluid capacity
    min. 2.0 l, 2.1 qt
    max. 3.3 l, 3.5 qt
Noise level to DIN 45 635
    w/out gas ballast 57 db(A)
    w/ gas ballast 59 db(A)
Mains connection 3-phase, 220-240 / 380-420 V 50 Hz, 3-phase, 240-265 / 415-480 V, 60 Hz
Motor rating 2.2 kW, 3.0 hp
Rotation speed at 50 Hz 1,420 min-1, 1,420 rpm
Rotation speed at 60 Hz 1,710 min-1, 1,710 rpm
Motor protection rating IP 55
Admissible ambient temperature +12 to +40°C, +54 to +104°F
Weight 180 lbs

Specifications

Type Label Description Download
Leybold TRIVAC B / BCS - NEW Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold TRIVAC D 65 BCS Rotary Vane Vacuum Pump - NEW

Part no. 11398 / 113 98
Pumping speed: 65 m3/h
Ultimate pressure: < 2 x 10-3 mbar
Three-phase motor: 230/400V, 50Hz // 250/440V, 60Hz

PFPE Part no. 11399 / 113 99
Pumping speed: 65 m3/h
Ultimate pressure: < 2 x 10-3 mbar
3-phase motor: 230/400V, 50Hz // 250/440V, 60Hz

Operating fluid: LEYBONOL LVO 400

Replaced Part #'s: 913982 / 91398-2, 913992 / 91399-2
