Leybold TRIVAC D40BCS - REBUILT
Call for Price
| Weight | 150 lbs |
|---|---|
| Motor Power | 3 hp |
| Pumping Speed | 24 cfm |
| Ultimate Pressure | < 1.5 x 10-3 Torr |

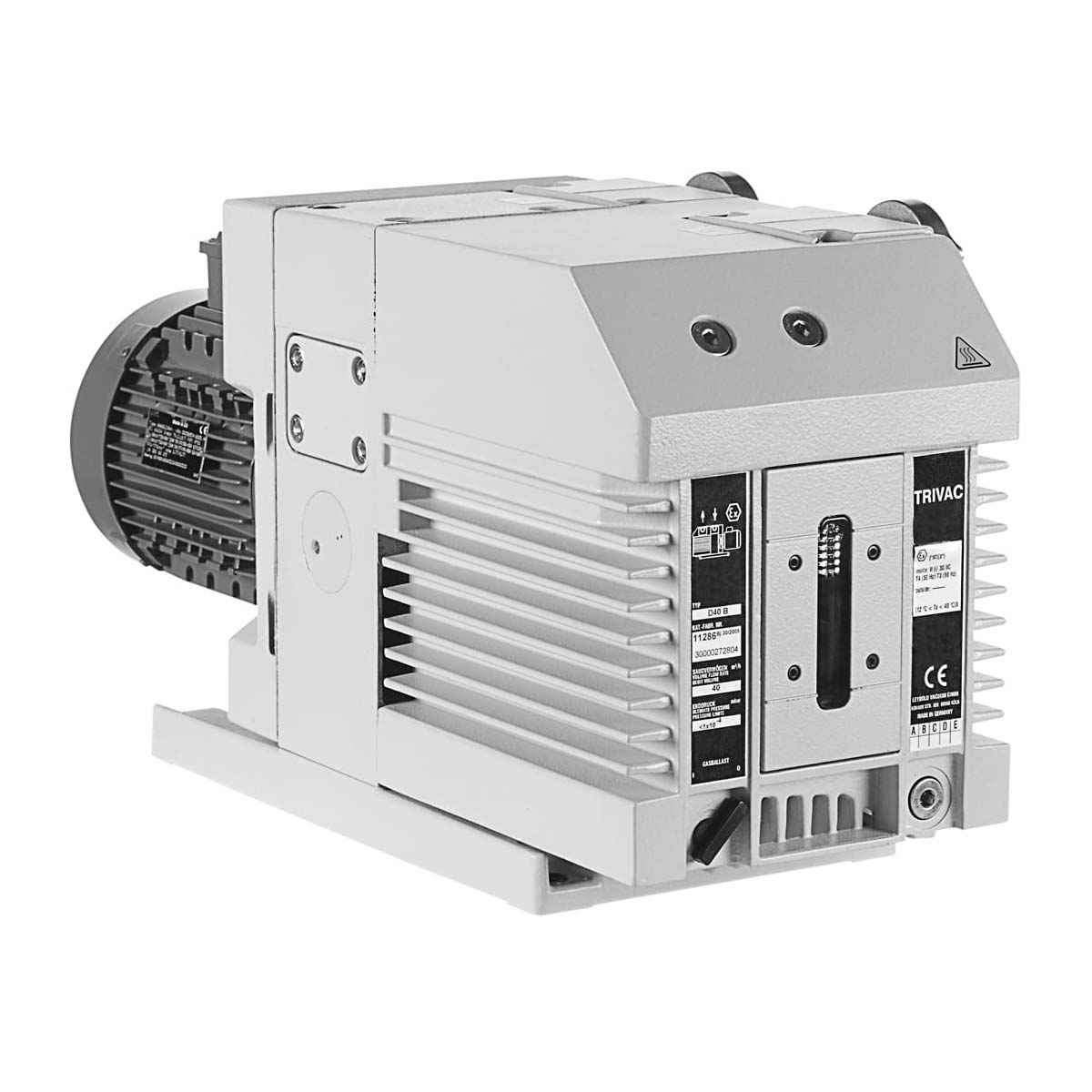

Leybold TRIVAC D40BCS Rotary Vane Vacuum Pump - REBUILT
PTB Sales' technicians rebuild pumps to OEM specifications led by a Leybold Vacuum factory-trained mechanic. We also offer repair service for your used vacuum pumps.

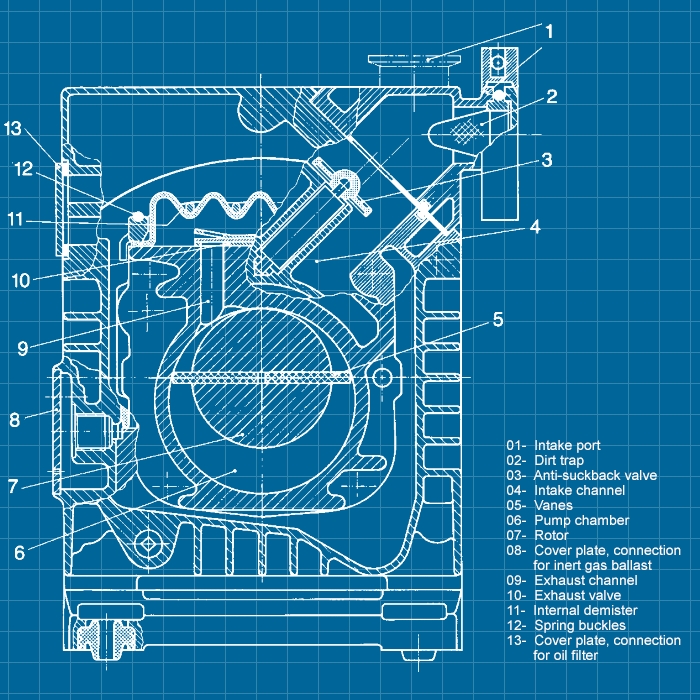

The Leybold Vacuum TRIVAC B are oil-sealed rotary vane vacuum pumps. Oil which is injected into the pump chamber is used for sealing, lubrication and cooling purposes. The pump body is assembled from individual parts without sealing components. The parts are pinned in order to ensure easy disassembly and reassembly of the parts. The pumps are equipped either with single or three-phase AC motors. If the requested voltage is not in stock then we will purchase a new motor and split the cost with you. They run on various vacuum pump oils.
Leybold blower packages are available.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet connection | DN 40 ISO-KF |
| Outlet connection | DN 40 ISO-KF |
| Nominal pumping speed at 50 Hz | 46.0 m3/h, 27.0 cfm |
| Nominal pumping speed at 60 Hz | 55.0 m3/h, 32.5 cfm |
| Pumping speed at 50 Hz | 40.0 m3/h, 24.0 cfm |
| Pumping speed at 60 Hz | 48.0 m3/h, 28.0 cfm |
| Ultimate partial pressure w/out gas ballast | 1.0 x 10-4 mbar, 7.5 x 10-5 Torr |
| Ultimate total pressure w/out gas ballast | < 2.0 x 10-3 mbar, < 1.5 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast | < 5.0 x 10-3 mbar, < 3.8 x 10-3 Torr |
| Water vapor tolerance at 50/60 Hz | 40.0 mbar, 30.0 Torr |
| Water vapor capacity at 50/60 Hz | 1.184 g/h |
| Operating fluid | LEYBONOL LVO 100 |
| Operating fluid capacity | |
| min. | 1.7 l, 1.8 qt |
| max. | 2.6 l, 2.7 qt |
| Noise level to DIN 45 635 | |
| w/out gas ballast | 57 db(A) |
| w/ gas ballast | 59 db(A) |
| Mains connection | 3-phase, 220-240 / 380-420 V 50 Hz, 3-phase, 240-265 / 415-480 V, 60 Hz |
| Motor rating | 2.2 kW, 3.0 hp |
| Rotation speed at 50 Hz | 1,420 min-1, 1,420 rpm |
| Rotation speed at 60 Hz | 1,710 min-1, 1,710 rpm |
| Motor protection rating | IP 55 |
| Admissible ambient temperature | +12 to +40°C, +54 to +104°F |
| Shipping weight | 150 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TRIVAC D40 & 65BCS - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TRIVAC D40BCS Rotary Vane Vacuum Pump - REBUILT Part no. 11388 / 113 88 Pumping speed: 40 m3/h Ultimate pressure: < 2 x 10-3 mbar Three-phase motor: 230/400V, 50Hz // 250/440V, 60Hz PFPE Part no. 11389 / 113 89 Pumping speed: 40 m3/h Ultimate pressure: < 2 x 10-3 mbar 3-phase motor: 230/400V, 50Hz // 250/440V, 60Hz Operating fluid: LEYBONOL LVO 100 Replaced Part #'s: 913882 / 91388-2, 913892 / 91389-2
