Leybold Vacuum TURBO.DRIVE S Frequency Converter - REBUILT
The TURBO.DRIVE S supplies power to the TW series turbo-molecular pumps and is used to control their operation.
The TURBO.DRIVE S is suited for operation of the following pumps:
• TURBOVAC TW 70 H
• TURBOVAC TW 220/150 S, TW 220/150/15 S • TURBOVAC TW 250 S

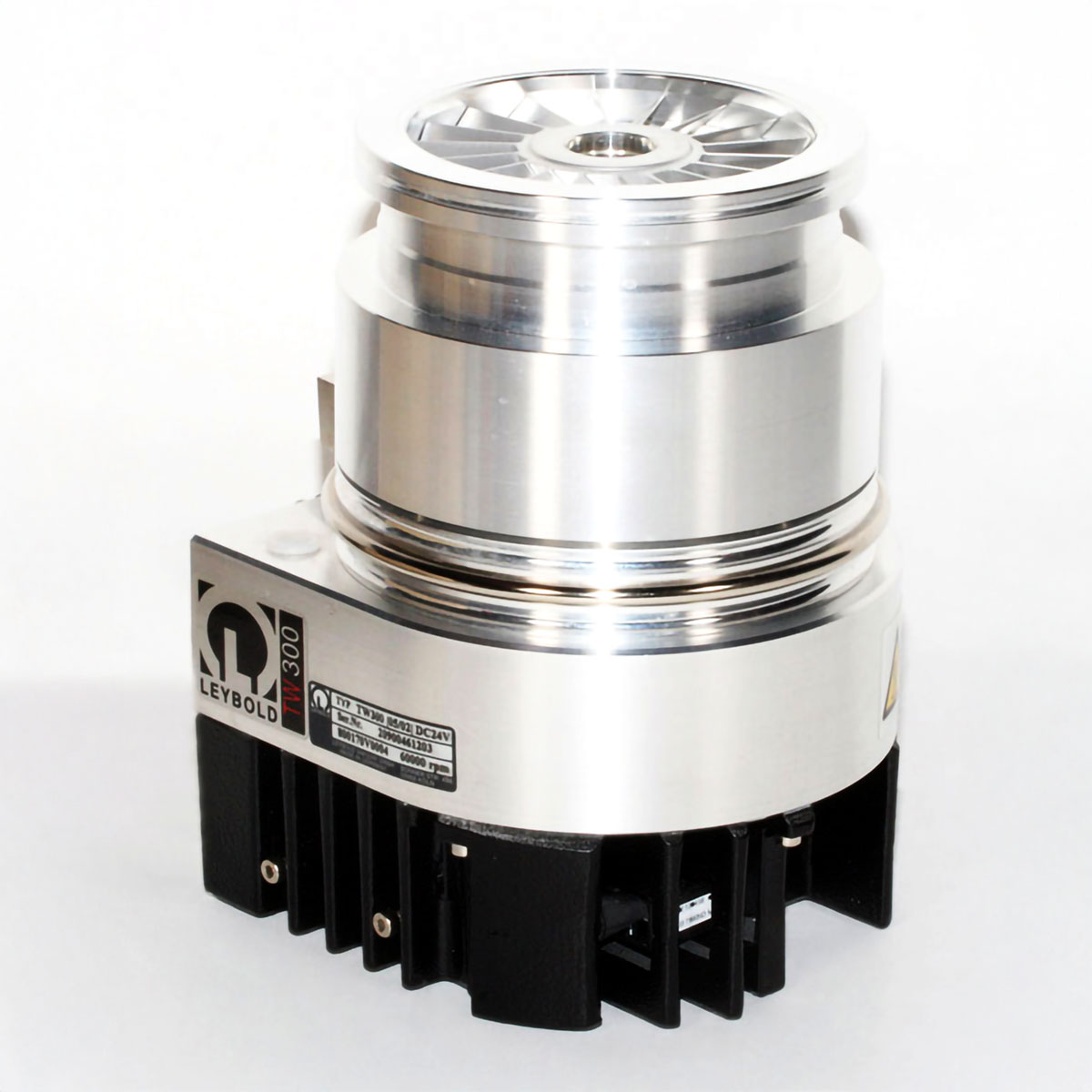

• TURBOVAC TW 300, TW 300 H
Other pumps may only be operated after approval from Leybold or if the operation of such pumps is expressly permitted in the Operating Instructions for the specific pump.
The TURBO.DRIVE S is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable.

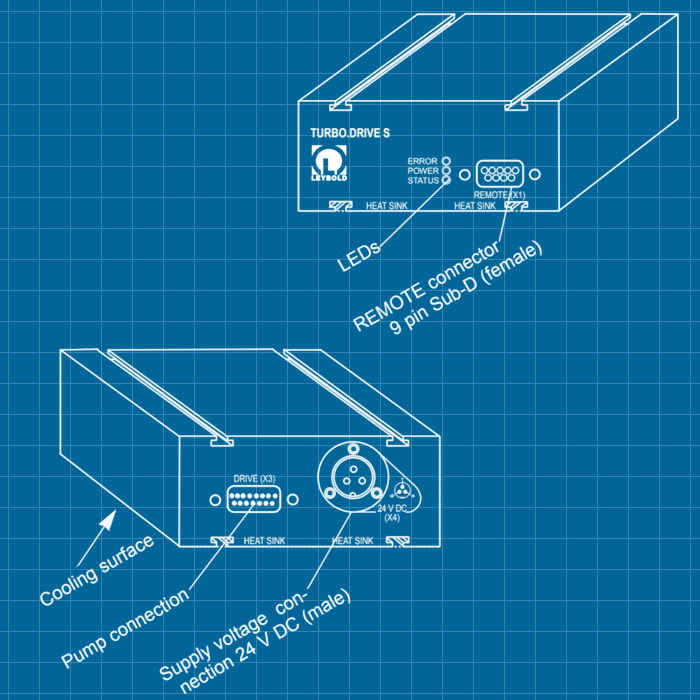

The TURBO.DRIVE S requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMO- TE) and an optional interface for serial communication.
The TURBO.DRIVE S complies with SELV requirements (Safety Extra Low Voltage).
The TURBO.DRIVE S must only be opened by certified Leybold Service Centres. Opening by unauthorised personnel voids warranty.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Supply voltage | 24 V DC ± 5% |
| Residual ripple | < 2% |
| When operating a TW 300, TW 300 H, TW 220/150(/15) S | |
| Max. power consumption | 190 W |
| Max. peak current, input side | 8 A DC |
| Required power output from the power supply | ≥ 200 W |
| When operating a TW 70 H, TW 250 S | |
| Max. power consumption | 140 W |
| Max. peak current, input side | 6 A DC |
| Required power output from the power supply | ≥ 150 W |
| Max. length of the DC cable (shielded) | |
| at 3 x 1.5 mm2 | 5 m |
| at 3 x 2.5 mm2 | 20 m |
| Load capability, relay output | 42 V, 0.5 A |
| Ambient temperature | |
| during operation | 10 - 45°C |
| storage | - 15 - + 70°C |
| Temp. of the cooling surface | 10 - 55°C |
| Only Part No. 800070V0004 | 10 - 50°C |
| Power loss | ≤ 20 W |
| Relative air humidity acc. to DIN EN 60721 | |
| Type of protection | IP 20 |
| Weight, approx. | 0.7 kg |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBO.DRIVE S Frequency Converter - REBUILT Basic unit 800070V0001 with RS 232 interface 800070V0002 with RS 232 interface and mounted heat sink 800070V0005 with RS 485 interface 800070V0003 with RS 485 interface and mounted heat sink 800070V0006 with Profibus interface 800070V0004
