Leybold TURBOVAC TW 300 - REBUILT
Call for Price
In stock
SKU
REBUILT_TW300
| Weight | 45 lbs |
|---|---|
| Pumping Speed | 240 l/s |
| Ultimate Pressure | 2 x 10-8 mbar |
Leybold Vacuum TURBOVAC TW 300 Turbomolecular Pump - REBUILT
We offer repair service and are capable of rebuilding, balancing and testing this pump. View our inventory of Leybold Vacuum turbo pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TURBOVAC | TW 300 | TW 300 H | ||
|---|---|---|---|---|
| High-vacuum connection | DN 100 ISO-K DN 160 ISO-K |
DN 100 CF | DN 100 ISO-K | DN 100 CF |
| Pumping speed at 10-5 / 10-3 mbar | ||||
| N2 | 240/240 l/s | |||
| Ar | 230/230 l/s | 240/240 l/s | ||
| H2 | 140/125 l/s | 160/140 l/s | ||
| He | 230/220 l/s | 240/230 l/s | ||
| Ultimate pressure | ||||
| w/ two-stage, oil-sealed rotary vane pump | < 2 x 10-8 mbar | < 2 x 10-10 mbar | < 1 x 10-8 mbar | < 1 x 10-10 mbar |
| w/ ECODRY M 15 | - | < 8 x 10-10 mbar | - | < 2 x 10-10 mbar |
| w/ diaphragm pump | - | < 4 x 10-9 mbar | - | < 1 x 10-9 mbar |
| Max. permissible forevacuum pressure for N2 | < 5 mbar water-cooled / < 1 mbar air-cooled | |||
| Recommended forevacuum pumps | ||||
| TRIVAC | D 2,5 E | |||
| ECODRY | M 15 | |||
| DIVAC diaphragm pump | 2.5 VT | |||
| TRIVAC @ purge gas operation | D 8 B | |||
| Operating speed | 60,000 rpm | |||
| Run-up time | 4 min | |||
| Forevacuum / venting connection | DN 16 KF | |||
| Weight | ||||
| w/out frequency converter | 6.0 kg | |||
| w/ frequency converter | 6.8 kg | |||
| Noise level | < 49 dB(A) | |||
| Type of protection | IP 20 | |||
| Ambient temperature | ||||
| during operation, water-cooled pump | +15 to +35°C | |||
| during operation, air-cooled pump | +15 to +30°C | |||
| storage | -15 to +70°C | |||
| Max. rel. air humidity | 95% (non-condensing) | |||
| Purge gas flow | 12 sccm / 0.2 mbar l/s | |||
| Purge gas | Nitrogen, argon or similar | |||
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TURBOVAC TW 300 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC TW 300 Turbomolecular Pump - REBUILT 800011V0001 TURBOVAC TW 300 100 ISO-K w/o TDS 800011V0002 TURBOVAC TW 300 100 CF w/o TDS 800011V0003 TURBOVAC TW 300 100 ISO-K w/o TDS 800011V0004 TURBOVAC TW 300 100 CF w/o TDS 800011V0006 TURBOVAC TW 300 100 CF w/o TDS 800011V0007 TURBOVAC TW 300 100 ISO-K TDS/RS 800011V0009 TURBOVAC TW 300 100 ISO-K Air TDS/R 800011V0010 TURBOVAC TW 300 100 CF TDS/RS485 800011V0011 TURBOVAC TW 300 100 ISO-K TDS/RS 800011V0012 TURBOVAC TW 300 100 CF TDS/RS485 800011V0013 TURBOVAC TW 300 160 ISO-K TDS/RS 800011V0016 TURBOVAC TW 300 160 ISO-K TDS/RS 800011V0018 TURBOVAC TW 300 100 ISO-K Air TDS/R 800012V0013 TURBOVAC TW 300 H 100 ISO-K TDS/R 800012V0014 TURBOVAC TW 300 H 100 CF TDS/RS23 800170V0002 TURBOVAC TW 300 H MODIFIED TDS/232 800170V0004 TURBOVAC TW 300 100 ISO-K water TDS 800170V2101 TURBOVAC TW 300 100 ISO-K w/o TD300 800170V2102 TURBOVAC TW 300 H 100 CF Air TD300 800170V2103 TURBOVAC TW 300 100 CF Water TD300 800170V2104 TURBOVAC TW 300 H 100 CF Air TD300 800170V2105 TURBOVAC TW 300 100 ISO-K Air TD300 800170V2106 TURBOVAC TW 300 100 ISO-K water TD300 800170V2107 TURBOVAC TW 300 H 100 ISO-K AC TD300 RS485 800170V2108 TURBOVAC TW 300 160 ISO-K TDS/RS
Related Products
-

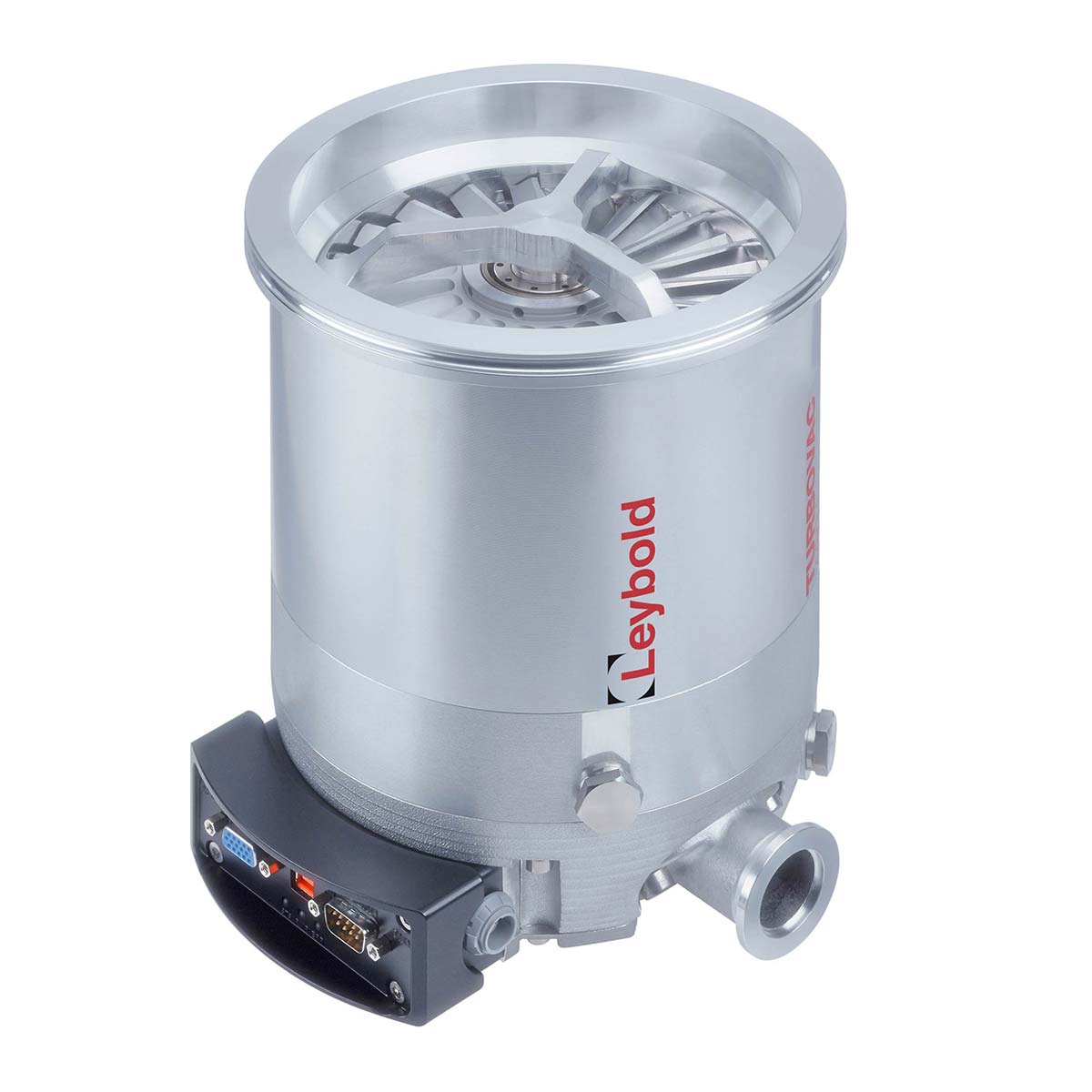

Leybold TURBOVAC 450 i / iX - NEWCall for Price
-

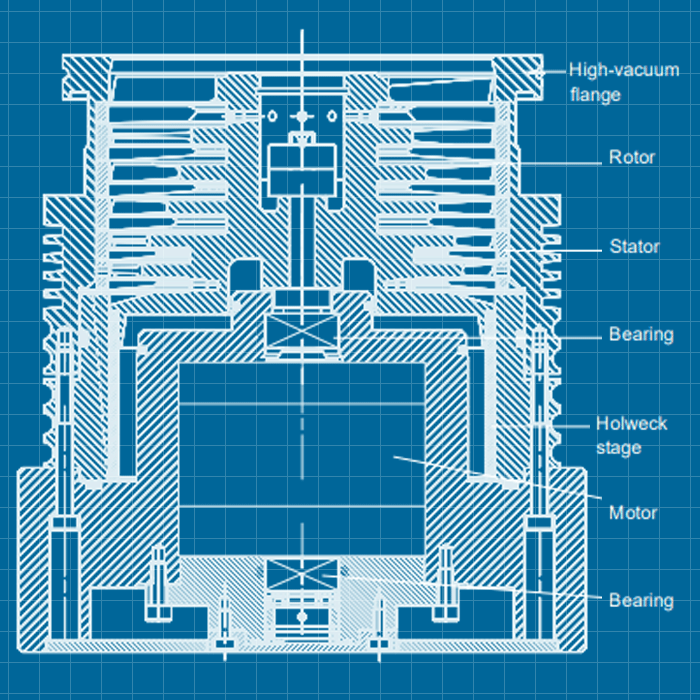

Leybold TW 300 - SERVICECall for Price
