Leybold TURBO.DRIVE TD 20 - REBUILT
Call for Price
In stock
SKU
REBUILT_TD20

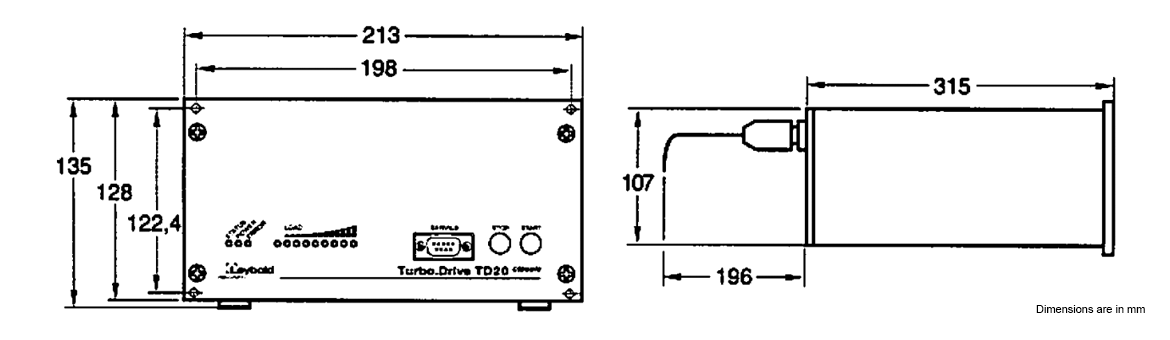

| Height | 135 mm |
|---|---|
| Width | 213 mm |
| Length | 315 mm |
| Weight | 8.8 lbs |
Leybold Vacuum TURBO.DRIVE TD 20 Classic Frequency Converter - REBUILT
For operating and controlling of the TURBOVAC turbomolecular vacuum pumps an electronic frequency converter is essential. The frequency converter must match to vacuum pump. Beside bench top units and units for rack mounting there are in some cases also converters which are directly integrated within the vacuum pump. For communication and system integration several interfaces are available.
Features:
- Benchtop unit
- Display of operating status
- Control pushbuttons and display on the front panel
- Inputs for remote control and process control (RS 232 C)
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Mains connection | 100 to 240 V (-15 % / +10 %) 50/60 Hz |
| Power consumption tolerance including options | < 500 VA |
| Power consumption of the TURBOVAC | < 400 VA |
| Power output (motor) | |
| Nominal voltage | 3 x 47 V |
| Motor current limitation | |
| Acceleration (max. 10 min.) | 5 A |
| Continuous operation | 3.5 A |
| Frequency | 0 to 835 Hz |
| TURBOVAC speed ratings | |
| TURBOVAC 151 | 49,980 min-1 |
| TURBOVAC 361 | 45,000 min-1 |
| TURBOVAC 600 | 36,000 min-1 |
| TURBOVAC 1000 | 36,000 min-1 |
| TURBOVAC 1100 | 30,000 min-1 |
| Ambient temperature | 0 to +45°C (+32 to +113°F) |
| Storage temperature | -25°C to +70°C |
| Relative air humidity | 5 to 85% (nono-condensing) |
| Type of protection to EN 6059 | IP 20 |
| Electrical safety to EN 61010-1 | |
| Interference radiation to 61326-1 | Class A |
| EMC to IEC 801-2 | Severity 2 |
| Dimensions (W x H x D) | 1/2 19", 3HU |
| Weight, approx | 4.0 kg (8.8 lbs) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TURBO.DRIVE TD 20 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

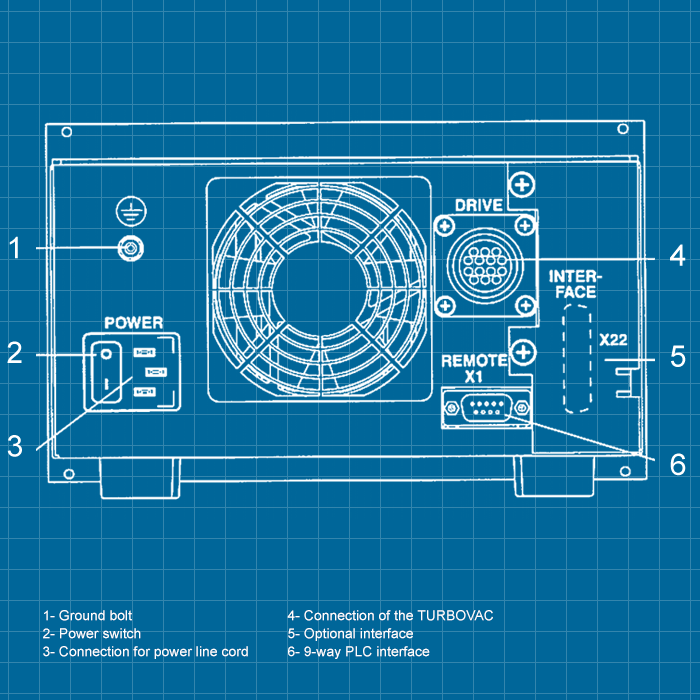

Leybold Vacuum TURBO.DRIVE TD 20 Classic Frequency Converter - REBUILT The Turbo.Drive TD20 classic is equipped as standard with a 9-way PLC interface and optionally with one more: 800075V0001 standard 800075V0002 w/ additional RS 232 interface 800075V0003 w/ additional Profibus interface 800075V0004 w/ additional RS 485 interface 800075V0005 w/ additional 25-way PLC interface 800075V0006 w/ additional DeviceNet interface 800075V0007 w/ additional Ethernet/IP interface 800075V0008 short pigtail with connector for older pumps
