Leybold TURBO.DRIVE TD 400 - REBUILT
Call for Price
In stock
SKU
REBUILT_TD400
| Height | 14 mm |
|---|---|
| Width | 14 mm |
| Length | 14 mm |
| Weight | 10 lbs |

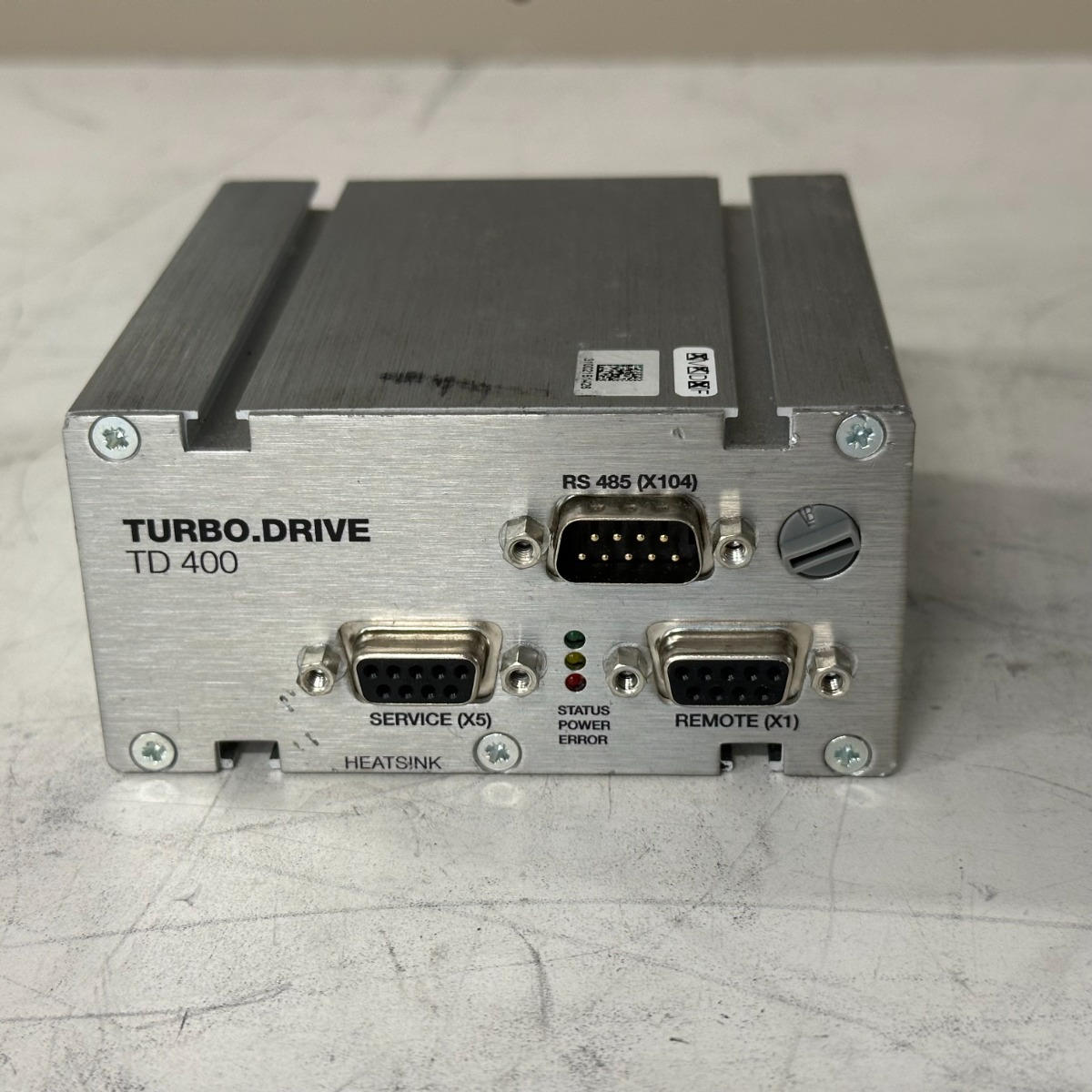

Leybold Vacuum TURBO.DRIVE TD 400 Frequency Converter - REBUILT
For operating and controlling of the TURBOVAC turbomolecular vacuum pumps an electronic frequency converter is essential. The frequency converter must match to vacuum pump. Beside bench top units and units for rack mounting there are in some cases also converters which are directly integrated within the vacuum pump. For communication and system integration several interfaces are available.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Mains connection | V DC | 24 |
| Max current consumption | A | 8 |
| Max power consumption | W | 190 |
| Max output voltage | V | 3 x 24 |
| Interface | Without RS 232 C, RS 485 C, Profibus or 25-way strip | |
| Protection rating | IP | 20 |
| Admissible ambient temperature | °C (°F) | 5 to 45 (41 to 113) |

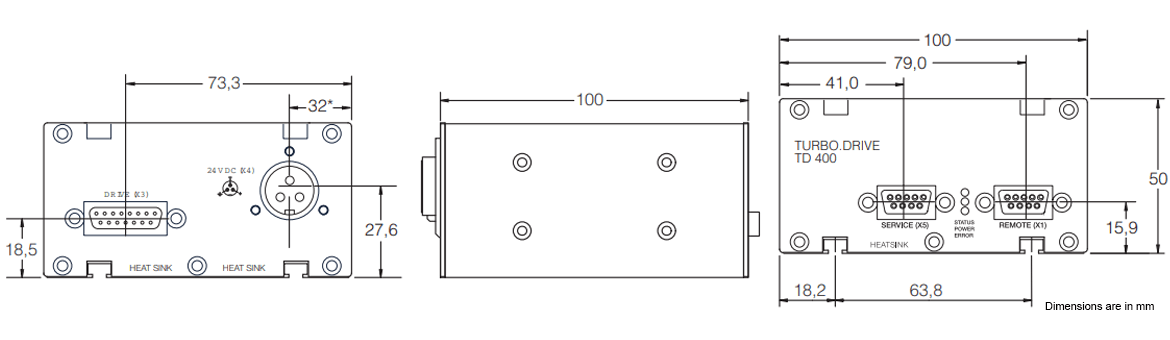

| Dimensions (W x H x D) | mm (in ) | 213 x 128 x 315 (8.39 x 5.04 x 12.40) |
| Weight, approx | kgs(lbs) | 4.0 (8.8) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Oerlikon Leybold TURBO.DRIVE TD 400 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBO.DRIVE TD 400 Frequency Converter - REBUILT RS 232 interface Part no. 800073V0002 Mains connection: 24 V DC RS 485 interface Part no. 800073V0003 Mains connection: 24 V DC Profibus interface Part no. 800073V0004 Mains connection: 24 V DC USB interface Part no. 800073V0008 Mains connection: 24 V DC
