Leybold TURBOLAB Core 250 i - NEW

Call for Price

In stock
SKU
NEW_TLCore250i
Weight 60 lbs
Pumping Speed 250 l/s
Ultimate Pressure < 8 x 10-8 mbar

Leybold TURBOLAB Core 250 i Vacuum Pump - NEW

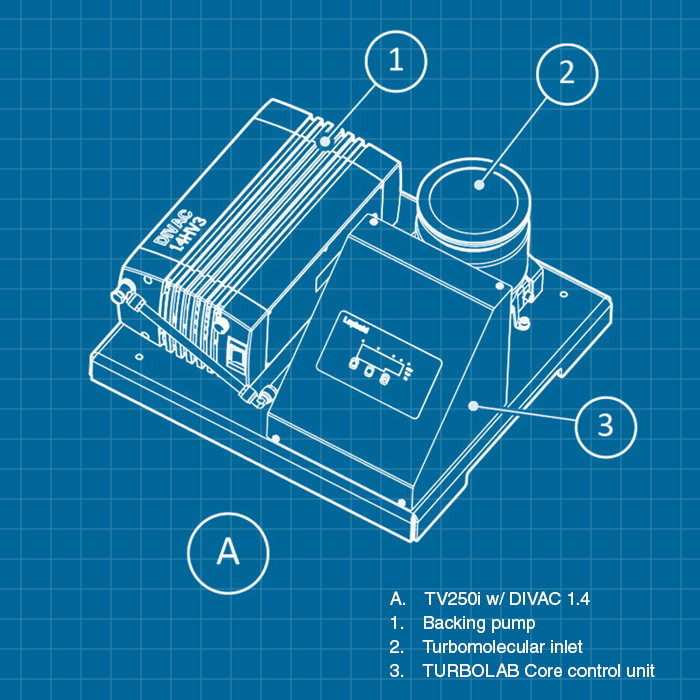

This entry level pumping station incorporates a turbomolecular pump and a backing pump together with a simple controller, all 3 fitted on a robust baseplate, making it the ideal solution for many applications.

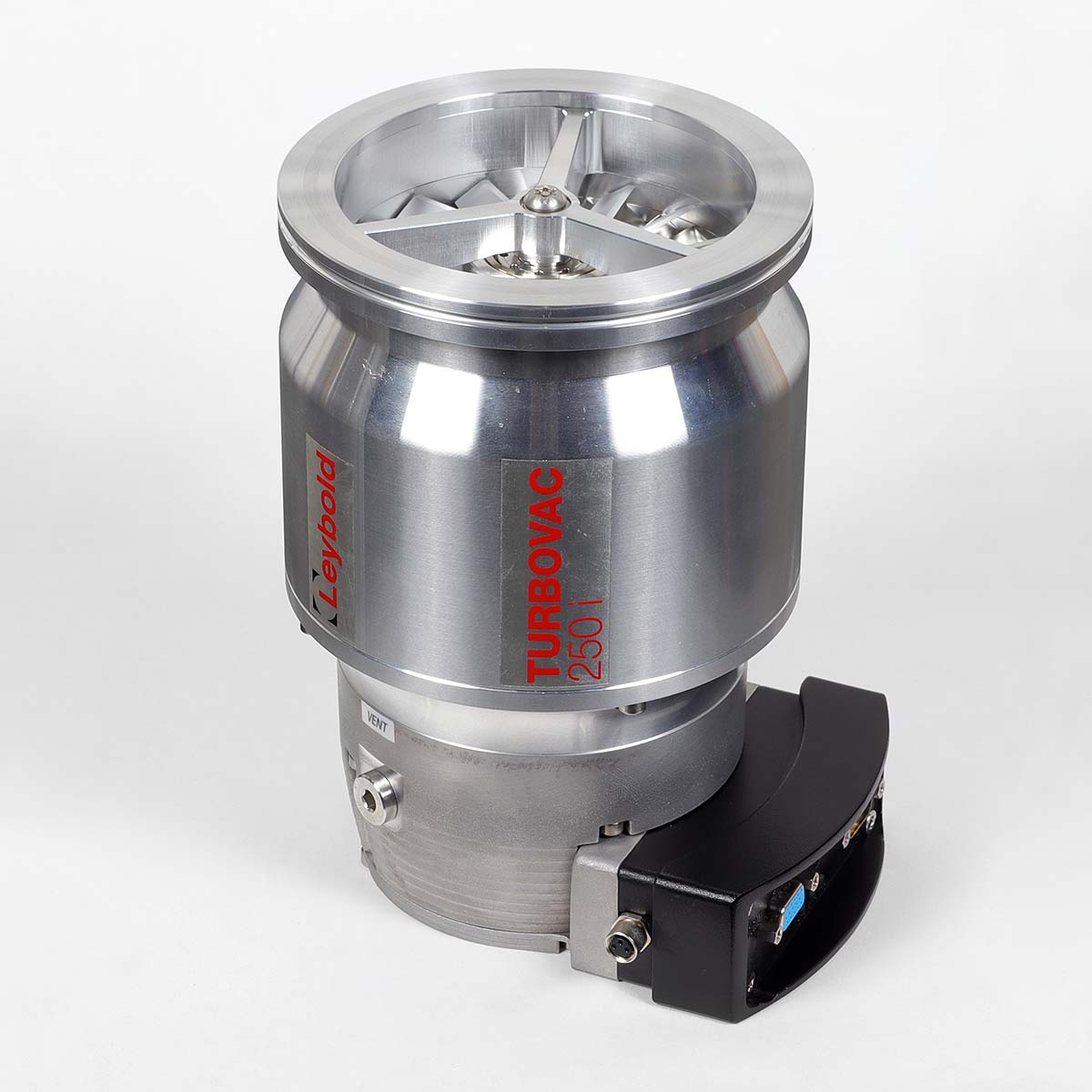

The TURBOLAB Core comes with a choice of 2 TURBOVAC i turbomolecular pumps: so you have the option to select a TURBOVAC 90 i or a TURBOVAC 250 i depending on your pumping speed requirements.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

High vacuum connection DN 100 ISO-K or 100 CF
Pumping speed for N2 250 l/s
Ultimate pressure 8 x 10-8 mbar
Mains supply 110 V
Power consumption, max. 110 V 1760 VA
Weight 27 kg / 60 lbs
Accessories 6
Gauges 2


Specs

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold TURBOLAB Core 250 Vacuum Pump - NEW

501592V00001000 63 ISO-K
501592V00200000 63 ISO-K
501592V00200000 DN 63 CF, SCROLLVAC 7 plus
501592V01041000 DN 63 CF, SCROLLVAC 15 plus
501592V01080000 DN 63 CF, D4B 110V
501592V01120000 DN 63 CF, D4B 230V
501592V01210000 DN 63 CF, No Backing pump
501592V00210000 DN 63 ISO-K, No Backing pump
501592V00021000 DN 63 ISO-K, SCROLLVAC 7 plus
501592V00041000 DN 63 ISO-K, SCROLLVAC 15 plus
501592V00080000 DN 63 ISO-K, D4B 110V
501592V00120000 DN 63 ISO-K, D4B 230V
501592V00130000 DN 63 ISO-K, D8B 230V
