Leybold TURBOTRONIK NT 151 / 361
Call for Price
In stock
SKU
REBUILT_NT151/361

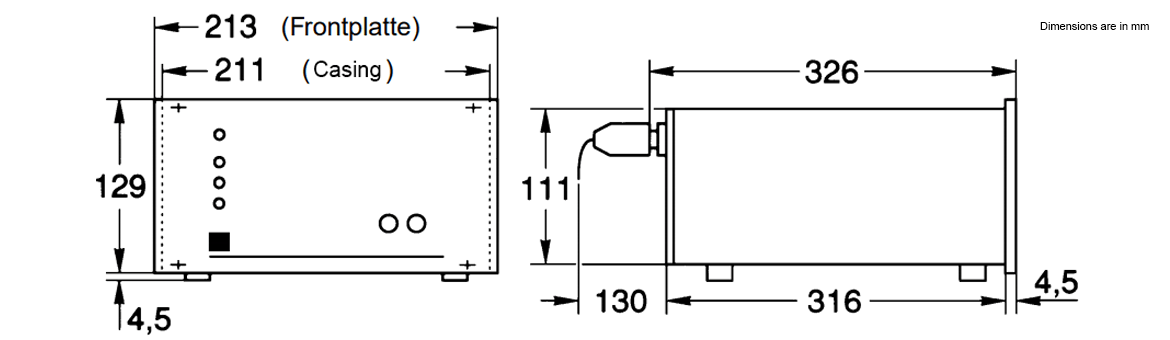

| Height | 129 mm |
|---|---|
| Width | 213 mm |
| Length | 326 mm |
| Weight | 16 lbs |
Leybold Vacuum TURBOTRONIK NT 151 / 361 Frequency Converter
View our inventory of Leybold turbo controllers.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Mains voltage ranges, selectable | 100/120/220/240 V, ±10% |
| Mains frequency | 50/60 Hz |
| Power consumption of the TURBOVAC | |
| During acceleration (max. 30 min.) | 680 VA |
| Continuously, max. | 480 VA |
| Briefly (0.5 s) | 750 VA |
| Output for the motor nominal voltage | 3 x 42 V rms |
| Current limiting (intermediate circuit current) | 5 A |
| Nominal speed of the TURBOVAC | |
| 150/151 | 50,000 min-1 = 833 Hz |
| 360/361 | 45,000 min-1 = 750 Hz |
| Max. loading of the relay contacts | 50 V AC/4 A, 30 V DC/1 A |
| Dimensions | 1/2 19", 3 HU* |
| Weight | 8.5 kg |
| Operating temperature, with sufficient convection | 0 - 40°C |
| Storage temperature | -25°C to +70°C |
| Electrical safety as to | IEC 1010 / EN 61010 / VDE 0411 |
| EMV interference emission as to | EN 50081-1 / VDE 0839 Part 81-1, limit value B |
| EMV resistance to interference | EN 50082-2 / VDE 0839 Part 82-2, test level III |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TURBOTRONIK NT 151/361 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOTRONIK NT 151 / 361 Frequency Converter 85715 / 857 15 230V 85716 / 857 16 120V 85717 / 857 17 100V 85718 / 857 18 SH (100V) 85719 / 857 19 230V w/out mains lead
