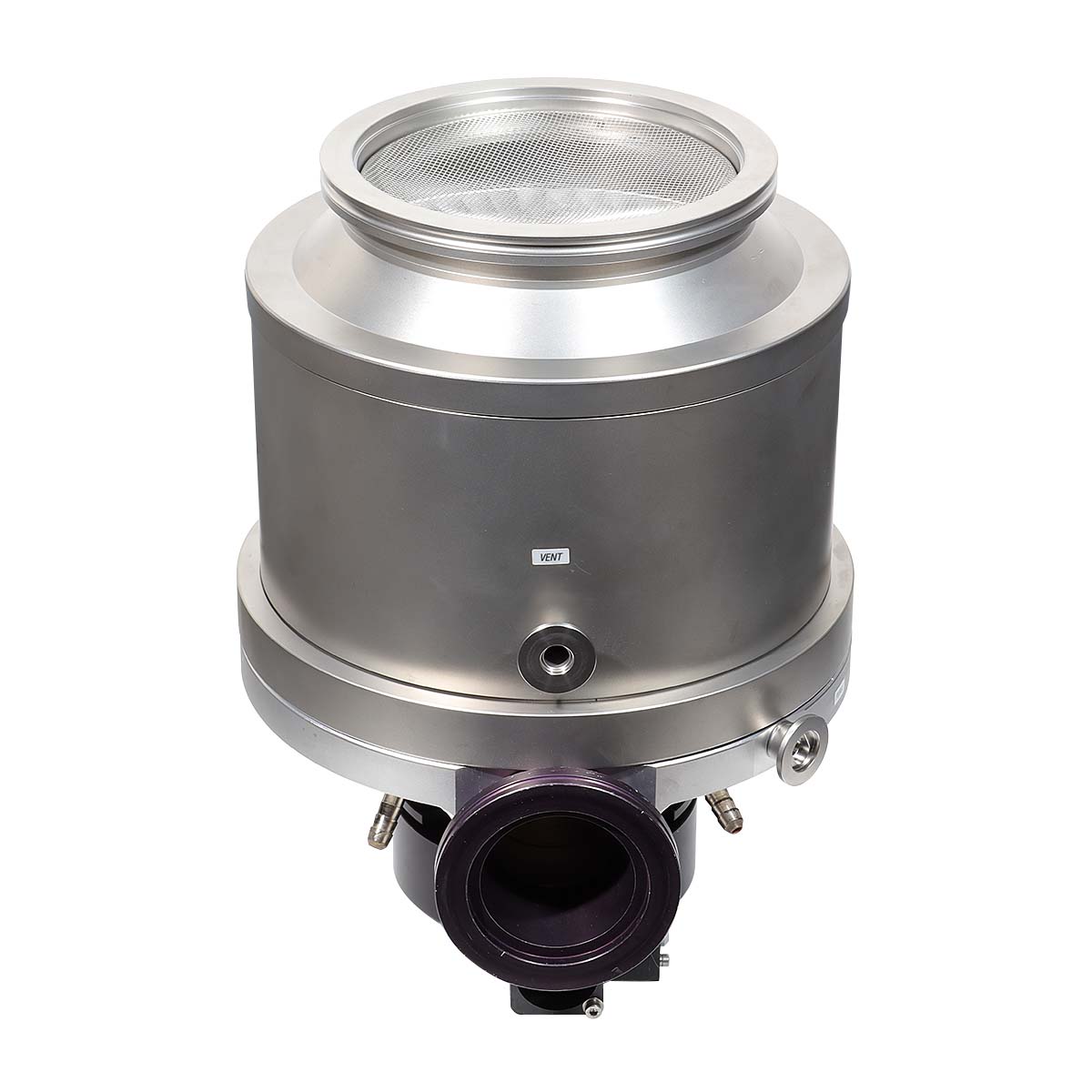

Leybold TURBOVAC 1000 C - REBUILT
Weight
55.10 lbs
Pumping Speed
850 l/s
Ultimate Pressure
1 x 10-10 mbar
Leybold Vacuum TURBOVAC 1000 C Turbomolecular Pump - REBUILT
Sold with a one year warranty. We offer repair service and are capable of rebuilding, balancing and testing this pump. View our inventory of Leybold Vacuum turbo pumps .
Typical Applications
Evaporation and sputtering systems
Metallurgy
Research systems
Technical Features
Robust rotor design
Installation in any orientation
Highest pumping speed and highest throughput
Bearing temperature measurement through the TURBO.DRIVE TD 20 classic
Seal gas connection
Venting connection
Advantages to the User
Installation in any orientation
Highly reliable due to hybrid ceramic ball bearings
Standard model: water cooling
Purge gas facility
Questions? send an email to our sales team!
Inlet flange
DN 160 ISO-K • 100 CF
DN 200 ISO-K • 160 CF
DN 250 ISO-K
Pumping speed
N2 l/s
850
1,100
1,150
He l/s
880
975
1,000
H2 l/s
900
970
1,000
Max. gas throughput
N2 mbar x l/s
6.5
Compression ratio
N2
> 109
He
5 x 104
H2
2 x 103
Ultimate pressure mbar (Torr)
< 10-10 (< 10-10 )
Operating speed
36,000 min-1
Run-up time at 95% speed of nominal speed
9 min
Max. continuous inlet pressure mbar (Torr)
1 x 10-2 (0.75 x 10-2 )
Foreline connection
KF40
Mounting position
Any
Bearing type
Grease/ceramic ball bearing
Corrosive version (C)
Yes
Cooling
Standard: Water • Available: Air
Recommended forevacuum pump
Standard
TRIVAC D 25 B / D 40 B
Purge gas
TRIVAC D 40 B / D 65 B
Weight
25 kg (55.1 lbs)
Frequency converter
TD 20 , NT 20 , NT 1000/1500
Specifications
Type
Label
Description
Download
Leybold TURBOVAC 50 to 1000 - REBUILT
Operating Instructions
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC 1000 C Turbomolecular Pump - REBUILT
All: Ultimate pressure: < 1 x 10-10 mbar
All: water-cooled
DN 160 ISO-K
Part no. 85535 / 855 35
Pumping speed: 850 l/s N2
Connecting flange high-vacuum: DN 160 ISO-K
Connecting flange fore-vacuum: DN 40 ISO-KF
DN 160 ISO-K
Part no. 85538 / 855 38
Pumping speed: 850 l/s N2
Connecting flange high-vacuum: DN 160 ISO-K
Connecting flange fore-vacuum: DN 63 ISO-K
DN 160 CF
Part no. 85491 / 854 91
Pumping speed: 850 l/s N2
Connecting flange high-vacuum: DN 160 CF
Connecting flange fore-vacuum: DN 40 ISO-KF
DN 200 ISO-K
Part no. 15300 / 153 00
Pumping speed: 1,100 l/s N2
Connecting flange high-vacuum: DN 200 ISO-K
Connecting flange fore-vacuum: DN 40 ISO-KF
DN 200 CF
Part no. 11764 / 117 64
Pumping speed: 1,100 l/s N2
Connecting flange high-vacuum: DN 200 CF
Connecting flange fore-vacuum: DN 40 ISO-KF
DN 250 ISO-K
Part no. 85536 / 855 36
Pumping speed: 1,150 l/s N2
Connecting flange high-vacuum: DN 250 ISO-K
Connecting flange fore-vacuum: DN 40 ISO-KF
DN 250 ISO-K
Part no. 85539 / 855 39
Pumping speed: 1,150 l/s N2
Connecting flange high-vacuum: DN 250 ISO-K
Connecting flange fore-vacuum: DN 63 ISO-K
1000 MC 85694 / 856 94
1000 89589 / 895 89
