Leybold TURBOVAC 151 / C - NEW
Call for Price
In stock
SKU
NEW_TMP151C
| Weight | 17.60 lbs |
|---|---|
| Pumping Speed | 145 l/s |
| Ultimate Pressure | < 1 x 10-10 |

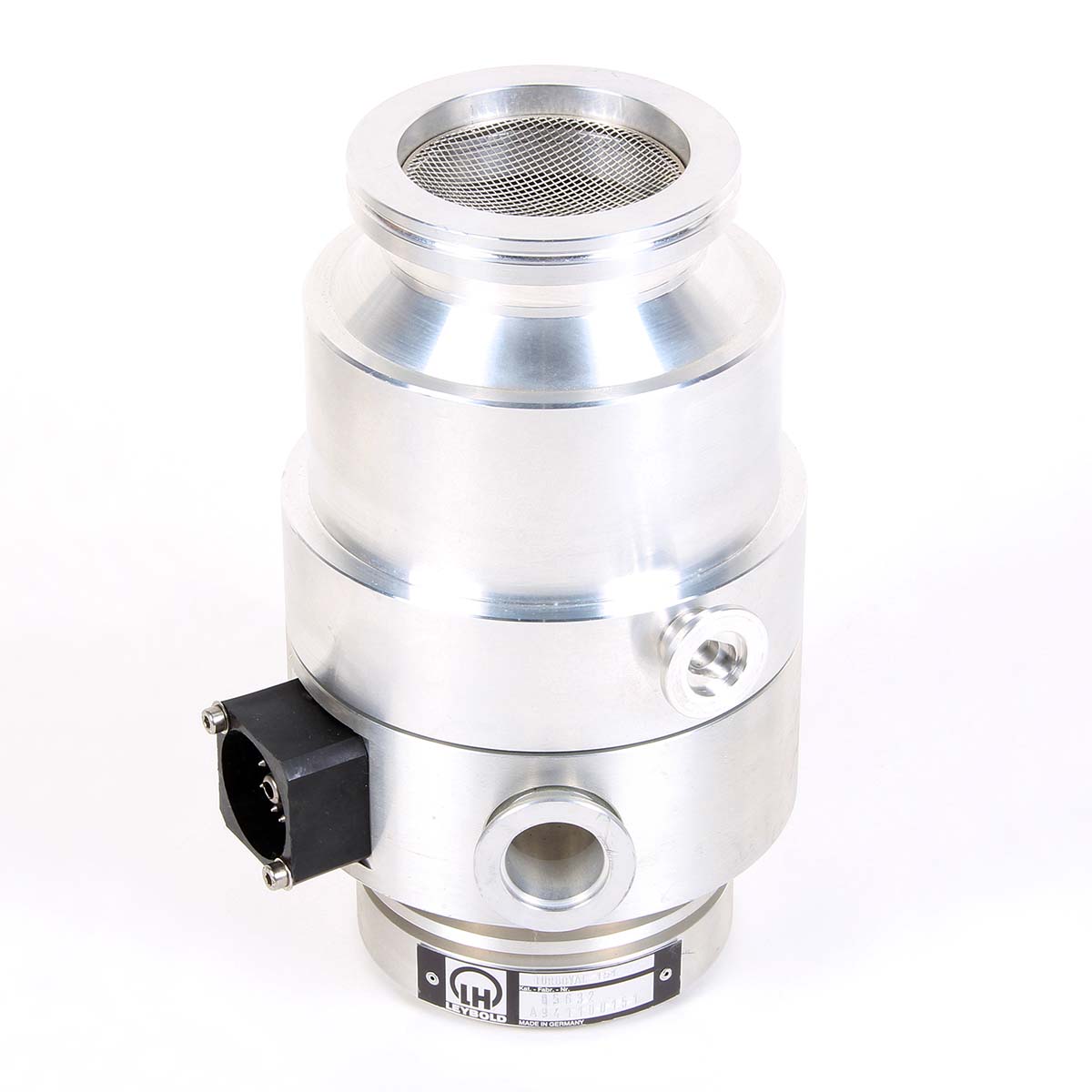

Leybold TURBOVAC 151 / C Turbomolecular Vacuum Pump - NEW
The TURBOVAC turbomolecular vacuum pumps with mechanical rotor suspension are used in the pressure range from 10-1 mbar (0.75 x 10-1 Torr) to 10-10 mbar (0.75 x 10-1 Torr). Pumping speeds for air vary from 35 l/s to 2,400 l/s. Because of its compact design, the most reliable ceramics ball bearings and the simplicity of operation, this line of pumps is used in all high vacuum and ultrahigh vacuum areas of application.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TURBOVAC | 151 | 151 | 151 C |
|---|---|---|---|

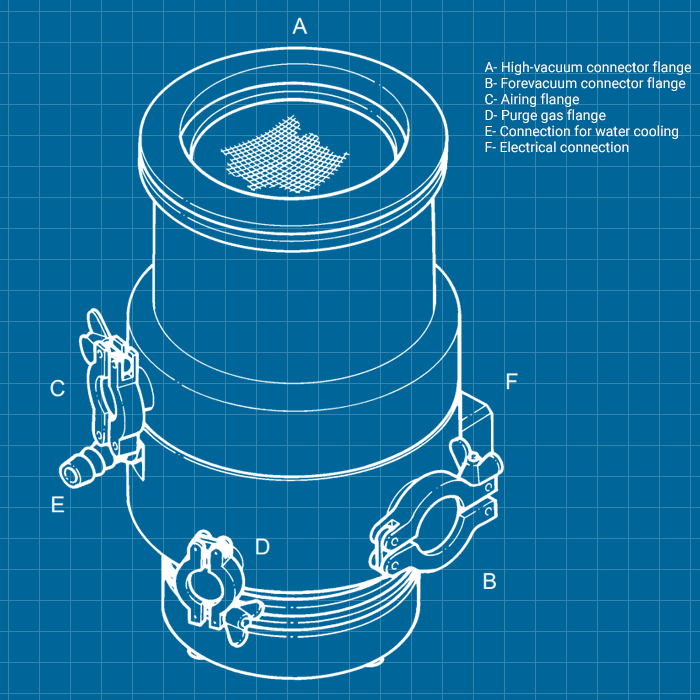

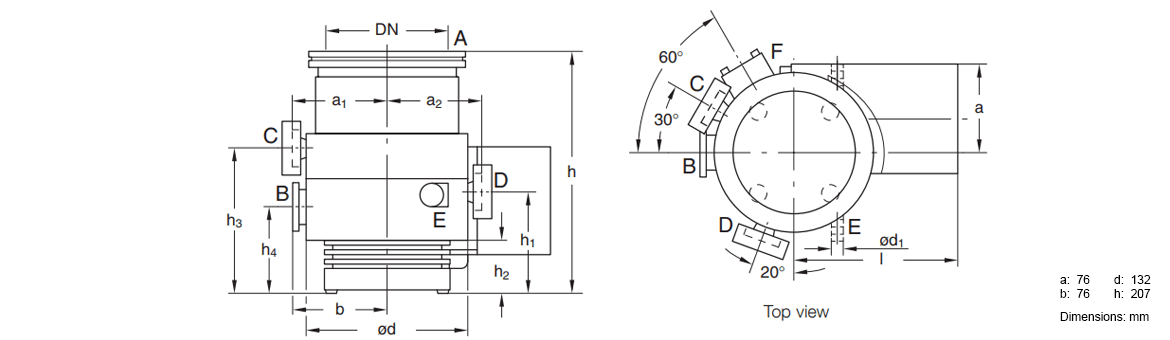

| High-vacuum port | 63 ISO-K | 100 ISO-K, 100 CF | 100 ISO-K |
| Pumping speed for N2 | 115 l/sec | 145 l/sec | |
| Ultimate pressure | < 10-10 mbar | ||
| Forevacuum pressure | 0.5 mbar | ||
| Recommended forevacuum pump | TRIVAC D 4 B | TRIVAC D 16 B | |
| Recommended frequency converter | NT 20 | ||
| Speed | 50,000 rpm | ||
| Run-up time | approx. 2 min. | ||
| Coolant connection nozzle | 10 mm | ||
| Coolant temperature | 10 - 25°C | ||
| Coolant flow rate at 15°C | 20 l/h-1 | ||
| Forevacuum port | 25 KF | ||
| Purge gas port | - | 10 KF | |
| Vent port | 10 KF | ||
| Weight | 8 kg | ||
| Max. ambient temperature at operation | 55°C | ||
| Max. bakeout temperature at CF flange | |||
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC 151 / C Turbomolecular Vacuum Pump - NEW Part no. 85631 / 856 31 Pumping speed: 145 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 ISO-K Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled Part no. 85635 / 856 35 Pumping speed: 145 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 ISO-K Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled Part no. 85632 / 856 32 Pumping speed: 145 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 CF Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled Part no. 10341 / 103 41 Pumping speed: 145 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 CF Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled
