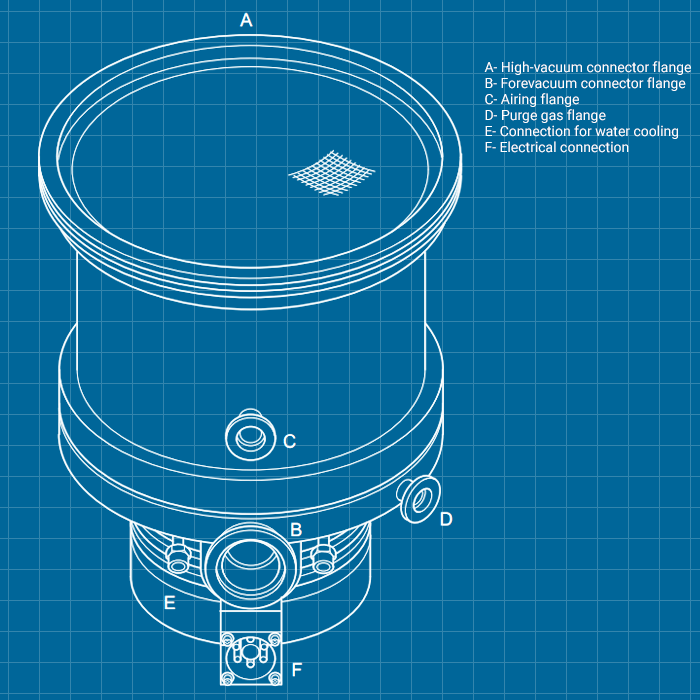

Leybold TURBOVAC 600 C - REBUILT
Call for Price
In stock
SKU
REBUILT_TMP600C
| Weight | 43.00 lbs |
|---|---|
| Pumping Speed | 560 l/s |
| Ultimate Pressure | 1 x 10-10 mbar |
Leybold Vacuum TURBOVAC 600 C Turbomolecular Pump - REBUILT
Sold with a one year warranty. We offer repair service and are capable of rebuilding, balancing and testing this pump. View our inventory of Leybold Vacuum turbo pumps.
Typical Applications
- Load locks and transfer chambers
- Optical coating
- Flat panel displays
- R & D
Technical Features
- Small footprint
- Installation in any orientation
- Oil-free pump for generating clean high and ultrahigh vacuum conditions
- Bearing temperature measurement through the TURBO.DRIVE TD 20 classic
- Seal gas connection
- Venting connection
Advantages to the User
- Installation in any orientation
- Highly reliable due to hybrid ceramic ball bearings
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | DN 160 ISO-K • 160 CF | |
| Pumping speed | ||
| N2 l/s | 560 | |
| He l/s | 600 | |
| H2 l/s | 570 | |
| Max. gas throughput | ||
| N2 mbar x l/s | < 4 | |
| Ar mbar x l/s | < 4 | |
| Compression ratio | ||
| N2 | > 109 | |
| He | 2 x 104 | |
| H2 | 1.1 x 103 | |
| Ultimate pressure mbar (Torr) | < 10-10 (< 10-10) | |
| Operating speed | 36,000 min-1 | |
| Run-up time (frequency converter), approx. | 4 min | |
| Max. foreline pressure for N2 mbar (Torr) | 1 x 10-1 (< 0.75 x 10-1) | |
| Recommended forevacuum pump | ||
| for standard operation | TRIVAC D 25 B / D 40 B | |
| for purge gas operation | TRIVAC D 40 B | |
| Run-up time at 95% of nominal speed | 3 min | |
| Purge / vent port | DN 10 KF | |
| Cooling water connection (hose nozzles) | 10 mm (0.39") | |
| Weight | 17 kg (37.5 lbs) | |
| Max. power consumption / at ultimate pressure | 680 / 480 VA | |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TURBOVAC 50 to 1000 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC 600 C Turbomolecular Pump - REBUILT DN 160 ISO-K Part no. 800150V0015 / 85682 Pumping speed: 560 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 ISO-K Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled DN 160 CF Part no. 800150V0017 / 85680 Pumping speed: 560 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 CF Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled 6" ASA Part no. 89425
