Leybold TURBOVAC MAG W 1500 CT - REBUILT
Call for Price
In stock
SKU
REBUILT_MAGW1500CT
| Weight | 70.55 lbs |
|---|---|
| Pumping Speed | 1100 l/s |
| Ultimate Pressure | 1 x 10-8 mbar |
Leybold Vacuum TURBOVAC MAG W 1500 CT Turbomolecular Pump - REBUILT
Accuracy, precision and reliability those are the features of these magnetically-levitated turbomolecular pumps. High pumping speed and gas throughput for faster pump down time improve equipment cycle times. With its fully integrated converter and power supply, conventional rack-mounted controller and interconnecting cables are no longer necessary.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

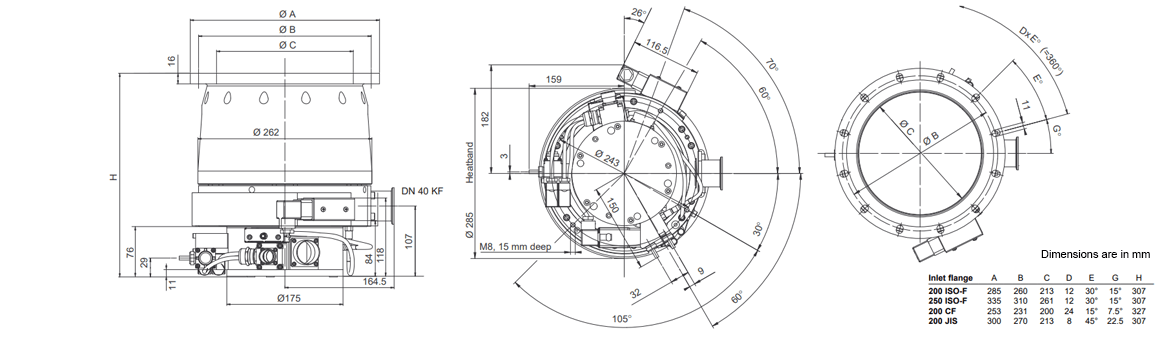

| Inlet connection | DN 200 ISO F |
| Outlet connection | DN 40 ISO KF |
| Ultimate pressure | < 1.0 x 10-8 mbar |
| Max. foreline pressure for N2 | 2.6 mbar |
| Nominal rotation speed | 36,000 min-1 |
| Run up time | ≈ 6 min |
| Max. power consumption | 1,800 W |
| Power consumption at ultimate pressure | 100 W |
| Protection rating | IP 20 |
| Admissible ambient temperature | 5 - 40°C |
| Cooling standard | Water |
| Cooling water connection | 1/4" tube |
| Cooling water consumption | 120 - 350 l/h |
| Permissible cooling water pressure | 2 - 7 bar |
| Permissible cooling water temperature | 10 - 30°C |
| Weight | ≈ 32.0 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold MAG digital Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC MAG W 1500 CT Turbo Pump - REBUILT DN 200 ISO-F Part no. 400026V0002 Pumping speed: 1,100 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 200 ISO-F Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled DN 250 ISO-F Part no. 400027V0002 Pumping speed: 1,220 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 250 ISO-F Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled DN 200 CF Part no. 400030V0002 Pumping speed: 1,100 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 200 CF Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled DN 200 ISO-F Part no. 400020V0002 Connecting flange high-vacuum: DN 200 CF Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled
Related Products
-
Leybold TURBOVAC MAG W 1600 iP - NEWCall for Price
-

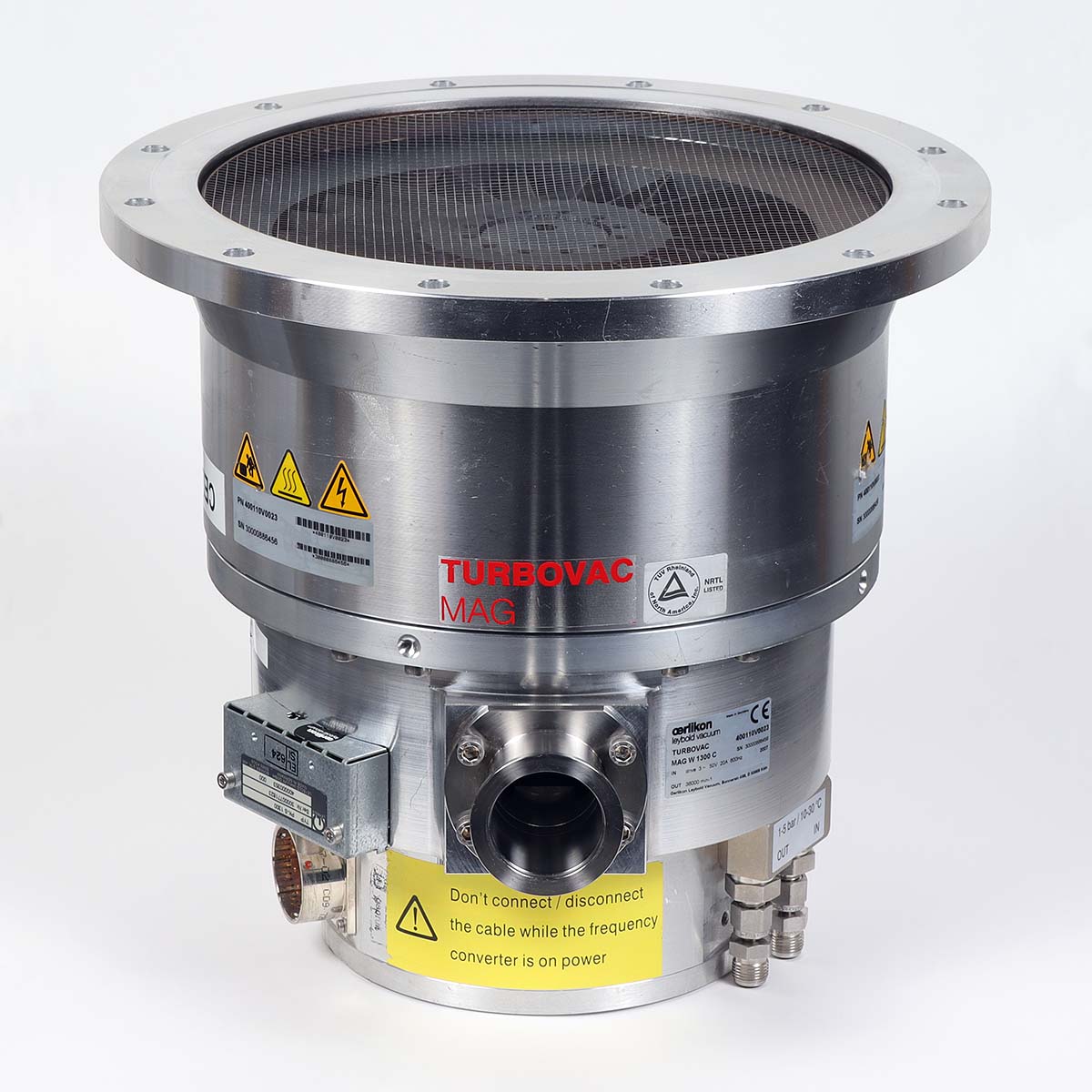

Leybold TURBOVAC MAG W 1300 C - REBUILTCall for Price
-

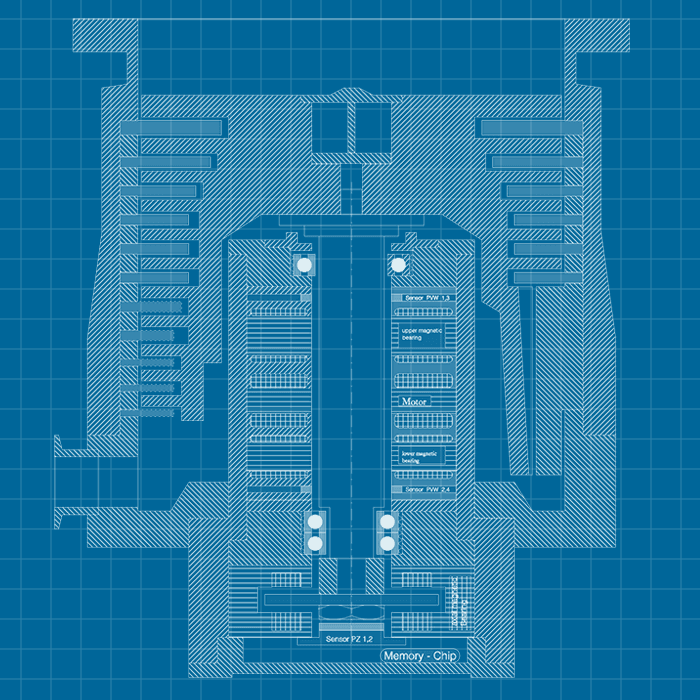

Leybold MAG W 1500 CT - SERVICECall for Price
