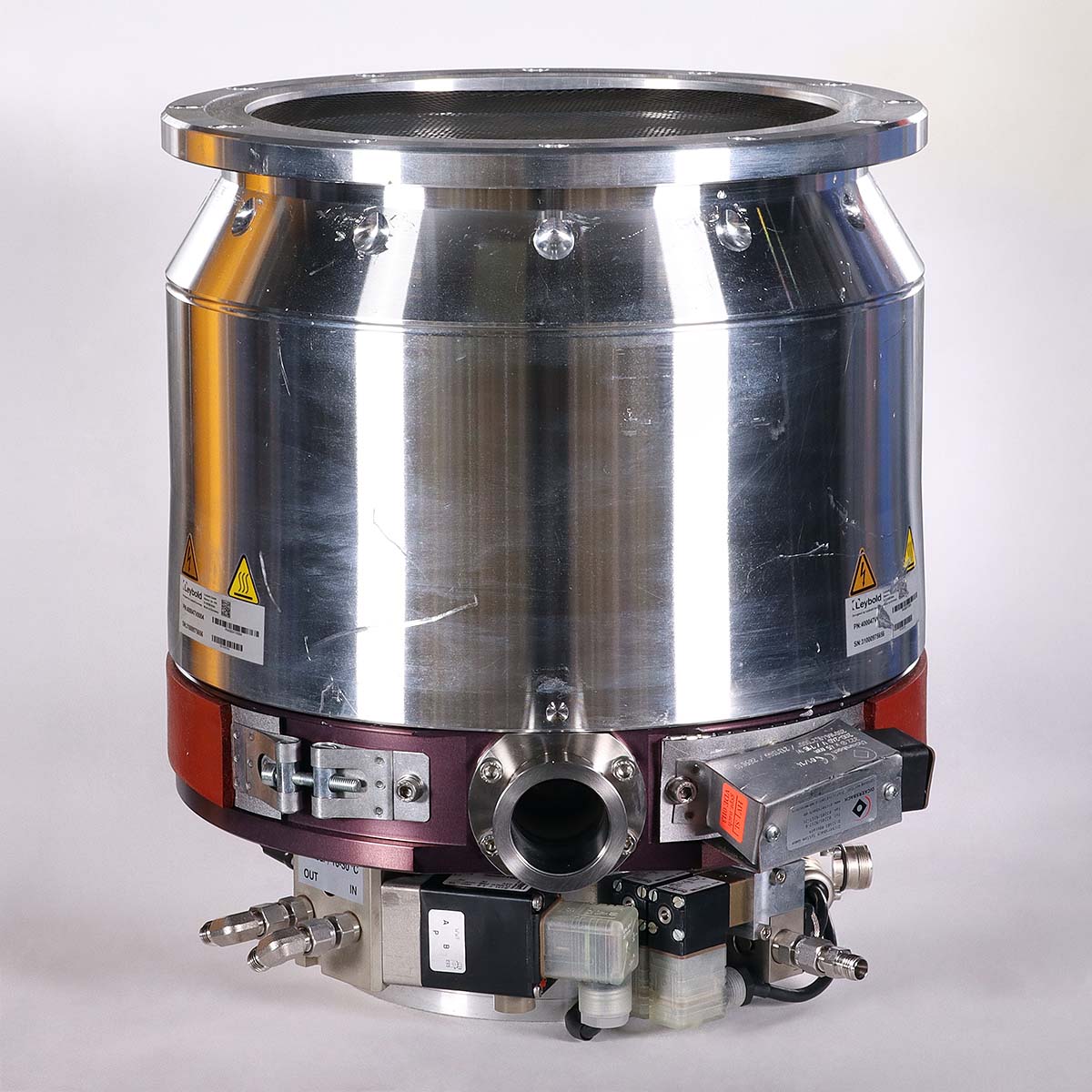

Leybold TURBOVAC MAG W 2010 C / CHT - REBUILT
Weight
183.00 lbs
Pumping Speed
1650 l/s
Ultimate Pressure
1 x 10-8 mbar
Leybold Vacuum TURBOVAC MAG W 2010 C / CHT Turbomolecular Pump - REBUILT
The MAG are turbomolecular pumps utilizing magnetic bearings. They are designed to evacuate vacuum chambers down to pressure values in the high-vacuum range and to pump high gas throughputs. The pump design allows high temperatures (HT) at the connection flanges without reduction of the maximum gas throughput.
Questions? send an email to our sales team!
Pumping speed for N2 measured with splinter guard (PNEUROP)
1,650 l/s
Gas flow (continuous operation w/ Argon)
1,300 sccm
Compression for N2
> 108
Ultimate pressure as to DIN 28 400
< 10-8 mbar
Max. forevacuum pressure
N2
3.5 mbar
Ar
4.3 mbar
Rotor speed
28,800 min-1
Run-up time
< 8 min
Braking time with/without venting
1 / < 7.5 min
Cooling
water
Cooling connection, Swagelok tube OD
1/4"
Cooling water temperature
15 to 30°C / 59 to 86°F
Inlet pressure
2 to 6 bar (absolute) (i.e. 1 to 5 bar over atmosphere)
Weight
approx. 65 kg (143 lbs)

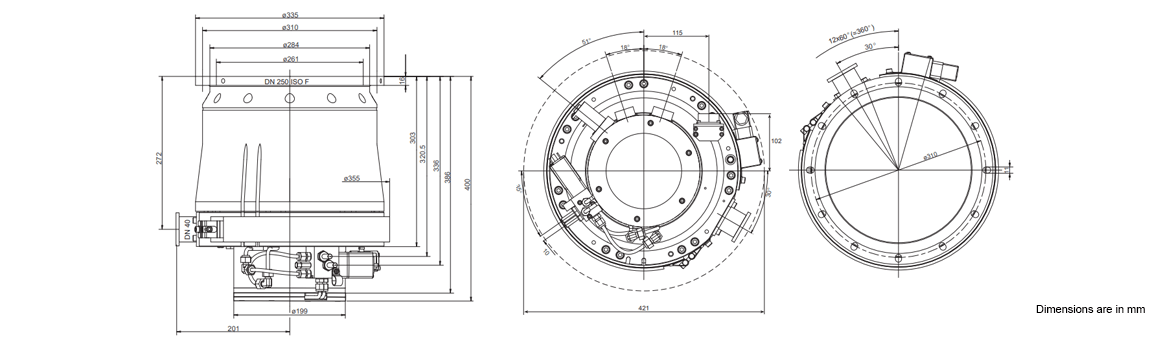

High-vacuum connection flange
DN 250 ISO-F
Forevacuum connection flange
DN 40 KF
Max. high-vacuum flange temperature
85°C (185°F)
Recommended backing pump
DRYVAC 50
Admissible ambient temperature
5 to 40°C / 40 to 104°F
Storage temperature
-10 to +60°C / 14 to 140°F
Max. relative air humidity
95% (non-condensing)
Degree of protection (EN 60529)
IP 20
Purge gas
dry nitrogen, argon or similar
Purge gas throughput
0.5 to 0.65 mbar x l/s (30 to 40 sccm)
Connection
1/4" VCR nut
Specifications
Type
Label
Description
Download
Leybold MAG W 2010 CHT - REBUILT
Operating Instructions
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC MAG W 2010 C / CHT Turbomolecular Pump - REBUILT
10350 / 103 50 TURBOVAC MAG W 2010 CHT (DPS 300)
12131 / 121 31 TURBOVAC MAG W 2010 CHT DN 250 ISO-F
12132 / 121 32 TURBOVAC MAG W 2010 C DN 250 ISO-F
400045V0006 TURBOVAC MAG W 2012 C DN 250 ISO-F
400045V0007 TURBOVAC MAG W 2011 C DN 250 ISO-F
