Leybold TURBOVAC MAG W 2800 CT - REBUILT
Call for Price
In stock
SKU
REBUILT_MAGW2800C/CT
| Weight | 145.00 lbs |
|---|---|
| Pumping Speed | 2,650 l/s |
| Ultimate Pressure | 1 x 10-8 mbar |
Leybold Vacuum TURBOVAC MAG W 2800 CT Turbomolecular Pump - REBUILT
Accuracy, precision and reliability those are the features of these magnetically-levitated turbomolecular pumps. High pumping speed and gas throughput for faster pump down time improve equipment cycle times. With its fully integrated converter and power supply, conventional rack-mounted controller and interconnecting cables are no longer necessary.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed | |
| N2 | 2,650 l/s |
| Ar | 2,450 l/s |
| H2 | 2,100 l/s |
| Compression for N2 | > 108 mbar |
| Ultimate pressure | < 10-8 mbar |
| Max. forvacuum pressure | 2.0 mbar |
| Rotor speed | 28,800 min-1 |
| Run up time | < 10 min |
| Braking time w/without venting | 2 / < 9 min |
| Cooling | Water |
| Cooling connection threads | 1/8" G |
| w/ Swagelok elbow for tube OD | 6.4 mm / 1/4" |
| Cooling water temperature | 10 to 30°C / 50 to 86°F |
| Base flange temperature | 20 to 80°C / 68 to 176°F |
| Weight | 64 kg / 141 lbs |
| High vacuum connection flange | DN 250 ISO-F |
| Max. high-vacuum flange temperature for continuous operation | 85°C / 185°F |
| Bake-out temperature at high-vacuum flange | 120°C / 248°F |
| Vibration level at high-vacuum flange at max. speed | < 0.01 μm |
| Fore-vacuum connection flange | DN 40 KF |
| Recommended backing pump | |
| Dry commpressing pump w/ pumping speed | 100 m3/h |
| or rotary vane pump | TRIVAC D 65 BCS |
| Admissible ambient temperature | 5 to 40°C / 40 to 104°F |
| Storage temperature | -10 to +60°C / 14 to 140°F |
| Max. relative air humidity | 95% (non-condensing) |
| Degree of protection (EN 60529) | IP 20 |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold MAG digital Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC MAG W 2800 CT Turbomolecular Pump - REBUILT TURBOVAC MAG W 2800 CT Part no. 400000V0002 Pumping speed: 2,650 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 250 ISO-F Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled TURBOVAC MAG W 2800 Part no. 400006V0071 Pumping speed: 2,400 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 250 CF Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled TURBOVAC MAG W 2800 C Part no. 400000V0001 Pumping speed: 2,650 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 250 ISO-F Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled
Related Products
-
Leybold TURBOVAC MAG W 2200 iP - NEWCall for Price
-
Leybold TURBOVAC MAG W 3200 CT - REBUILTCall for Price
-

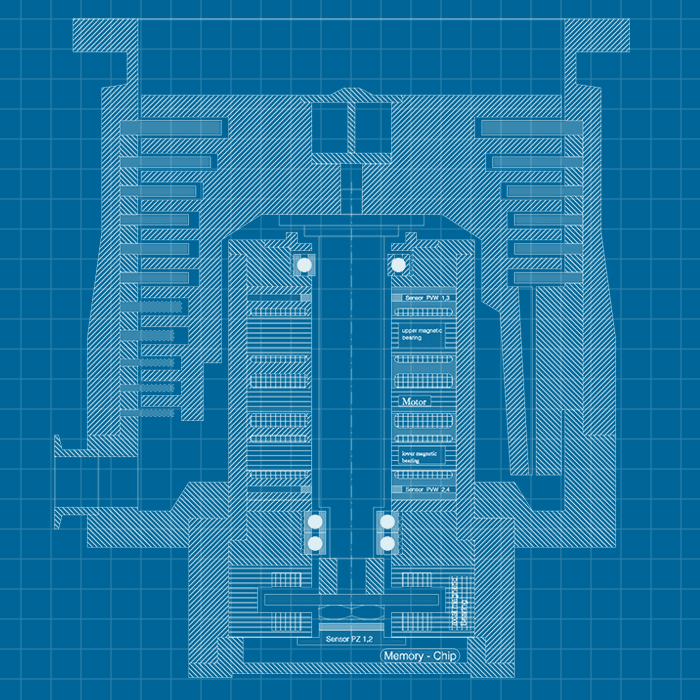

Leybold MAG W 2800 CT - SERVICECall for Price
