Leybold TURBOVAC MAG W 3200 CT - REBUILT
Call for Price
In stock
SKU
REBUILT_MAGW3200CT
| Weight | 145.00 lbs |
|---|---|
| Pumping Speed | 3200 l/s |
| Ultimate Pressure | 1 x 10-8 mbar |
Leybold Vacuum TURBOVAC MAG W 3200 CT Turbomolecular Pump - REBUILT
Accuracy, precision and reliability those are the features of these magnetically-levitated turbomolecular pumps. High pumping speed and gas throughput for faster pump down time improve equipment cycle times. With its fully integrated converter and power supply, conventional rack-mounted controller and interconnecting cables are no longer necessary.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet connection | DN 320 ISO |
| Outlet connection | DN 40 ISO KF |
| Ultimate pressure | < 1.0 x 10-8 mbar |
| Max. foreline pressure for N2 | 2.0 mbar |
| Nominal rotation speed | 28,800 min-1 |
| Run up time | ≈ 10 min |
| Max. power consumption | 1,800 W |
| Power consumption at ultimate pressure | 100 W |
| Protection rating | IP 20 |
| Admissible ambient temperature | 5 - 40°C |
| Cooling standard | Water |
| Cooling water connection | 1/4" tube |
| Cooling water consumption | 120 - 350 l/h |
| Permissible cooling water pressure | 2 - 7 bar |
| Permissible cooling water temperature | 10 - 30°C |
| Weight | ≈ 65.0 kg |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold MAG digital Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC MAG W 3200 CT Turbomolecular Pump - REBUILT MAG W 3200 C Part no. 400003V0001 Pumping speed: 3,200 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 320 ISO-F Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled MAG W 3200 CT Part no. 400003V0002 Pumping speed: 3,200 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 320 ISO-F Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled MAG W 3200 Part no. 400003V0003 Pumping speed: 3,200 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 320 ISO-F Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled
Related Products
-

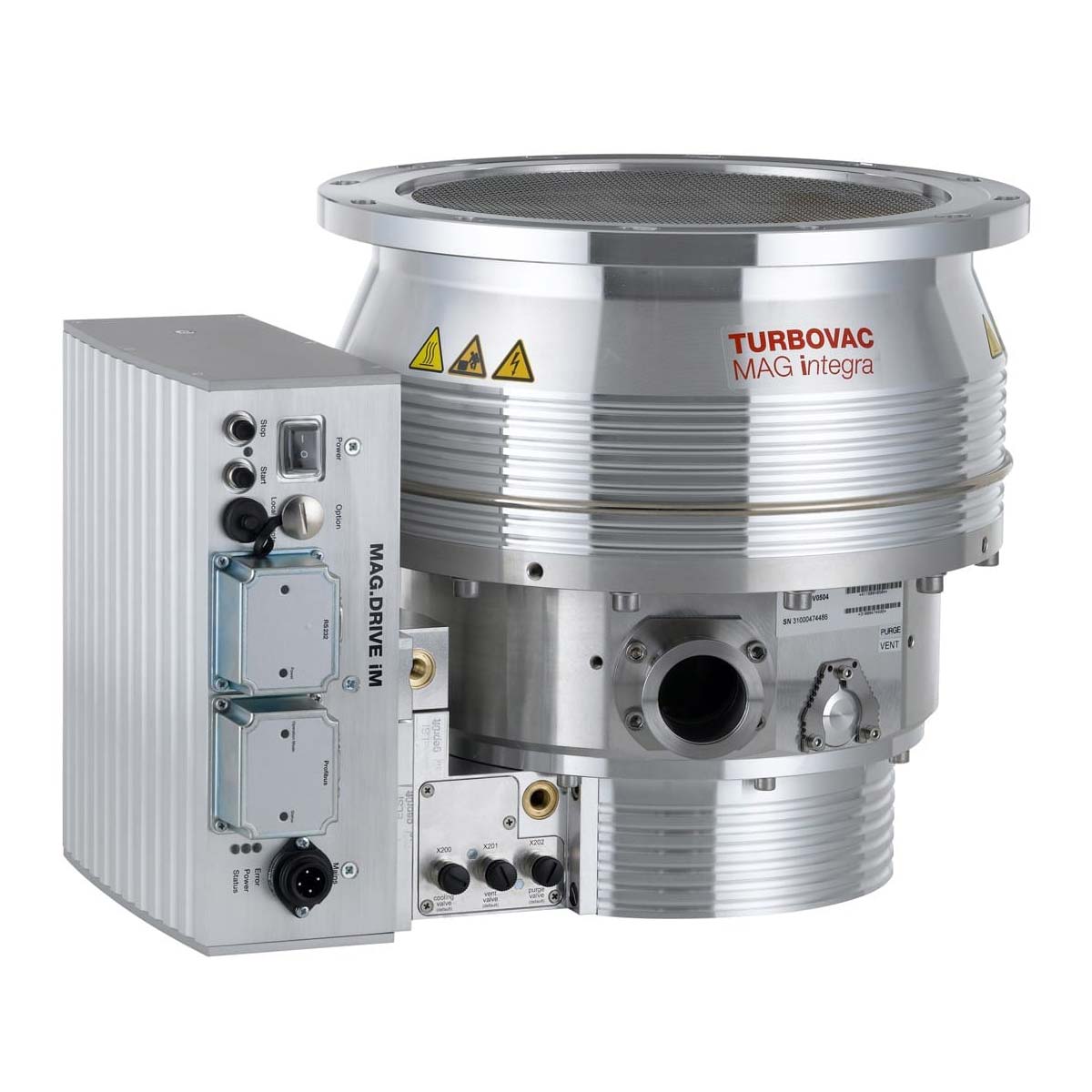

Leybold TURBOVAC MAG W 2200 iP - NEWCall for Price
-

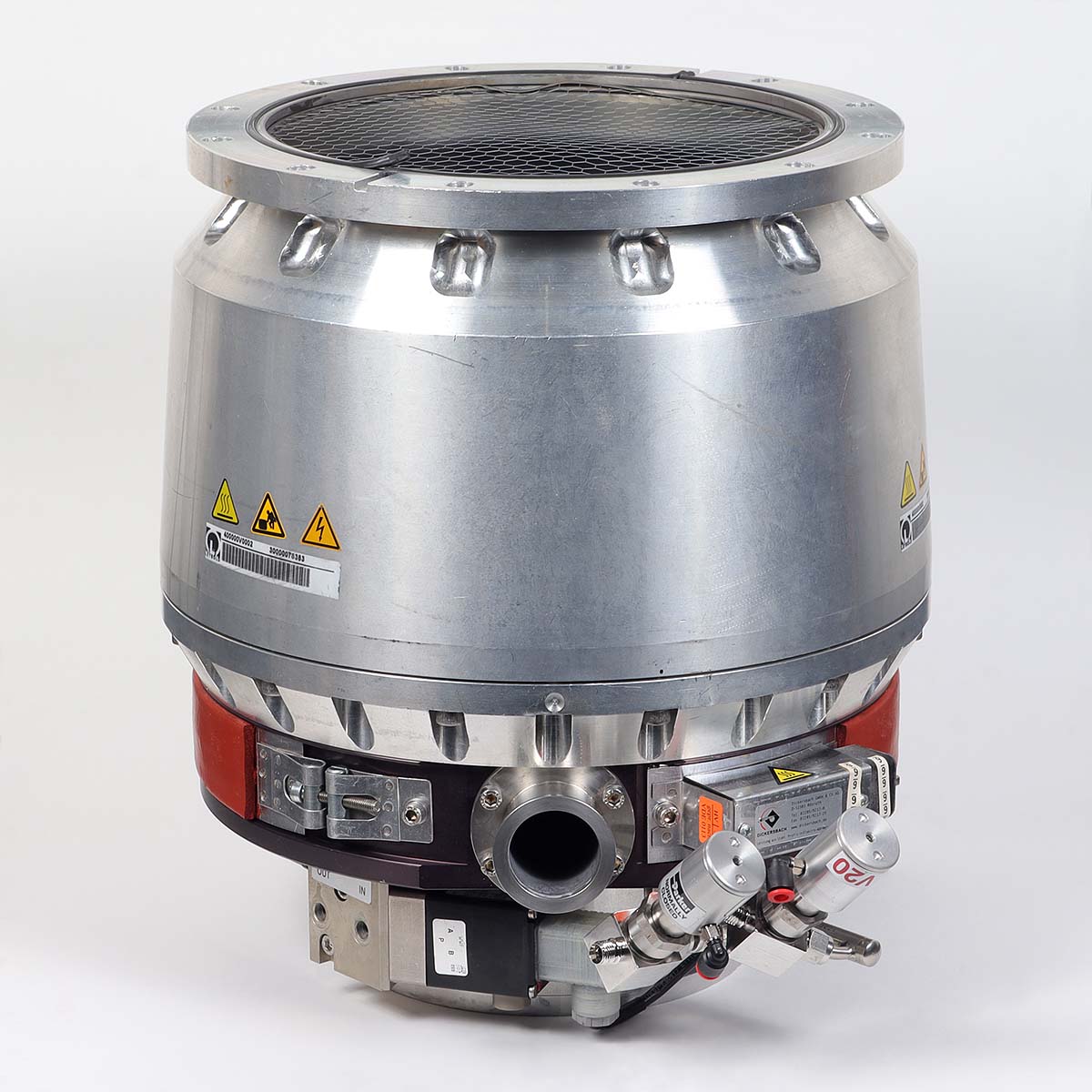

Leybold TURBOVAC MAG W 2800 CT - REBUILTCall for Price
-

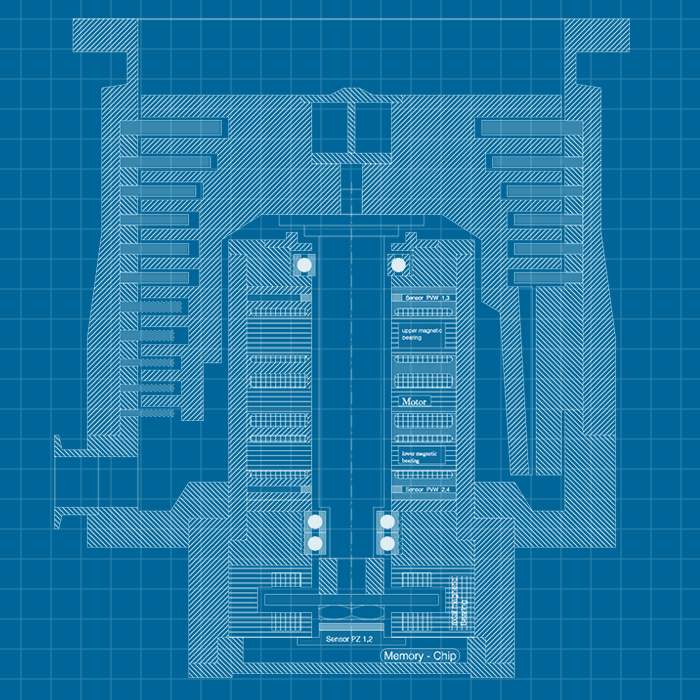

Leybold MAG W 3200 CT - SERVICECall for Price
