Leybold TURBOVAC MAG W 400 P - NEW
Call for Price
| Weight | 26 lbs |
|---|---|
| Pumping Speed | 365 l/s |
| Ultimate Pressure | < 1 x 10-8 mbar |
Leybold TURBOVAC MAG W 400 P Turbomolecular Vacuum Pump - NEW

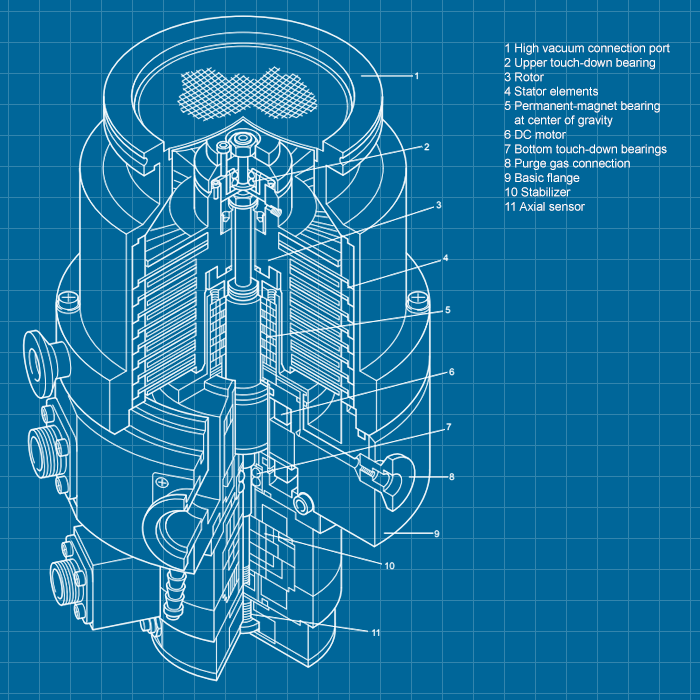

The TURBOVAC MAG turbomolecular vacuum pumps with magnetic rotor suspension pressure range from 10-1 mbar (0.75 x 10-1 Torr) to 10-10 mbar (0.75 x 10-10 Torr). Pumping speeds for air vary from 300 l/s to 3,200 l/s. The TURBOVAC MAG pumps are used in applications where low noise level, extremely low vibration or hydrocarbon-free vacuum conditions are important. As well in applications with corrosive gases or for analytical instruments and research and development.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | 160 ISO-K |
| Pumping speed | |
| N2 | 365 l x s-1 |
| Ar | 330 l x s-1 |
| He | 280 l x s-1 |
| H2 | 200 l x s-1 |
| Operating speed | 58,800 min-1 |
| Compression ratio | |
| N2 | 1.0 x 1010 |
| H2 | 3.2 x 103 |
| He | 9.2 x 104 |
| Ultimate pressure | < 10-8 mbar / < 0.75 x 10-8 Torr |
| Max. degassing temperature | 8 mbar, 6 Torr |
| Recommended backing pump | TRIVAC D 2.5 E, TRIVAC D 8 B |
| Run up time | < 5 min |
| Foreline flange | DN 16 ISO-KF |
| Purge / vent port | DN 16 ISO-KF |
| Water cooling connection | 1/8" G |
| Weight | 12 kg, 26 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC MAG W 400 P Turbomolecular Vacuum Pump - NEW Part no. 410400V0005 Pumping speed: 365 l/s (Nitrogen) Ultimate pressure: < 1 x 10-8 mbar Connecting flange high-vacuum: DN 160 ISO-K Connecting flange fore-vacuum: DN 16 ISO-KF (clamped) convection-cooled Part no. 410400V0006 Pumping speed: 365 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 CF Connecting flange fore-vacuum: DN 16 ISO-KF (clamped) convection-cooled
