Leybold TURBOVAC MAG W 830 / C - REBUILT

Name: Leybold TURBOVAC MAG W 830 / C - REBUILT
Brand: Leybold
SKU: REBUILT_MAGW830C

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_MAGW830C

Request For Quote

Weight	70.6 lbs
Pumping Speed	700 l/s
Ultimate Pressure	1 x 10^-10 mbar

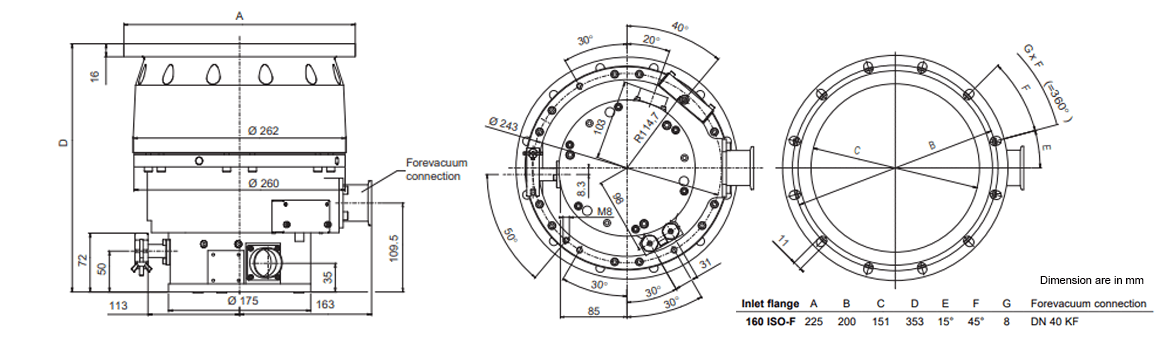

Dimensions

Description

Leybold Vacuum TURBOVAC MAG W 830 / C Turbomolecular Pump - REBUILT

Accuracy, precision and reliability those are the features of these magnetically-levitated turbomolecular pumps. High pumping speed and gas throughput for faster pump down time improve equipment cycle times. With its fully integrated converter and power supply, conventional rack-mounted controller and interconnecting cables are no longer necessary.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet connection	DN 160 CF
Outlet connection	DN 40 ISO KF
Ultimate pressure	< 1.0 x 10^-10 mbar
Max. foreline pressure for N₂	2.0 mbar
Max. power consumption	1,100 W
Power consumption at ultimate pressure	100 W
Protection rating	IP 20
Admissible ambient temperature	5 - 40°C
Cooling standard	Water
Cooling water connection	1/4" tube
Cooling water consumption	120 - 350 l/h
Permissible cooling water pressure	2 - 7 bar
Permissible cooling water temperature	10 - 30°C
Weight	≈ 35.0 kg

Specs link

Digital Manuals

Type	Label	Description	Download
	Leybold MAG digital Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold Vacuum TURBOVAC MAG W 830 / C Turbomolecular Pump - REBUILT

Part no. 400100V0005
Pumping speed: 700 l/s (Nitrogen)
Ultimate pressure: < 1 x 10^-8 mbar
Connecting flange high-vacuum: DN 160 ISO-F
Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled

Part no. 400100V0041
Pumping speed: 900 l/s (Nitrogen)
Ultimate pressure: < 1 x 10^-10 mbar
Connecting flange high-vacuum: DN 160 CF
Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled
