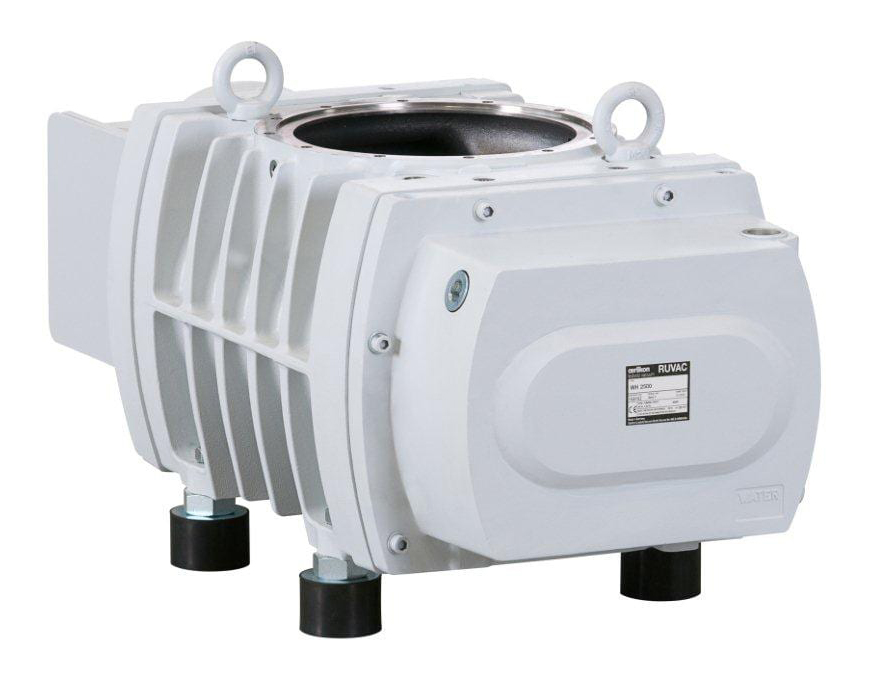

Leybold WH / WHU 2500 - SERVICE

Call for Price

In stock
SKU
SERVICE_WH/WHU2500
Leybold Factory Trained Technicians

Consumable parts vary with model type. Pricing is determined by model configuration, oil type and hard parts damage.

Leybold RUVAC WH / WHU 2500 - Scope of Work

PTB Sales will perform the following:

1. Incoming Inspection

  • Attach work order to pump
  • Picture taken of mechanical configuration

2. Receipt and Inspection

  • Complete decontamination of internal and external parts
  • Hazardous materials disposed in accordance with environmental regulations
  • Motor Test

3. All parts are inspected and cleaned

  • High Pressure Parts washer
  • Corncobb blaster
  • Glass blaster

4. Parts are dimensionally evaluated

5. Rebuild

  • Stone all plates and rotors as neccesary
  • Replace shaft seals
  • Replace O-Rings
  • Install new gaskets

6. Final Test

  • 24 hour burn in test
  • Verify ultimate pressure and current
  • Verify no leaks

7. Packaging and Shipping

  • Paint pump
  • Apply all safety and startup labels
  • Test reported completed
  • QC report created
  • Package pump and ship

Exceptional customer service and engineering support. Fast turnarounds. Low prices.

Image Legend

  1. Impeller, motor side
  2. Impeller, non driven
  3. Piston ring holder
  4. Piston ring
  5. O-Ring
  6. Splash ring
  7. Ball bearing
  8. Gear wheel, pair
  9. Splash disk
  10. Hexagonal nut (M 24 x 1.5)
  11. Distance sleeve
  12. Centering sleeve
  13. Splash disk
  14. Centering sleeve
  15. Screw M12 LH
  16. Washer
  17. Tension washer
  18. Retainer ring
  19. Washer
  20. Spring
  21. Oil ring
  22. Gauge disc
  23. Gauge disc 0.1
  24. Gauge disc 0.05
  25. Gauge disc 0.5
  26. Gauge disc 0.08
  27. Gauge disc 0.2
  28. Oil feed
  29. Screw M8 x 16
  30. Housing
  31. Bearing plate
  32. O-Ring
  33. Cylinder pin
  34. Screw M8 x 25
  35. O-Ring
  36. Bearing plate
  37. Housing cover
  38. Reflector
  39. O-Ring
  40. Glass
  41. Washer
  42. Threaded ring
  43. Screw M16 x 1.5
  44. Gasket ring
  45. Screw M8 x 45
  46. Washer
  47. Nut M8
  48. Screw M8 x 45
  49. Motor rotor
  50. Motor housing 200/400 V

Request an RMA  Return Material Authorization

Procedures for shipping used equipment to PTB Sales:

  • Seal off the exhaust and inlet of the pump.
  • Attach our pump declaration form to the equipment to declare what contaminants the equipment has been exposed to.

There is a $300 Evaluation Fee. This gets applied to the cost of repair.
