Pfeiffer DCU 310 - NEW
Call for Price
In stock
SKU
NEW_DCU310
Pfeiffer Vacuum DCU 310 Turbomolecular Pump Controller - NEW

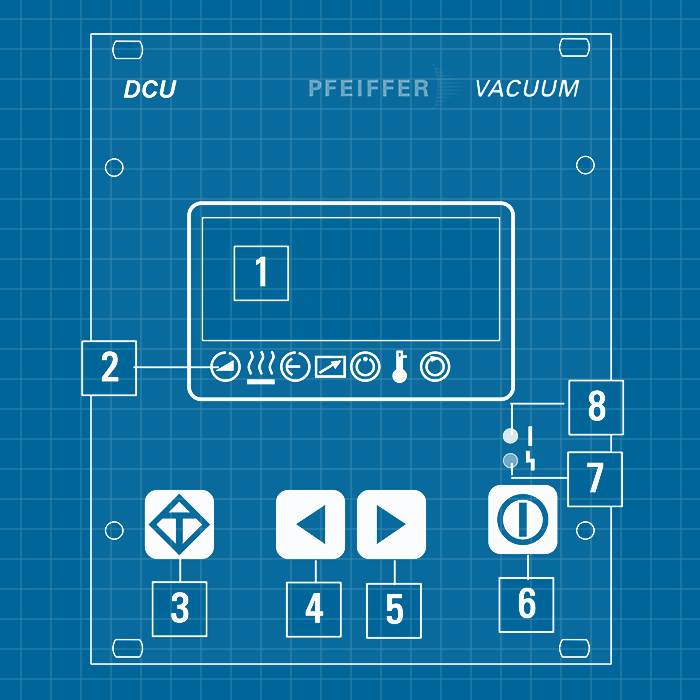

The Display Control Unit DCU is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.

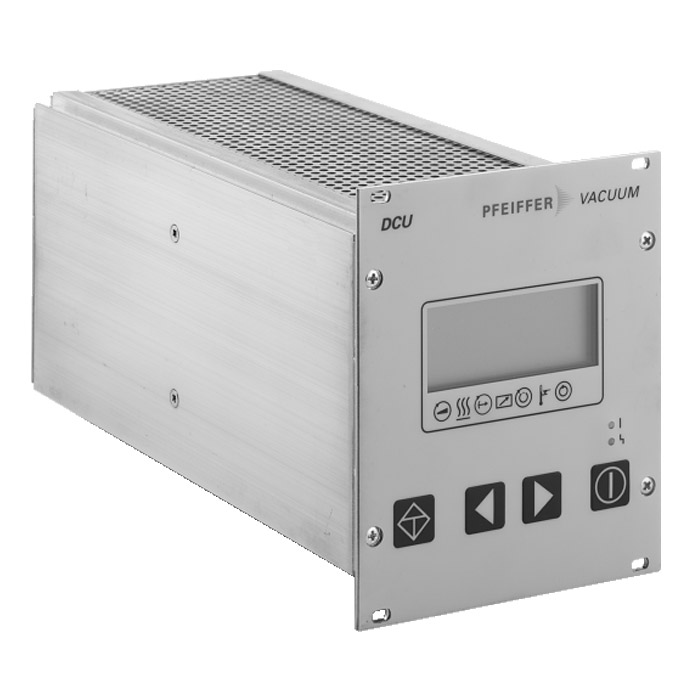

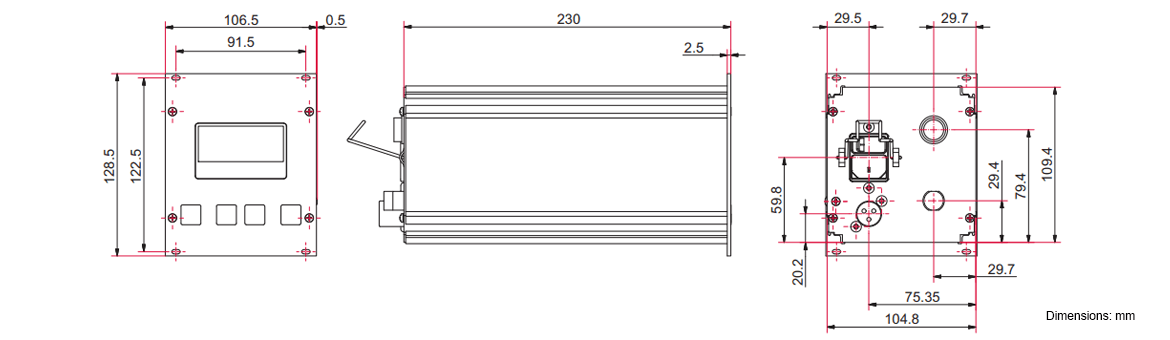

Display Control Unit (DCU) with integrated power supply for electrical supply, control and operation of respective Pfeiffer vacuum products. 3HU 19" rack module with easy-to-read, backlit display. In compliance with international standards and specifications.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | DCU 002 | DCU 110 | DCU 180 | DCU 310 | DCU 400 |
|---|---|---|---|---|---|
| Ambient temperature | 5-50°C / 41-122°F / 278-323 K | ||||
| Mains requirement: Frequency (range) | - | 50/60 Hz | |||
| Mains requirement: power consumption | 5 VA | 130 VA | 210 VA | 340 VA | 450 VA |
| Mains requirement: Voltage (range) | - | 115-230 (-20-+15%) VAC | |||
| Output current | - | 4.6 A | 7.5 A | 12.5 A | 8.4 A |
| Output voltage | - | 24 (±2%) VDC | 48 (±2%) VDC | ||
| Power consumption max. | 5 VA | 130 VA | 210 VA | 340 VA | 450 VA |
| Power supply | - | DCU 110 | DCU 180 | DCU 310 | DCU 400 |
| Protection category | IP 20 | ||||
| Weight | 0.4 kg / 0.88 lb | 1.2 kg / 2.65 lb | 1.7 kg / 3.75 lb | 1.85 kg / 4.08 lb | 2.3 kg / 5.07 lb |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum DCU 310 Turbomolecular Pump Controller - NEW PMC01822 / PM C01 822 w/ integrated power supply
