Pfeiffer HiCube 80 Classic - REBUILT

Call for Price

In stock
SKU
REBUILT_HiCube80Classic
Weight 89 lbs
Pumping Speed 35 l/s
Ultimate Pressure 1 x 10-7 mbar

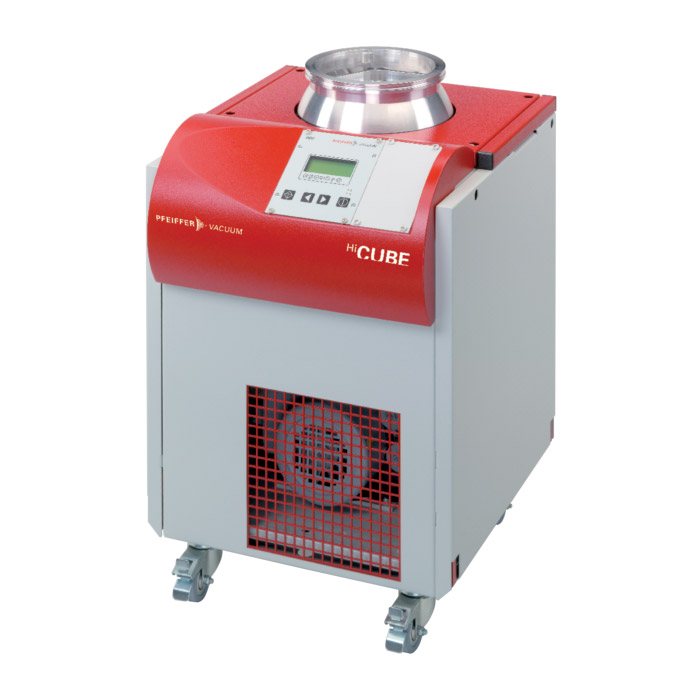

Pfeiffer Vacuum HiCube 80 Classic Turbomolecular Pumping Stations - REBUILT

The HiCube Classic pumping stations are suitable for all high and ultra high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. Available for selection as backing pumps are dry diaphragm pumps with pumping speeds of up to 4.3 m3/h or rotary vane pumps with pumping speeds of up to 6 m3/h.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Backing pump MVP 040
Connection flange (in) DN 40 ISO-KF
Connection flange (out) G 1/2, G 1/4
Cooling method, standard Air
Final pressure < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar
Final pressure without gas ballast < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar
Fore-vacuum safety valve No
Mains connection 200 – 230 V AC, 50/60 Hz
Power consumption max. 530 W
Pumping speed backing pump at 50 Hz 2.3 m³/h | 1.35 cfm | 38.33 l/min
Pumping speed for N2 35 l/s
Sound pressure level ≤50 dB(A)
Turbopump HiPace 80
Type Turbo pumping station
Weight 40.2 kg | 88.62 lb

Specs

Type Label Description Download
Pfeiffer HiCube Classic - REBUILT Operating Instructions Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiCube 80 Classic Turbomolecular Pumping Station - REBUILT

PMS99055 / PM S99 055
PMS2022000 / PM S20 220 00   HiPace 80 / MVP 040   DN 40 ISO-KF  100-110 VAC  50/60 Hz
PMS2023000 / PM S20 230 00   HiPace 80 / MVP 040   DN 40 ISO-KF  200-230 VAC  50/60 Hz
PMS2024000 / PM S20 240 00   HiPace 80 / MVP 070   DN 40 ISO-KF  100-110 VAC  50/60 Hz
PMS2025000 / PM S20 250 00   HiPace 80 / MVP 070   DN 40 ISO-KF  200-230 VAC  50/60 Hz
PMS2028000 / PM S20 280 00   HiPace 80 / MVP 040   DN 40 ISO-KF  100-110 VAC  50/60 Hz  TVV 001
PMS2029000 / PM S20 290 00   HiPace 80 / MVP 040   DN 40 ISO-KF  200-230 VAC  50/60 Hz  TVV 001
PMS2030000 / PM S20 300 00   HiPace 80 / MVP 070   DN 40 ISO-KF  100-110 VAC  50/60 Hz  TVV 001
PMS2031000 / PM S20 310 00   HiPace 80 / MVP 070   DN 40 ISO-KF  200-230 VAC  50/60 Hz  TVV 001
PMS2032000 / PM S20 320 00   HiPace 80 / Duo 3   DN 40 ISO-KF  105 VAC  50 Hz / 115-125 VAC  50/60 Hz
PMS2033000 / PM S20 330 00   HiPace 80 / Duo 3   DN 40 ISO-KF  230-240 VAC  50/60 Hz
PMS2034000 / PM S20 340 00   HiPace 80 / Duo 5 M   DN 40 ISO-KF  100-110 VAC  50 Hz / 100-120 VAC  60 Hz
PMS2035000 / PM S20 350 00   HiPace 80 / Duo 5 M   DN 40 ISO-KF  230-240 VAC  50/60 Hz
PMS2036000 / PM S20 360 00   HiPace 80 / Duo 3   DN 40 ISO-KF  105 VAC  50 Hz / 115-125 VAC  50/60 Hz  AVC 016
PMS2037000 / PM S20 370 00   HiPace 80 / Duo 3   DN 40 ISO-KF  230-240 VAC  50/60 Hz  AVC 016
PMS2038000 / PM S20 380 00   HiPace 80 / Duo 5 M   DN 40 ISO-KF  100-110 VAC  50 Hz / 100-120 VAC  60 Hz  AVC 016
PMS2039000 / PM S20 390 00   HiPace 80 / Duo 5 M   DN 40 ISO-KF  230-240 VAC  50/60 Hz  AVC 016
PMS2040000 / PM S20 400 00   HiPace 80 / Duo 6   DN 40 ISO-KF  100-110 VAC  50 Hz / 100-120 VAC  60 Hz
PMS2041000 / PM S20 410 00   HiPace 80 / Duo 6   DN 40 ISO-KF  230-240 VAC  50/60 Hz
PMS2042000 / PM S20 420 00   HiPace 80 / Duo 3 M   DN 40 ISO-KF  105 VAC  50 Hz / 115-125 VAC  50/60 Hz
PMS2043000 / PM S20 430 00   HiPace 80 / Duo 3 M   DN 40 ISO-KF  230-240 VAC  50/60 Hz
PMS2044000 / PM S20 440 00   HiPace 80 / Duo 6   DN 40 ISO-KF  100-110 VAC  50 Hz / 100-120 VAC  60 Hz  AVC 016
PMS2045000 / PM S20 450 00   HiPace 80 / Duo 6   DN 40 ISO-KF  230-240 VAC  50/60 Hz  AVC 016
PMS2046000 / PM S20 460 00   HiPace 80 / Duo 3 M   DN 40 ISO-KF  105 VAC  50 Hz / 115-125 VAC  50/60 Hz  AVC 016
PMS2047000 / PM S20 470 00   HiPace 80 / Duo 3 M   DN 40 ISO-KF  230-240 VAC  50/60 Hz  AVC 016
PMS2222000 / PM S22 220 00   HiPace 80 / MVP 040   DN 63 CF-F  100-110 VAC  50/60 Hz
PMS2223000 / PM S22 230 00   HiPace 80 / MVP 040   DN 63 CF-F  200-230 VAC  50/60 Hz
PMS2224000 / PM S22 240 00   HiPace 80 / MVP 070   DN 63 CF-F  100-110 VAC  50/60 Hz
PMS2225000 / PM S22 250 00   HiPace 80 / MVP 070   DN 63 CF-F  200-230 VAC  50/60 Hz
PMS2228000 / PM S22 280 00   HiPace 80 / MVP 040   DN 63 CF-F  100-110 VAC  50/60 Hz  TVV 001
PMS2229000 / PM S22 290 00   HiPace 80 / MVP 040   DN 63 CF-F  200-230 VAC  50/60 Hz  TVV 001
PMS2230000 / PM S22 300 00   HiPace 80 / MVP 070   DN 63 CF-F  100-110 VAC  50/60 Hz  TVV 001
PMS2231000 / PM S22 310 00   HiPace 80 / MVP 070   DN 63 CF-F  200-230 VAC  50/60 Hz  TVV 001
PMS2232000 / PM S22 320 00   HiPace 80 / Duo 3   DN 63 CF-F  105 VAC  50 Hz / 115-125 VAC  60 Hz
PMS2233000 / PM S22 330 00   HiPace 80 / Duo 3   DN 63 CF-F  230-240 VAC  50/60 Hz
PMS2234000 / PM S22 340 00   HiPace 80 / Duo 5 M   DN 63 CF-F  100-110 VAC  50 Hz / 100-120 VAC  60 Hz
PMS2235000 / PM S22 350 00   HiPace 80 / Duo 5 M   DN 63 CF-F  230-240 VAC  50/60 Hz
PMS2236000 / PM S22 360 00   HiPace 80 / Duo 3   DN 63 CF-F  105 VAC  50 Hz / 115-125 VAC  60 Hz  AVC 016
PMS2237000 / PM S22 370 00   HiPace 80 / Duo 3   DN 63 CF-F  230-240 VAC  50/60 Hz  AVC 016
PMS2238000 / PM S22 380 00   HiPace 80 / Duo 5 M   DN 63 CF-F  100-110 VAC  50 Hz / 100-120 VAC  60 Hz  AVC 016
PMS2239000 / PM S22 390 00   HiPace 80 / Duo 5 M   DN 63 CF-F  230-240 VAC  50/60 Hz  AVC 016
PMS2240000 / PM S22 400 00   HiPace 80 / Duo 6   DN 63 CF-F  100-110 VAC  50 Hz / 100-120 VAC  60 Hz
PMS2241000 / PM S22 410 00   HiPace 80 / Duo 6   DN 63 CF-F  230-240 VAC  50/60 Hz
PMS2242000 / PM S22 420 00   HiPace 80 / Duo 3 M   DN 63 CF-F  105 VAC  50 Hz / 115-125 VAC  60 Hz
PMS2243000 / PM S22 430 00   HiPace 80 / Duo 3 M   DN 63 CF-F  230-240 VAC  50/60 Hz
PMS2244000 / PM S22 440 00   HiPace 80 / Duo 6   DN 63 CF-F  100-110 VAC  50 Hz / 100-120 VAC  60 Hz  AVC 016
PMS2245000 / PM S22 450 00   HiPace 80 / Duo 6   DN 63 CF-F  230-240 VAC  50/60 Hz  AVC 016
PMS2246000 / PM S22 460 00   HiPace 80 / Duo 3 M   DN 63 CF-F  105 VAC  50 Hz / 115-125 VAC  60 Hz  AVC 016
PMS2247000 / PM S22 470 00   HiPace 80 / Duo 3 M   DN 63 CF-F  230-240 VAC  50/60 Hz  AVC 016
PMS2122000 / PM S21 220 00   HiPace 80 / MVP 040   DN 63 ISO-K  100-110 VAC  50/60 Hz
PMS2123000 / PM S21 230 00   HiPace 80 / MVP 040   DN 63 ISO-K  200-230 VAC  50/60 Hz
PMS2124000 / PM S21 240 00   HiPace 80 / MVP 070   DN 63 ISO-K  100-110 VAC  50/60 Hz
PMS2125000 / PM S21 250 00   HiPace 80 / MVP 070   DN 63 ISO-K  200-230 VAC  50/60 Hz
PMS2128000 / PM S21 280 00   HiPace 80 / MVP 040   DN 63 ISO-K  100-110 VAC  50/60 Hz  TVV 001
PMS2129000 / PM S21 290 00   HiPace 80 / MVP 040   DN 63 ISO-K  200-230 VAC  50/60 Hz  TVV 001
PMS2130000 / PM S21 300 00   HiPace 80 / MVP 070   DN 63 ISO-K  100-110 VAC  50/60 Hz  TVV 001
PMS2131000 / PM S21 310 00   HiPace 80 / MVP 070   DN 63 ISO-K  200-230 VAC  50/60 Hz  TVV 001
PMS2132000 / PM S21 320 00   HiPace 80 / Duo 3   DN 63 ISO-K  105 VAC  50 Hz / 115-125 VAC  60 Hz
PMS2133000 / PM S21 330 00   HiPace 80 / Duo 3   DN 63 ISO-K  230-240 VAC  50/60 Hz
PMS2134000 / PM S21 340 00   HiPace 80 / Duo 5 M   DN 63 ISO-K  100-110 VAC  50 Hz / 100-120 VAC  60 Hz
PMS2135000 / PM S21 350 00   HiPace 80 / Duo 5 M   DN 63 ISO-K  230-240 VAC  50/60 Hz
PMS2136000 / PM S21 360 00   HiPace 80 / Duo 3   DN 63 ISO-K  105 VAC  50 Hz / 115-125 VAC  60 Hz  AVC 016
PMS2137000 / PM S21 370 00   HiPace 80 / Duo 3   DN 63 ISO-K  230-240 VAC  50/60 Hz  AVC 016
PMS2138000 / PM S21 380 00   HiPace 80 / Duo 5 M   DN 63 ISO-K  100-110 VAC  50 Hz / 100-120 VAC  60 Hz  AVC 016
PMS2139000 / PM S21 390 00   HiPace 80 / Duo 5 M   DN 63 ISO-K  230-240 VAC  50/60 Hz  AVC 016
PMS2140000 / PM S21 400 00   HiPace 80 / Duo 6   DN 63 ISO-K  100-110 VAC  50 Hz / 100-120 VAC  60 Hz
PMS2141000 / PM S21 410 00   HiPace 80 / Duo 6   DN 63 ISO-K  230-240 VAC  50/60 Hz
PMS2142000 / PM S21 420 00   HiPace 80 / Duo 3 M   DN 63 ISO-K  105 VAC  50 Hz / 115-125 VAC  60 Hz
PMS2143000 / PM S21 430 00   HiPace 80 / Duo 3 M   DN 63 ISO-K  230-240 VAC  50/60 Hz
PMS2144000 / PM S21 440 00   HiPace 80 / Duo 6   DN 63 ISO-K  100-110 VAC  50 Hz / 100-120 VAC  60 Hz  AVC 016
PMS2145000 / PM S21 450 00   HiPace 80 / Duo 6   DN 63 ISO-K  230-240 VAC  50/60 Hz  AVC 016
PMS2146000 / PM S21 460 00   HiPace 80 / Duo 3 M   DN 63 ISO-K  105 VAC  50 Hz / 115-125 VAC  60 Hz  AVC 016
PMS2147000 / PM S21 470 00   HiPace 80 / Duo 3 M   DN 63 ISO-K  230-240 VAC  50/60 Hz  AVC 016
