Pfeiffer HiPace 10 Neo - NEW
Call for Price
In stock
SKU
NEW_HiPace10Neo
| Weight | 2.87 lbs |
|---|---|
| Pumping Speed | 12 l/s |
| Ultimate Pressure | 5 x 10-5 mbar |
Pfeiffer Vacuum HiPace 10 Neo Turbomolecular Pump - NEW
Features include:
- The world's smallest series-production turbo pump
- A powerful, rugged turbo pump with a pumping speed of 10 l/s for N2
- DN 40 connection
- Integrated drive electronics with 24 V supply voltage
- Mobile usable
- Requires no additional cooling
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| I/O interfaces | RS485, remote |
| Sound pressure level (EN ISO 2151) | ≤ 50 dB(A) |
| Protection class | IP20 type 1 |
| Run-up time | 45 s |
| Ultimate pressure | 5 x 10-5 hPa(mbar) |
| Pumping speed for Ar | 13 l/s |
| Pumping speed for H2 | 4 l/s |
| Pumping speed for He | 6.5 l/s |
| Pumping speed for N2 | 12 l/s |
| Input voltage(s) | 24 V DC (±10%) |
| Compression ratio for Ar | 2.5 x 107 |
| Compression ratio for H2 | 3 x 102 |
| Compression ratio for He | 3 x 103 |
| Compression ratio for N2 | 3 x 106 |
| Forevacuum max. for N2 | 25 hPa (mbar) |
| Bearing | Ball bearing |
| Rotational speed ±2 % | 90,000 min-1 |
| Rotational speed variable | 50 – 100% |
| Mounting orientation | Arbitrary |

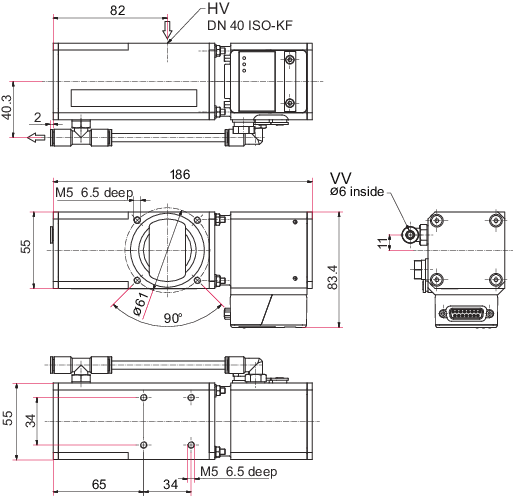

| Dimensions (Ø x H) | 83.4 x 55 x 186 mm |
| Weight | 1.3 kg |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum HiPace 10 Neo Turbomolecular Pump - NEW
(BUSCH P/N)
PMP05940 / PM P05 940 / 2000014185 HiPace 10 Neo TC 80, DN 40
