Pfeiffer HiPace 10 - NEW
| Weight |
3.97 lbs |
| Pumping Speed |
10 l/s |
| Ultimate Pressure |
< 5 x 10-5 mbar |
|---|

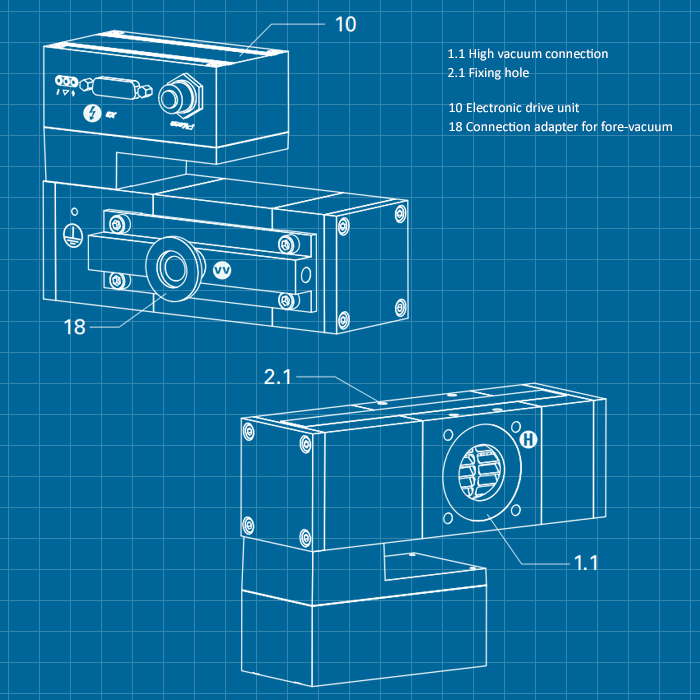

Pfeiffer Vacuum HiPace 10 Turbomolecular Pump - NEW
Features include:
- The small design makes for minimum footprint
- Integrated drive electronics, suitable for industrial environments - Protection class IP54
- Semi S2 and UL/CSA certification
- Maximum reliability through monitoring of operating data
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
HiPace 10
| Bearing |
Ball bearing |
| Compression ratio |
|
| Ar |
2.5 x 108 |
| H2 |
3 x 102 |
| He |
3 x 103 |
| N2 |
3 x 106 |
| Cooling method, standard |
Convection |
| Electronic drive unit |
w/ TC 110 |

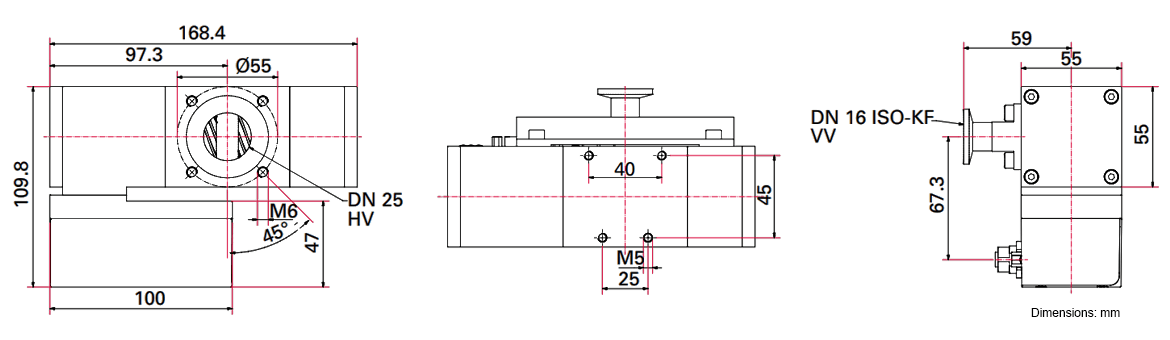

| Flange (in) |
DN 25 |
| Flange (out) |
DN 16 ISO-KF/G 1/4" |
| Forevacuum max. for N2 |
25 hPA / 18.75 Torr / 25 mbar |
| Gas throughput at full rotational speed |
|
| Ar |
0.37 hPa l/s / 0.28 Torr l/s / 0.37 mbar l/s |
| H2 |
2.78 hPa l/s / 2.08 Torr l/s / 2.78 mbar l/s |
| He |
0.48 hPa l/s / 0.36 Torr l/s / 0.48 mbar l/s |
| N2 |
0.37 hPa l/s / 0.28 Torr l/s / 0.37 mbar l/s |
| Interfaces |
RS-485, Remote |
| Mounting orientation |
Any |
| Operating voltage |
24 (± 5%) V DC |
| Permissible magnetic field max. |
3 mT |
| Protection category |
IP54 |
| Pumping speed |
| Ar |
11.5 l/s |
| H2 |
3.7 l/s |
| He |
6 l/s |
| N2 |
10 l/s |
| Rotation speed ± 2% |
90,000 rpm / 90,000 min-1 |
| Rotation speed variable |
50 - 100% |
| Run-up time |
0.9 min |
| Ult pressure (PNEUROP) |
< 5 x 10-5 hPa / < 3.75 x 10-5 Torr / < 5 x 10-5 mbar |
| Venting connection |
G1/8" |
| Weight |
1.8 kg / 3.97 lbs |
Specifications
| Type |
Label |
Description |
Download |
|
|
Pfeiffer HiPace 10 - NEW |
Operating Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum HiPace 10 Turbomolecular Pump - NEW
PMP03960 / PM P03 960 w/ TC 110 DN 25
PMP03961 / PM P03 961 w/ TC 110 & twisted connection DN 25
PMP03963 / PM P03 963 w/ TC 110 & power supply OPS 40 DN 25
