Pfeiffer HiPace 1800 - REBUILT
Call for Price
In stock
SKU
REBUILT_HiPace1800
| Weight | 82 lbs |
|---|---|
| Pumping Speed | 1450 l/s |
| Ultimate Pressure | 1 x 10-7 mbar |

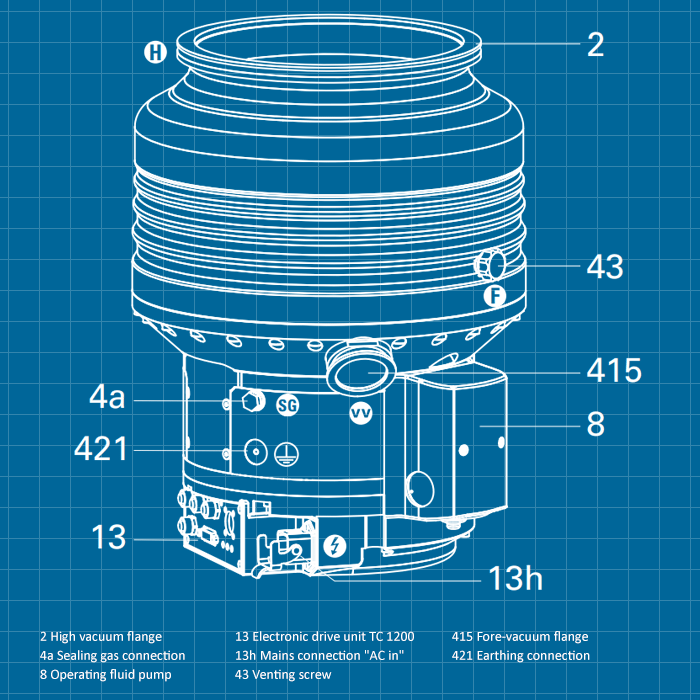

Pfeiffer Vacuum HiPace 1800 Turbomolecular Pump - REBUILT
Features include:
- High pumping speeds for both light and heavy gases
- High process integrity, resistant to particulate matter
- High gas throughputs, even for heavy gases
- Semi S2- and UL/CSA certification
- Maximum reliability through monitoring of operating data
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Bearing | Hybrid |
| Certification | Semi S2 compatible UL CSA TÜV |
| Compression ratio for Ar | > 1 · 108 |
| Compression ratio for H2 | 2 · 104 |
| Compression ratio for He | 3 · 105 |
| Compression ratio for N2 | > 1 · 108 |

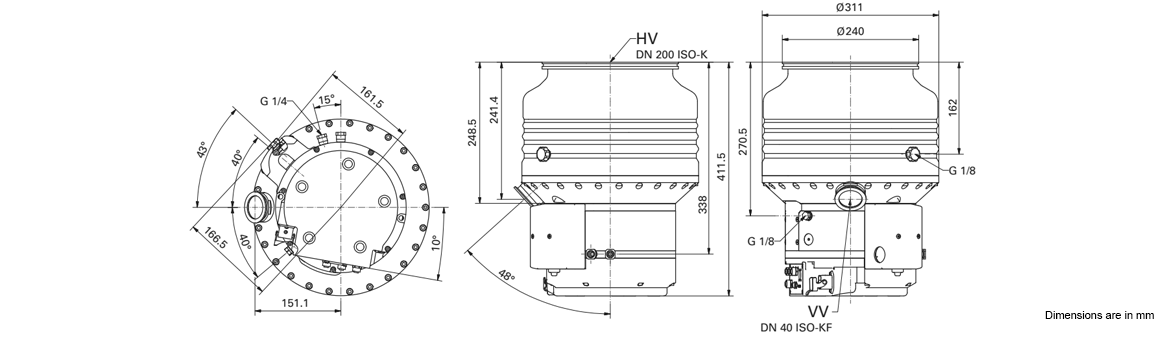

| Connection flange (in) | DN 200 ISO-K |
| Connection flange (out) | DN 40 ISO-KF |
| Cooling method | Water |
| Cooling water connection | G 1/4” |
| Cooling water flow | 100 l/h |
| Cooling water flow, max. | 100 l/h |
| Cooling water flow, min. | 100 l/h |
| Cooling water temperature | 15-35 °C | 59-95 °F | 288-308 K |
| Current, max. | 10 A |
| Electronic drive unit | TCP 1200 |
| Final pressure according to PNEUROP | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Final pressure without gas ballast | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| For electronic drive unit | TCP 1200 |
| Fore-vacuum max. for N2 | 1.6 hPa | 1.2 Torr | 1.6 mbar |
| Gas throughput at 0.1 hPa HV pressure for Ar | 21 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for H2 | 15 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for He | 27 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for N2 | 37 hPa·l/s |
| Gas throughput at final rotation speed for Ar | 8 hPa·l/s |
| Gas throughput at final rotation speed for H2 | 30 hPa·l/s | ||||||||
| Gas throughput at final rotation speed for He | 14 hPa·l/s | ||||||||
| Gas throughput at final rotation speed for N2 | 11 hPa·l/s | ||||||||
| Gas throughput for Ar | 8 hPa·l/s | ||||||||
| Gas throughput for H2 | > 30 hPa·l/s | ||||||||
| Gas throughput for He | 14 hPa·l/s | ||||||||
| Gas throughput for N2 | 11 hPa·l/s | ||||||||
| I/O interfaces | TCP 1200 | ||||||||
| Integrated power supply pack | NO | ||||||||
| Mounting orientation | 0° (HV flange top) – 90° | ||||||||
| Operating voltage: 50/60 Hz | 200 – 240
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs. Pfeiffer Vacuum HiPace 1800 Turbomolecular Pump - REBUILT PMP04070 / PM P04 070 TC 1200 DN 200 ISO-K PMP04071 / PM P04 071 TC 1200 DN 200 ISO-F PMP04073 / PM P04 073 TC 1200 DN 200 ISO-K upside down version PMP04074 / PM P04 074 TC 1200 DN 200 ISO-F upside down version PMP04076 / PM P04 076 TC 1200 DN 200 ISO-K corrosive PMP04077 / PM P04 077 TC 1200 DN 200 ISO-F corrosive PMP04078 / PM P04 078 TC 1200 DN 200 ISO-K upside down version corrosive PMP04079 / PM P04 079 TC 1200 DN 200 ISO-F upside down version corrosive PMP04130 / PM P04 130 TC 1200 Profibus DN 200 ISO-K PMP04131 / PM P04 131 TC 1200 Profibus DN 200 ISO-F PMP04133 / PM P04 133 TC 1200 Profibus DN 200 ISO-K upside down version PMP04134 / PM P04 134 TC 1200 Profibus DN 200 ISO-F upside down version PMP04136 / PM P04 136 TC 1200 Profibus DN 200 ISO-K corrosive PMP04137 / PM P04 137 TC 1200 Profibus DN 200 ISO-F corrosive PMP04138 / PM P04 138 TC 1200 Profibus DN 200 ISO-K upside down version corrosive PMP04139 / PM P04 139 TC 1200 Profibus DN 200 ISO-F upside down version corrosive
