Name: Pfeiffer HiPace 1800 - NEW
Brand: Pfeiffer
SKU: NEW_HiPace1800

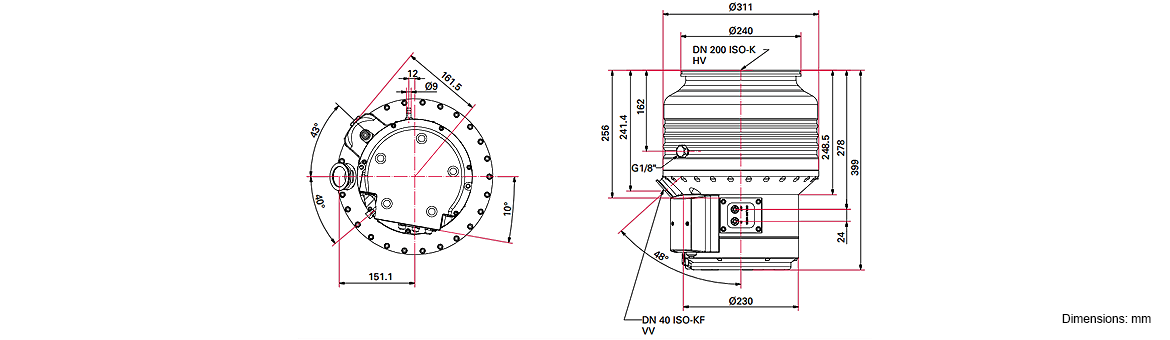

Dimensions

Description

Pfeiffer Vacuum HiPace 1800 Turbomolecular Pump - NEW

Features include:

High pumping speeds for both light and heavy gases
High process integrity, resistant to particulate matter
High gas throughputs, even for heavy gases

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Hybrid
Certification	Semi S2 compatible UL CSA TÜV
Compression ratio for Ar	> 1 x 10⁸
Compression ratio for H₂	2 x 10⁴
Compression ratio for He	3 x 10⁵
Compression ratio for N₂	> 1 x 10⁸
Connection flange (in)	DN 200 ISO-K
Connection flange (out)	DN 40 ISO-KF
Cooling method	Water
Cooling water connection	G 1/4”
Cooling water flow	100 l/h
Cooling water flow, max.	100 l/h
Cooling water flow, min.	100 l/h
Cooling water temperature	15-35 °C \| 59-95 °F \| 288-308 K
Current, max.	10 A
Electronic drive unit	TCP 1200
Final pressure according to PNEUROP	1 x 10^-7 hPa \| 7.5 x 10^-8 Torr \| 1 x 10^-7 mbar
Final pressure without gas ballast	1 x 10^-7 hPa \| 7.5 x 10^-8 Torr \| 1 x 10^-7 mbar
For electronic drive unit	TCP 1200
Fore-vacuum max. for N₂	1.6 hPa \| 1.2 Torr \| 1.6 mbar
Gas throughput at 0.1 hPa HV pressure for Ar	21 hPa·l/s
Gas throughput at 0.1 hPa HV pressure for H₂	15 hPa x l/s
Gas throughput at 0.1 hPa HV pressure for He	27 hPa x l/s
Gas throughput at 0.1 hPa HV pressure for N₂	37 hPa x l/s
Gas throughput at final rotation speed for Ar	8 hPa x l/s

Gas throughput at final rotation speed for H₂	30 hPa x l/s
Gas throughput at final rotation speed for He	14 hPa x l/s
Gas throughput at final rotation speed for N₂	11 hPa x l/s
Gas throughput for Ar	8 hPa x l/s
Gas throughput for H₂	> 30 hPa x l/s
Gas throughput for He	14 hPa x l/s
Gas throughput for N₂	11 hPa x l/s
I/O interfaces	TCP 1200
Integrated power supply pack	NO
Mounting orientation	0° (HV flange top) – 90°
Operating voltage: 50/60 Hz	200 – 240

Specifications

Digital Manuals

Type	Label	Description	Download
	Pfeiffer HiPace 1800 - NEW	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 1800 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP05205 / PM P05 205 / 2000014708  HiPace 1800  TCP 1200, DN 200 ISO-K, G 1/4"
PMP05206 / PM P05 206 / 2000014710  HiPace 1800  TCP 1200, DN 200 ISO-F, G 1/4"
PMP06200 / PM P06 200 / 2000014281  HiPace 1800  TC 1200, DN 200 ISO-K, G 1/8"
PMP06201 / PM P06 201 / 2000014284  HiPace 1800  TC 1200, DN 200 ISO-F, G 1/4"
PMP06203 / PM P06 203 / 2000014286  HiPace 1800  TC 1200, Profibus, DN 200 ISO-K, G 1/8"
PMP06204 / PM P06 204 / 2000014288  HiPace 1800  TC 1200, Profibus, DN 200 ISO-F, G 1/8"
PMP06206 / PM P06 206 / 2000014290  HiPace 1800  TC 1200, E74, DN 200 ISO-K
PMP06207 / PM P06 207 / 2000014292  HiPace 1800  TC 1200, E74, DN 200 ISO-F, G 1/4"
PMP06210 / PM P06 210 / 2000014294  HiPace 1800 U  TC 1200, DN 200 ISO-K, RS485
PMP06211 / PM P06 211 / 2000014296  HiPace 1800 U  TC 1200, DN 200 ISO-F, DN 40 ISO-KF
PMP06213 / PM P06 213 / 2000014298  HiPace 1800 U  TC 1200, Profibus, DN 200 ISO-K, G 1/8"
PMP06214 / PM P06 214 / 2000014300  HiPace 1800 U  TC 1200, Profibus, DN 200 ISO-F
PMP06216 / PM P06 216 / 2000014302  HiPace 1800 U  TC 1200, E74, DN 200 ISO-K, G 1/4"
PMP06217 / PM P06 217 / 2000014304  HiPace 1800 U  TC 1200, E74, DN 200 ISO-F, G 1/4"
PMP06220 / PM P06 220 / 2000014306  HiPace 1800 C  TC 1200, DN 200 ISO-K, corrosive
PMP06221 / PM P06 221 / 2000014308  HiPace 1800 C  TC 1200, DN 200 ISO-F, corrosive
PMP06223 / PM P06 223 / 2000014310  HiPace 1800 C  TC 1200, Profibus, DN 200 ISO-K, corrosive, G 1/8"
PMP06224 / PM P06 224 / 2000014312  HiPace 1800 C  TC 1200, Profibus, DN 200 ISO-F, corrosive, G 1/8"
PMP06226 / PM P06 226 / 2000014314  HiPace 1800 C  TC 1200, E74, DN 200 ISO-K, corrosive, DN 40
PMP06227 / PM P06 227 / 2000014316  HiPace 1800 C  TC 1200, E74, DN 200 ISO-F, corrosive, G 1/4"
PMP06230 / PM P06 230 / 2000014318  HiPace 1800 UC  TC 1200, DN 200 ISO-K, corrosive, G 1/8"
PMP06231 / PM P06 231 / 2000014320  HiPace 1800 UC  TC 1200, DN 200 ISO-F, corrosive, G 1/8"
PMP06233 / PM P06 233 / 2000014322  HiPace 1800 UC  TC 1200, Profibus, DN 200 ISO-K, corrosive, G 1/8"
PMP06234 / PM P06 234 / 2000014324  HiPace 1800 UC  TC 1200, Profibus, DN 200 ISO-F, corrosive, G 1/8"
PMP06236 / PM P06 236 / 2000014326  HiPace 1800 UC  TC 1200, E74, DN 200 ISO-K, G 1/4"
PMP06237 / PM P06 237 / 2000014328  HiPace 1800 UC  TC 1200, E74, DN 200 ISO-F, corrosive, G 1/4"
PMP04070 / PM P04 070               HiPace 1800  TC 1200, DN 200 ISO-K
PMP04071 / PM P04 071               HiPace 1800  TC 1200, DN 200 ISO-F
PMP04073 / PM P04 073               HiPace 1800  TC 1200, DN 200 ISO-K, upside down version
PMP04074 / PM P04 074               HiPace 1800  TC 1200, DN 200 ISO-F, upside down version
PMP04076 / PM P04 076               HiPace 1800  TC 1200, DN 200 ISO-K, corrosive
PMP04077 / PM P04 077               HiPace 1800  TC 1200, DN 200 ISO-F, corrosive
PMP04078 / PM P04 078               HiPace 1800  TC 1200, DN 200 ISO-K, upside down version corrosive
PMP04079 / PM P04 079               HiPace 1800  TC 1200, DN 200 ISO-F, upside down version corrosive
PMP04130 / PM P04 130               HiPace 1800  TC 1200, Profibus, DN 200 ISO-K
PMP04131 / PM P04 131               HiPace 1800  TC 1200, Profibus, DN 200 ISO-F
PMP04133 / PM P04 133               HiPace 1800  TC 1200, Profibus, DN 200 ISO-K, upside down version
PMP04134 / PM P04 134               HiPace 1800  TC 1200, Profibus, DN 200 ISO-F, upside down version
PMP04136 / PM P04 136               HiPace 1800  TC 1200, Profibus, DN 200 ISO-K, corrosive
PMP04137 / PM P04 137               HiPace 1800  TC 1200, Profibus, DN 200 ISO-F, corrosive
PMP04138 / PM P04 138               HiPace 1800  TC 1200, Profibus, DN 200 ISO-K, upside down version corrosive
PMP04139 / PM P04 139               HiPace 1800  TC 1200, Profibus, DN 200 ISO-F, upside down version corrosive

Weight	81.57 lbs
Pumping Speed	1,450 l/s
Ultimate Pressure	1 x 10^-7 mbar
