Name: Pfeiffer HiPace 2300 - NEW
Brand: Pfeiffer
SKU: NEW_HiPace2300

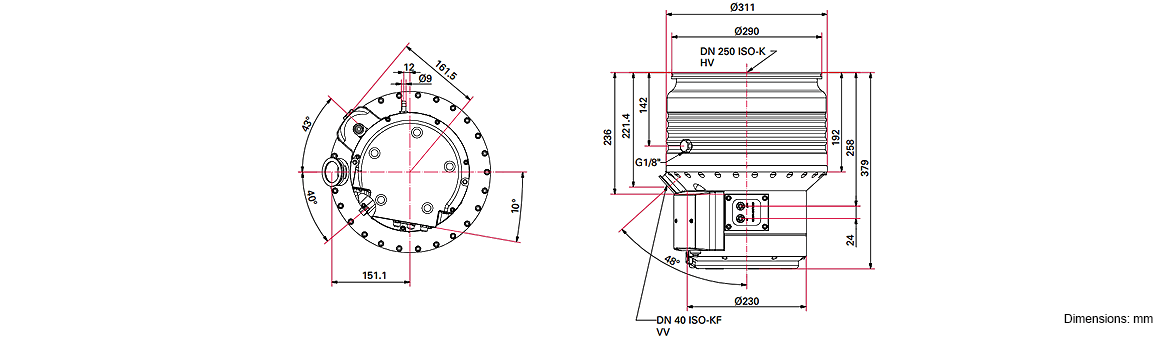

Dimensions

Description

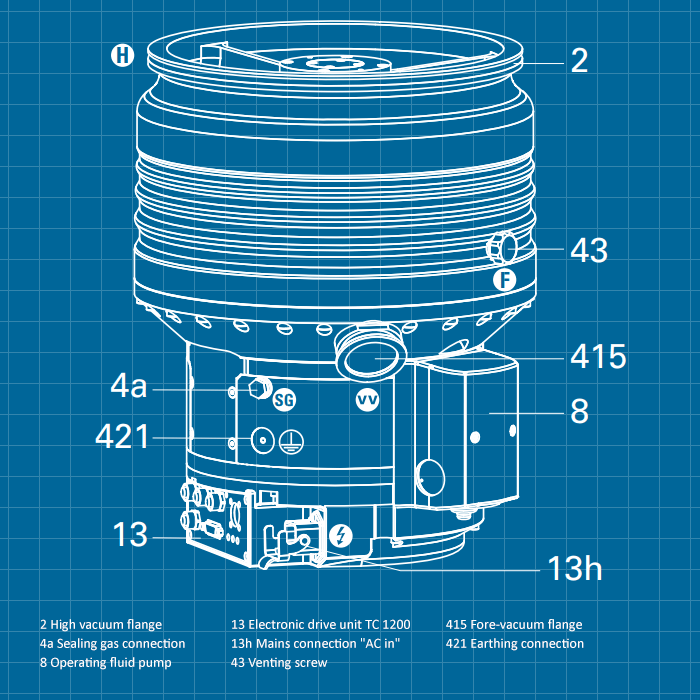

Pfeiffer Vacuum HiPace 2300 Turbomolecular Pump - NEW

Powerful turbopump with a pumping speed of up to 1,900 l/s for N2
DN 250 ISO-F flange
Integrated TC 1200 drive electronics with Profibus and power supply
Integrated sealing gas system with electric sealing gas valve 24 V DC
Cooling: Water cooling
Installation orientation: Standard (0° to 90°)
Protection Class: IP 54
Interfaces: Profibus, RS-485, Remote
Extensive accessories expand the range of applications

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Hybrid
Certification	Semi S2 compatible UL CSA TÜV
Compression ratio for Ar	> 1 x 10⁸
Compression ratio for CF₄	1 x 10⁸
Compression ratio for H₂	2 x 10⁴
Compression ratio for He	3 x 10⁵
Compression ratio for N₂	> 1 x 10⁸
Connection flange (in)	DN 250 ISO-K
Connection flange (out)	DN 40 ISO-KF
Cooling method	Water
Cooling water connection	G 1/4”
Cooling water flow	100 l/h
Cooling water flow, max.	100 l/h
Cooling water flow, min.	100 l/h
Cooling water temperature	15-35 °C \| 59-95 °F \| 288-308 K
Current, max.	10 A
Electronic drive unit	TCP 1200
Final pressure according to PNEUROP	< 1 x 10^-7 hPa \| < 7.5 x 10^-8 Torr \| < 1 x 10^-7 mbar
Final pressure without gas ballast	1 x 10^-7 hPa \| 7.5 x 10^-8 Torr \| 1 x 10^-7 mbar
For electronic drive unit	TCP 1200
Fore-vacuum max. for N₂	1.6 hPa \| 1.2 Torr \| 1.6 mbar
Gas throughput at 0.1 hPa HV pressure for Ar	34 hPa x l/s
Gas throughput at 0.1 hPa HV pressure for H₂	14 hPa x l/s
Gas throughput at 0.1 hPa HV pressure for He	26 hPa x l/s
Gas throughput at 0.1 hPa HV pressure for N₂	38 hPa x l/s
Gas throughput at final rotation speed for Ar	9 hPa x l/s
Gas throughput at final rotation speed for H₂	30 hPa x l/s
Gas throughput at final rotation speed for He	14 hPa x l/s
Gas throughput at final rotation speed for N₂	13 hPa x l/s
Gas throughput for Ar	9 hPa x l/s
Gas throughput for H₂	> 30 hPa x l/s
Gas throughput for He	14 hPa x l/s
Gas throughput for N₂	13 hPa x l/s
I/O interfaces	TCP 1200
Integrated power supply pack	NO
Mounting orientation	0° (HV flange top) – 90°
Operating voltage: 50/60 Hz	200 – 240

Specifications

Digital Manuals

Type	Label	Description	Download
	Pfeiffer HiPace 2300 - NEW	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 2300 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP05200 / PM P05 200 / 2000014697  HiPace 2300  TCP 1200, DN 250 ISO-K, G 1/4"
PMP05202 / PM P05 202 / 2000014702  HiPace 2300  TCP 1200, DN 250 CF-F, G 1/4"
PMP05203 / PM P05 203 / 2000014704  HiPace 2300  TCP 1200, DN 250 ISO-F, G 1/4"
PMP06300 / PM P06 300 / 2000014356  HiPace 2300  TC 1200, DN 250 ISO-K, G 1/8"
PMP06301 / PM P06 301 / 2000014359  HiPace 2300  TC 1200, DN 250 ISO-F, RS485
PMP06302 / PM P06 302 / 2000014361  HiPace 2300  TC 1200, DN 250 CF-F, G 1/8"
PMP06303 / PM P06 303 / 2000014364  HiPace 2300  TC 1200, Profibus, DN 250 ISO-K, DN 40
PMP06304 / PM P06 304 / 2000014367  HiPace 2300  TC 1200, Profibus, DN 250 ISO-F
PMP06305 / PM P06 305 / 2000014370  HiPace 2300  TC 1200, Profibus, DN 250 CF-F, G 1/4"
PMP06306 / PM P06 306 / 2000014373  HiPace 2300  TC 1200, E74, DN 250 ISO-K, G 1/4"
PMP06307 / PM P06 307 / 2000014375  HiPace 2300  TC 1200, E74, DN 250 ISO-F, G 1/4"
PMP06308 / PM P06 308 / 2000014377  HiPace 2300  TC 1200, E74, DN 250 CF-F, G 1/4"
PMP06310 / PM P06 310 / 2000014379  HiPace 2300 U  TC 1200, DN 250 ISO-K
PMP06311 / PM P06 311 / 2000014381  HiPace 2300 U  TC 1200, DN 250 ISO-F, G 1/8"
PMP06312 / PM P06 312 / 2000014384  HiPace 2300 U  TC 1200, DN 250 CF-F, G 1/8"
PMP06313 / PM P06 313 / 2000014386  HiPace 2300 U  TC 1200, Profibus, DN 250 ISO-K, G 1/4"
PMP06314 / PM P06 314 / 2000014389  HiPace 2300 U  TC 1200, Profibus, DN 250 ISO-F, G 1/4"
PMP06315 / PM P06 315 / 2000014392  HiPace 2300 U  TC 1200, Profibus, DN 250 CF-F, G 1/8"
PMP06316 / PM P06 316 / 2000014394  HiPace 2300 U  TC 1200, E74, DN 250 ISO-K, G 1/4"
PMP06317 / PM P06 317 / 2000014396  HiPace 2300 U  TC 1200, E74, DN 250 ISO-F, G 1/4"
PMP06318 / PM P06 318 / 2000014398  HiPace 2300 U  TC 1200, E74, DN 250 CF-F, G 1/4"
PMP06320 / PM P06 320 / 2000014400  HiPace 2300 C  TC 1200, DN 250 ISO-K, corrosive, 50/60 Hz
PMP06321 / PM P06 321 / 2000014402  HiPace 2300 C  TC 1200, DN 250 ISO-F, corrosive, G 1/4"
PMP06322 / PM P06 322 / 2000014404  HiPace 2300 C  TC 1200, DN 250 CF-F, corrosive, G 1/4"
PMP06323 / PM P06 323 / 2000014406  HiPace 2300 C  TC 1200, Profibus, DN 250 ISO-K, corrosive, G 1/8"
PMP06324 / PM P06 324 / 2000014409  HiPace 2300 C  TC 1200, Profibus, DN 250 ISO-F, corrosive, G 1/8"
PMP06325 / PM P06 325 / 2000014411  HiPace 2300 C  TC 1200, Profibus, DN 250 CF-F, corrosive, G 1/8"
PMP06326 / PM P06 326 / 2000014413  HiPace 2300 C  TC 1200, E74, DN 250 ISO-K, corrosive
PMP06327 / PM P06 327 / 2000014415  HiPace 2300 C  TC 1200, E74, DN 250 ISO-F, corrosive, G 1/4"
PMP06328 / PM P06 328 / 2000014417  HiPace 2300 C  TC 1200, E74, DN 250 CF-F, corrosive, G 1/4"
PMP06330 / PM P06 330 / 2000014419  HiPace 2300 UC  TC 1200, DN 250 ISO-K, corrosive, G 1/4"
PMP06331 / PM P06 331 / 2000014421  HiPace 2300 UC  TC 1200, DN 250 ISO-F, corrosive, G 1/4"
PMP06332 / PM P06 332 / 2000014423  HiPace 2300 UC  TC 1200, DN 250 CF-F, corrosive, RS485
PMP06333 / PM P06 333 / 2000014425  HiPace 2300 UC  TC 1200, Profibus, DN 250 ISO-K, corrosive, G 1/8"
PMP06334 / PM P06 334 / 2000014428  HiPace 2300 UC  TC 1200, Profibus, DN 250 ISO-F, corrosive, G 1/8"
PMP06335 / PM P06 335 / 2000014431  HiPace 2300 UC  TC 1200, Profibus, DN 250 CF-F, corrosive, G 1/8"
PMP06336 / PM P06 336 / 2000014433  HiPace 2300 UC  TC 1200, E74, DN 250 ISO-K, corrosive, G 1/8"
PMP06337 / PM P06 337 / 2000014435  HiPace 2300 UC  TC 1200, E74, DN 250 ISO-F, corrosive, G 1/8"
PMP06338 / PM P06 338 / 2000014437  HiPace 2300 UC  TC 1200, E74, DN 250 CF-F, corrosive, G 1/8"
PMP03920 / PM P03 920               HiPace 2300  TC 1200, DN 250 ISO-K
PMP03922 / PM P03 922               HiPace 2300  TC 1200, DN 250 CF-F
PMP03921 / PM P03 921               HiPace 2300  TC 1200, DN 250 ISO-F
PMP04140 / PM P04 140               HiPace 2300  TC 1200, Profibus, DN 250 ISO-K
PMP04142 / PM P04 142               HiPace 2300  TC 1200, Profibus, DN 250 CF-F
PMP04141 / PM P04 141               HiPace 2300  TC 1200, Profibus, DN 250 ISO-F
PMP03923 / PM P03 923               HiPace 2300  TC 1200, DN 250 ISO-K, upside down
PMP03925 / PM P03 925               HiPace 2300  TC 1200, DN 250 CF-F, upside down
PMP03924 / PM P03 924               HiPace 2300  TC 1200, DN 250 ISO-F, upside down
PMP03926 / PM P03 926               HiPace 2300  TC 1200, DN 250 ISO-K, corrosive
PMP04194 / PM P04 194               HiPace 2300  TC 1200, DN 250 CF-F, corrosive
PMP03927 / PM P03 927               HiPace 2300  TC 1200, DN 250 ISO-F, corrosive
PMP03928 / PM P03 928               HiPace 2300  TC 1200, DN 250 ISO-K, upside down corrosive
PMP04195 / PM P04 195               HiPace 2300  TC 1200, DN 250 CF-F, upside down corrosive
PMP03929 / PM P03 929               HiPace 2300  TC 1200, DN 250 ISO-F, upside down corrosive
PMP04143 / PM P04 143               HiPace 2300  TC 1200, Profibus, DN 250 ISO-K, upside down
PMP04145 / PM P04 145               HiPace 2300  TC 1200, Profibus, DN 250 CF-F, upside down
PMP04144 / PM P04 144               HiPace 2300  TC 1200, Profibus, DN 250 ISO-F, upside down
PMP04146 / PM P04 146               HiPace 2300  TC 1200, Profibus, DN 250 ISO-K, corrosive
PMP04200 / PM P04 200               HiPace 2300  TC 1200, Profibus, DN 250 CF-F, corrosive
PMP04147 / PM P04 147               HiPace 2300  TC 1200, Profibus, DN 250 ISO-F, corrosive
PMP04148 / PM P04 148               HiPace 2300  TC 1200, Profibus, DN 250 ISO-K, upside down corrosive
PMP04201 / PM P04 201               HiPace 2300  TC 1200, Profibus, DN 250 CF-F, upside down corrosive
PMP04149 / PM P04 149               HiPace 2300  TC 1200, Profibus, DN 250 ISO-F, upside down corrosive

Weight	79.37 lbs
Pumping Speed	1,900 l/s
Ultimate Pressure	1 x 10^-7 mbar
