Pfeiffer HiPace 60 P - NEW
Call for Price
In stock
SKU
NEW_HiPace60P
| Weight | 4.85 lbs |
|---|---|
| Pumping Speed | 64 l/s |
| Ultimate Pressure | < 1 x 10-6 mbar |

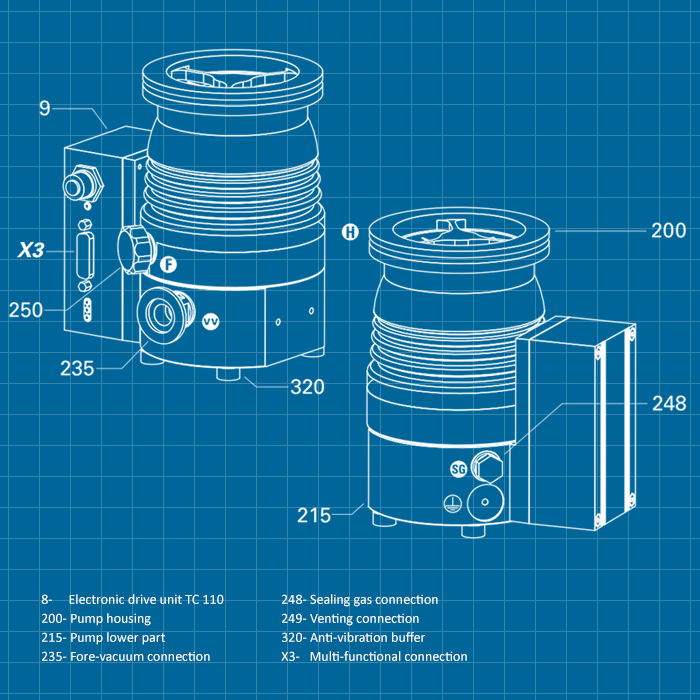

Pfeiffer Vacuum HiPace 60 P Turbomolecular Pump - NEW
Small yet powerful turbo molecular pump without Holweck-stage with a pumping speed of up to 64 l/s for N2
Features include:
- The small design makes for minimum footprint
- Integrated drive electronics, suitable for industrial environments - Protection class IP54
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Bearing | Hybrid |
| Compression ratio | |
| Ar | 2 x 106 |
| H2 | 2 x 102 |
| He | 3.5 x 102 |
| N2 | 1 x 106 |
| Cooling method, optional | Air / water |
| Cooling method, standard | Convection |
| Cooling water consumption | 75 l/h |
| Cooling water temp. | 5-25°C / 41-77°F / 278-298°K |
| Current max. | 4.6 A |
| Electronic drive unit | TC 110 |

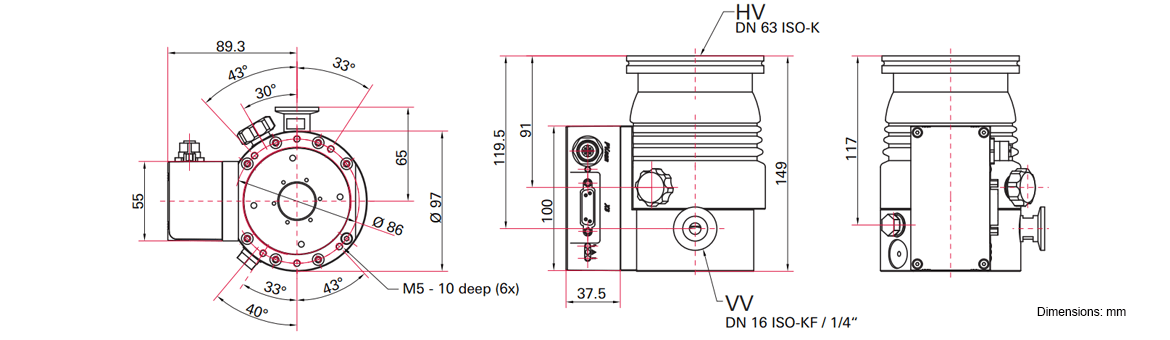

| Flange (in) | DN 63 ISO-K |
| Flange (out) | DN 16 ISO-KF/G 1/4" |
| Forevacuum max. for N2 | 4 hPA / 3 Torr / 4 mbar |
| Gas throughput at full rotational speed | |
| Ar | 0.83 hPa l/s |
| H2 | 55 hPa l/s |
| He | 55 hPa l/s |
| N2 | 9.2 hPa l/s |
| I/O interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage | 24 (± 5%) V DC |
| Permissible magnetic field max. | 4 mT |
| Power consumption max. | 110 W |
| Protection category | IP54 |
| Pumping speed | |
| Ar | 63 l/s |
| H2 | 28 l/s |
| He | 48 l/s |
| N2 | 64 l/s |
| Rotation speed ± 2% | 90,000 rpm / 90,000 min-1 |
| Rotation speed variable | 50 - 100% |
| Run-up time | 1 min |
| Sound pressure level | ≤ 48 dB(A) |
| Ultimate pressure (PNEUROP) | < 1 x 10-6 hPa / < 7.5 x 10-7 Torr / < 1 x 10-6 mbar |
| Ultimate pressure w/out gas ballast | 1 x 10-7 hPa / 7.5 x 10-8 Torr / 1 x 10-6 mbar |
| Venting connection | G1/8" |
| Weight | 2.2 kg / 4.85 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer HiPace 60 P - NEW | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum HiPace 60 P Turbomolecular Pump - NEW PMP04000 / PM P04 000 w/ TC 110 DN 63 ISO-K RS-485, remote PMP04693 / PM P04 693 w/ TC 110 RS DN 63 ISO-K RS-485, remote
